Parts Required
1. Cable ties.
2. Cabling labels.
3. Technical Bulletins
Each Essential Edition - PARTNER® Version software release is normally accompanied by a Technical Bulletin detailing
special installation requirements, known issues, etc. Various software releases and their associated Technical Bulletins
can also be obtained from http://support.avaya.com.

3.2.6 Cabling and Cables

The Essential Edition - PARTNER® Version system is designed primarily for use within an RJ45 structured cabling system
using CAT3 unshielded twisted-pair (UTP) cabling and RJ45 sockets.

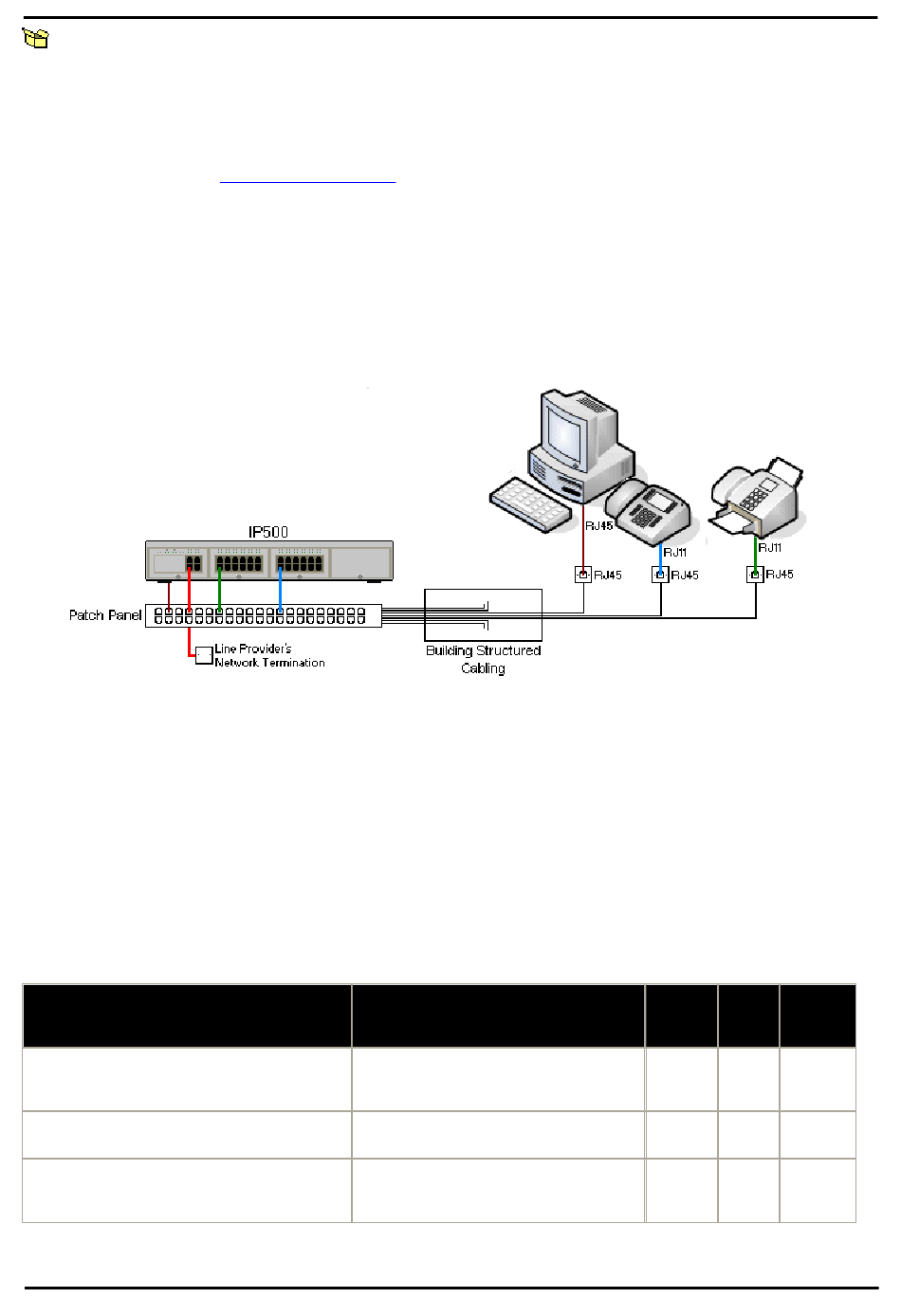

A structured cabling system is one where cables are run from a central RJ45 patch panel in the communications/data
room to individual RJ45 sockets at user's desk. All wires in each cable between the patch panel and the desk socket are
connected straight through. This arrangement allows devices connected at the patch panel to be swapped to match the
type of device that needs to be connected at the user socket. For example, making one user socket a phone port and
another user socket a computer LAN port, without requiring any rewiring of the cables in between.
· Traditional IDC Punchdown Wiring Installations
Where necessary, the far end RJ45 plug can be stripped from IP Office cables and wired into traditional wiring systems
using punch-block connectors. This type of installation should be performed by an experienced wiring technician.
· Trunk Connections
The majority of IP Office trunk ports use RJ45 connectors for acceptance of an RJ45-to-RJ45 cable. However,
connection at the line providers end may require use of a different plug type in order to match the line providers
equipment.
· RJ11 Phone Connectors
Many phones use RJ11 sockets and are supplied with RJ11-to-RJ11 cables. RJ11 plugs can be inserted into RJ45
sockets and in many case the connection will work. However this is not recommended or supported as the connection
lock is not truly positive and may become disconnected. An RJ45-to-RJ11 cable is available for these connections.
Standard IP Office Cables
The following are Avaya standard cables available for use with IP Office systems. The maximum length is applicable if the
standard Avaya cable is replaced with an alternative cable.
Cable
9-Way DTE Cable
Structured Cabling DS Line Cable
PRI Trunk Cable
PARTNER® Version, Installation and Reference Manual
IP Office Essential Edition
Description
Connects to control unit RS232 DTE port.
9-Way D-type plug to 9-way D-type
socket.
Connects from RJ45 sockets to RJ11
socketed DS and analog phones.
Connects PRI trunk ports to the line
providers network termination point. RJ45
to RJ45. Red.
Part Standa Maximu
number rd m Length
Length
– 2m/6'6'' 2m/6'6''.
.
7000478 4m/13'2 See table
71 ''. below.
7002134 3m/9'10 –
40 ''.
