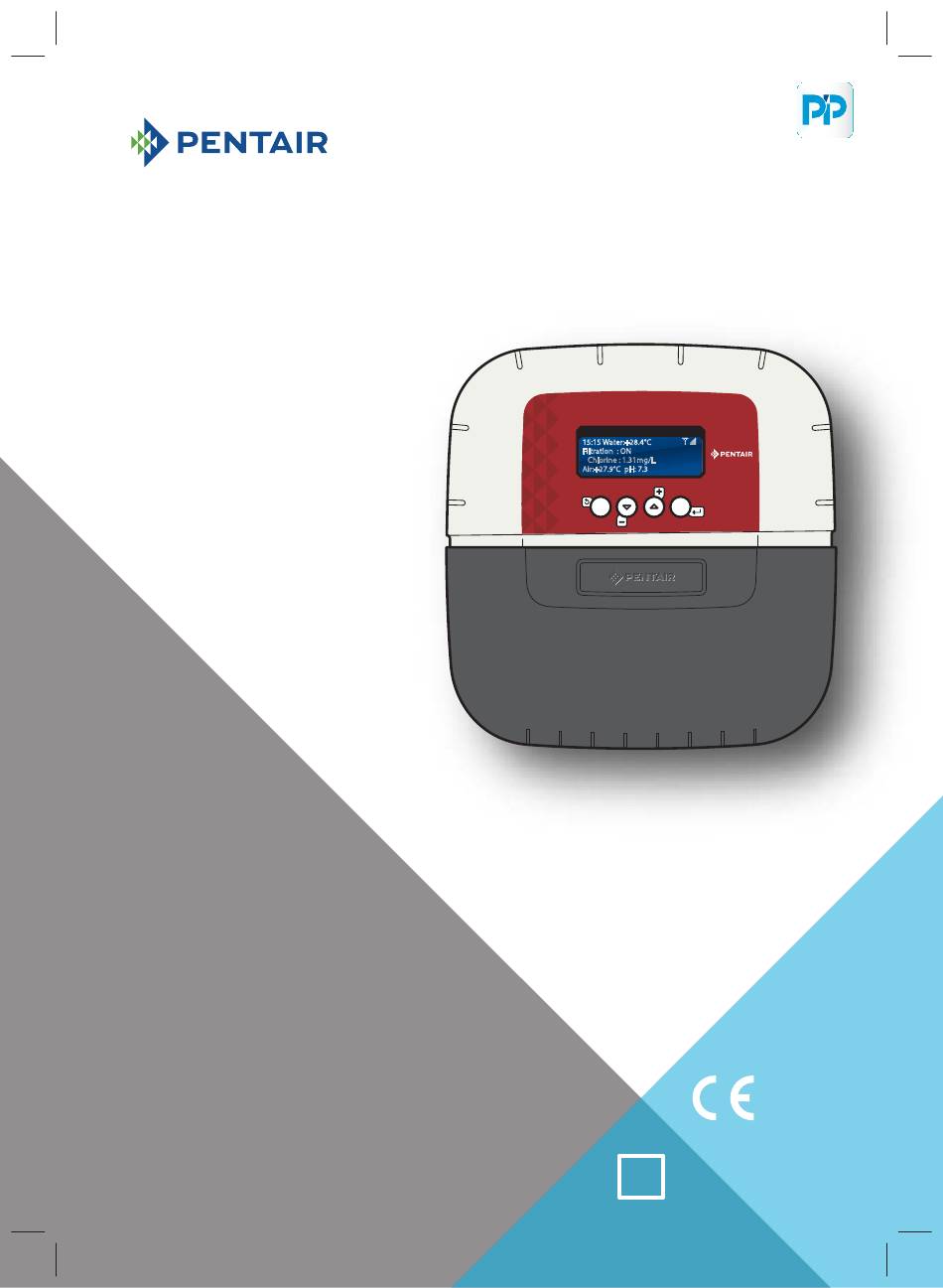

SOLEO
CL
®
INSTALLATION AND USER GUIDE
IMPORTANT SAFETY INSTRUCTIONS,
READ AND FOLLOW ALL OF THE INSTRUCTIONS,
KEEP THESE INSTRUCTIONS
PENTAIR WATER SOLUTIONS
SB-CU-IMP-056C
(Rev. 03/2019)
SOLEO
CHLORINE
®
F I LT R AT I O N ,
P H
&
O R P
15:15 Water:+28.4°C
Filtration : ON
Chlorine : 1.31mg/L
Air:+27.9°C pH: 7.3
ESC
VALID
SB-PF-SOL-004C
EN

Advertisement

loading

Related Manuals for Pentair SOLEO CL

Summary of Contents for Pentair SOLEO CL

  • Page 1 & O R P 15:15 Water:+28.4°C Filtration : ON Chlorine : 1.31mg/L Air:+27.9°C pH: 7.3 VALID SB-PF-SOL-004C INSTALLATION AND USER GUIDE IMPORTANT SAFETY INSTRUCTIONS, READ AND FOLLOW ALL OF THE INSTRUCTIONS, KEEP THESE INSTRUCTIONS PENTAIR WATER SOLUTIONS SB-CU-IMP-056C (Rev. 03/2019)
  • Page 2 Pentair. Those names and brands may be the trademarks or the registered trademarks of...
  • Page 3 Summary PRESENTATION > Safety instructions p 03 > Content of packaging p 04 > Description, general operation and functions of the device p 05 INSTALLATION - SPECIFIC POINTS > Installation organisation p 07 > Mounting p 08 > Electrical installation p 09 >...
  • Page 4 IMPORTANT SAFETY GUIDELINES, READ AND FOLLOW ALL OF THE INSTRUCTIONS, KEEP THESE INSTRUCTIONS GENERAL POINTS - DANGER - INSTALLERS, POOL SPECIALISTS AND OWNERS MUST CAREFULLY READ THESE WARNINGS AND ALL INSTRUCTIONS BEFORE USING THIS PRODUCT. - WARNING - Most countries regulate the construction, installation and operation of public swimming pools and spas, and the construction of residential pools and spas.
  • Page 5 - DANGER - DO NOT LET CHILDREN OPERATE THIS EQUIPMENT. - WARNING – Strictly respect the safety and handling procedures from the acid manufacturers, including protective measures for hands, body and eyes during transfer and use of acid. Follow the prescribed safety precautions for handling muriatic acid intended for checking the water pH. Muriatic acid may cause serious physical harm and may damage the swimming pool equipment.

  • Page 6: Front View

    For mounting the water temperature probe CABLE GLANDS x 2 Screw thread: 1/2 inch The 2 cable glands are compatible with 1/2’’ threading for assembly on a bypass. However Pentair advises installing the pH and RedOx probes in a probe holder.
  • Page 7 Please do not use the individual automations of the equipment. SOLEO CL will start/stop the devices. If SOLEO CL is linked to a SPEEDEO, the activation duration of the filter is managed by SOLEO CL, while the VS pump speeds are managed by SPEEDEO (depending on the events).
  • Page 8 The installation of the chlorine probe holder is described in its own operating instructions. To prevent the probe holder being obstructed, installing a pre-filter upstream is necessary. However SOLEO CL is supplied with 2 probe holders intended for clamp saddles, ensuring quick installation.
  • Page 9 General diagram (without Speedeo) SOLEO CHLORINE ® F I LT R AT I O N , & O R P 28/04/2017 15:23:48 Water temp. :+29.0°C pH:7.8 ORP: 607mV Cond:5264uS 3.28 g/l VALID pH/ORP Amperometric Flow switch T° pH +/- General diagram (with Speedeo) SPEEDEO SOLEO CHLORINE...
  • Page 10 2 - Place the 2 lower screws. 3 - Add the 2 lower screw covers to ensure a full seal. Basis for settings in an existing installation The 3-position switch is SOLEO CL is connected to a FILTRATION SOLEO CHLORINE kept.
  • Page 11 Electrical connections regulation - The device must be installed by a qualified technician according to valid local regulation - This device is permanently connected. - The power supply to the device is cut by its interrupter, which must be close and must remain accessible at all times.
  • Page 12 Water and air temperature probes. SOLEO CL is supplied with a temperature probe which will be assigned to the water. It is possible to mount a second temperature probe for the air temperature used to manage the frost protection process of heated technical rooms.
  • Page 13 4 - Tighten using a 2.5 mm/0.5-0.6 Nm slotted screwdriver 5 - Securely re-tighten the strain relief bushing by hand Only Pentair probes are compatible and guarantee proper functioning of the device. Connection of the amperometric probe and flow detector...
  • Page 14 CALIBRATION MODE - Calibration of the chlorine probe on the SOLEO CL. The chlorine probe must be calibrated as soon as the value is different from the value imposed by valid legislation (DPD1 test). Calibrating the chlorine probe is therefore voluntary correction of the value.
  • Page 15 Filtration - connection and settings If SOLEO CL is linked to a SPEEDEO, the SOLEO CL filtration outlet is only supplied with power when SPEEDEO starts the VS pump (whatever the speed). This SOLEO CL filtration outlet can for example be used to supply a UV light.
  • Page 16 Filtration - Expert menu - Secured Install menu (on the main menu, press Esc and Valid at the same time for 3 secs. A star appears in the top right corner of the home screen). This menu, active for 15 min., makes it possible to access the more sensitive functions which are set when the device is put into service.
  • Page 17 Assisted backwash: Backwash support for the filter on the 6-way valve. SOLEO CL supports you in backwashing the filter by chronologically proposing the different required steps. Welcome menu > filtration menu: On the Filter washing sub-menu, enter the desired washing period (factory pre-set at - M a n u a l B a ck was h 70 secs) and enter the desired rinsing duration (factory pre-set at 20 secs).
  • Page 18 To prevent any acid or chlorine being added without any water flow, securing the operation of SOLEO CL by connecting a flow switch after the filtration pump is necessary. SOLEO CL will only start the pH or disinfectant control (never at the same time) if the contact of this flow rate detector is closed.
  • Page 19 Connection and configuration of a 230-V dosing pump for disinfectant at the disinfection outlet. The disinfection outlet is valid for any type of disinfection. It is a dry contact and does not supply any voltage. 1 - Connect the cables in accordance with the diagram. 2 –Select AUTO in the sub-menu Disinfectant/Mode so that the dosing pump supplies the disinfectant until the set value is reached.
  • Page 20 Connection and configuring a 220 V pH corrector injection pump. The pH pump outlet is a dry contact and does not supply any voltage. 1 - Connect the cables in accordance with the diagram. 2 -In the pH/Mode sub-menu, select AUTO so that the dosing pump supplies the pH corrector until the set value is reached.
  • Page 21 This menu can only be accessed at SOLEO. The default radio channel is Channel 01 (same for SPEEDEO). The devices have a range of 30 m. A SOLEO CL and a SPEEDEO set on the same radio channel and at a distance of less than 30 m will automatically be paired.
  • Page 22 -H ou r : 16 h M inu te : 03 m in . Information menu This menu makes it possible to find the SOLEO CL and OS version. Welcome menu > Information menu: S O LE O C H LO R E OS version Ver s i on : X .
  • Page 23 Navigation menus (1/2) Filtration Filtration: AUTO, SHOCK, TIMER, OFF, ON Start: 07:00 End: Auto mode: Eco, Normal, Turbo ORP priority: ON, OFF Frost prevention: +3 °C Algorithm: t=T VS, BlueVS, T/2Cla, BluCla Eco mode: -30% Turbo mode: +30% Flow switch: YES, NO Filter washing Manual washing: 'Valid' to start washing Washing: 70 secs...
  • Page 24 Navigation menus (2/2) Setting the time Time: 7 hours Minute: 45 min. Calibration Temp. Water: 25.1 °C Temp. air: 27.8 °C pH: 7.0, pH 4.0 Disinfect. : 1.2 mg/L (Mode Sonde CHLORE, BROME, PEROXYDE) Information Firmware version Cl coef: 0.5 (Cl probe calibration coef: 1.0 = ideal) Current: 10 mA (current of the Cl probe: 4 mA = 0 mg/L, 20 mA = 10 mg/L) Languages LANGUAGE: FRANCAIS, ENGLISH...
  • Page 25 MAINTENANCE - Cleaning of the pH or ORP probe. Deposition of scale or suspended elements in the pool may occur. The probes are fragile measuring parts, they need to be carefully cleaned. In particular, do not scratch the platinised surfaces of the electrodes of the conductivity probe. Physical cleaning of the probe if there is an object present in the protective cage: Depending on the probe environment, organisms may grow and disrupt the measurement.
  • Page 26 How to update the internal firmware 1.1 - Unzip the MAJ-Soleo_CL8_vXX.zip file to obtain the Soleo_cl.bin file. recognised 1.2 - Copy the soleo.bin file to the main folder of the USB stick format- ted in FAT 16 or FAT 32. 2.1 - Remove the soft cover, then remove the orange cover SOLEO CHLORINE...
  • Page 27 Variations in the RedOx (ORP) according to the pH and the chlorine rate in water without a stabiliser at a temperature of 18°C.
