Technical Information

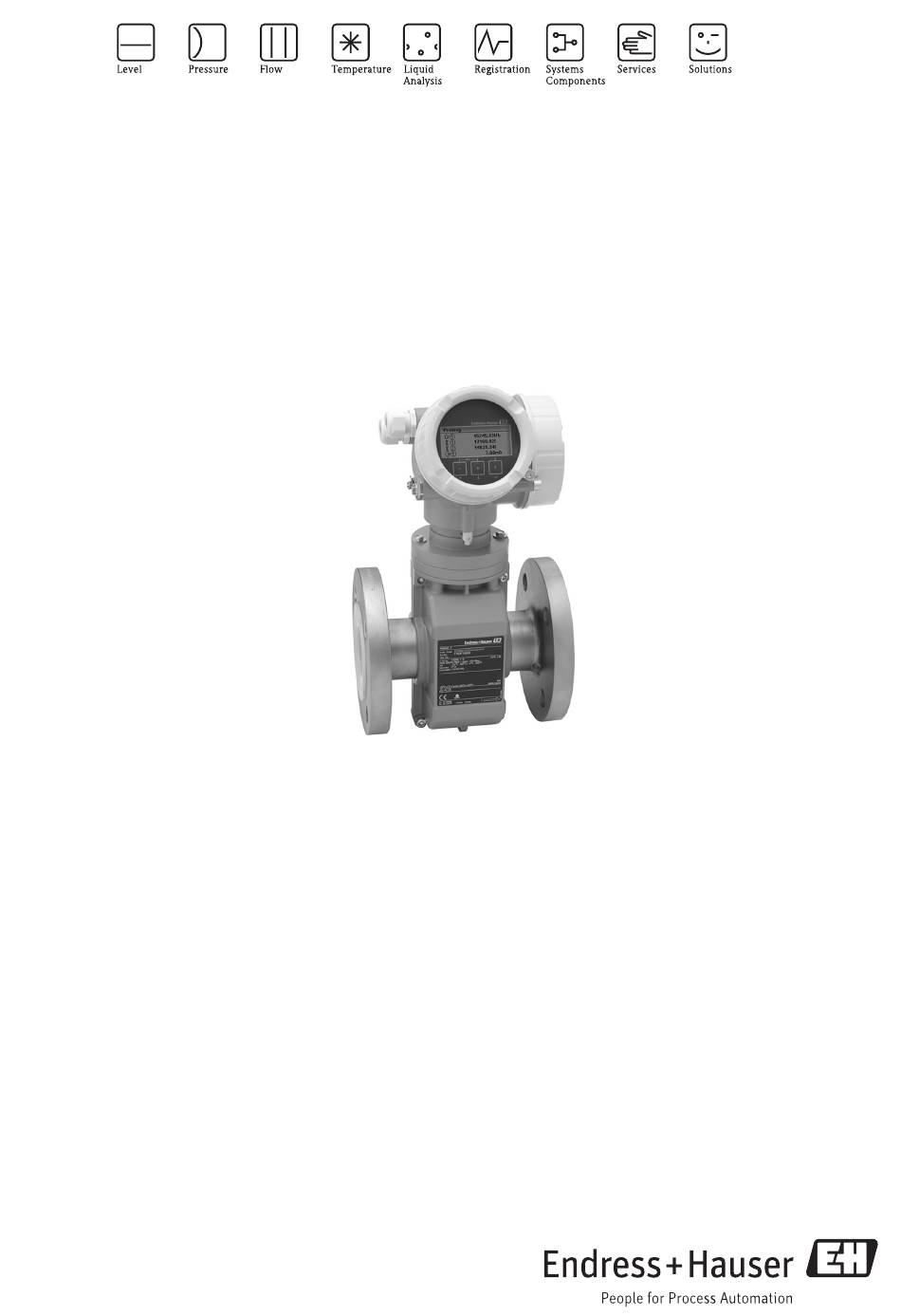

Proline Promag P 200
Electromagnetic flow measuring system
The device with genuine two-wire technology and for minimized
cost of ownership
Application
• Accurate bidirectional measurement of liquids with a
minimum conductivity of ³ 20 mS/cm for chemical
applications.
• The electromagnetic measuring principle is unaffected
by pressure and temperature. Additionally the flow
profile has a minimal effect on the measurement
results.
Device properties
• Medium temperature: max. +150 °C (+302 °F)
• Nominal diameter: DN 15 to 200 (1/2 to 8")
• Application-specific liner (PFA, PTFE)
• Two-wire aluminium transmitter
• Graphical local display with operation from the outside
(Touch Control)
• Communication via 4-20 mA HART
• Ex approvals accepted worldwide: ATEX, IECEx
cCSAus (intrinsic safety or flameproof enclosure)
TI01062D/06/EN/01.12
71185911
Your benefits
Genuine loop-powered technology for seamless 2-wire
integration and robustness in standard process
applications
Sizing - correct product selection
Applicator - the reliable, easy-to-use tool for selecting and
sizing measuring devices for every application
Installation - simple and efficient
• Compact design
• Suitable for installations in the hazardous area
• Reduced wiring effort due to two-wire technology
Commissioning - reliable and intuitive
Guided parameterization - "Make-it-run" wizards
Operation - increased measurement availability
• Measurement of volume flow
• No pressure loss, no moving parts, immune to
vibrations
• Diagnostics; Automatic data restore by HistoROM
Cost-effective Life Cycle Management by W@M
Advertisement
Table of Contents
Related Manuals for Endress+Hauser Proline Promag P 200
Summary of Contents for Endress+Hauser Proline Promag P 200
-
Page 1: Technical Information
Technical Information Proline Promag P 200 Electromagnetic flow measuring system The device with genuine two-wire technology and for minimized cost of ownership Application Your benefits • Accurate bidirectional measurement of liquids with a Genuine loop-powered technology for seamless 2-wire minimum conductivity of ³ 20 mS/cm for chemical integration and robustness in standard process applications. -
Page 2: Table Of Contents
Table of contents Proline Promag P 200 Table of contents Document information ......3 Process ........22 Symbols used . -
Page 3: Document Information
Proline Promag P 200 Document information Symbols used Electrical symbols Symbol Meaning Direct current A terminal to which DC voltage is applied or through which direct current flows. A0011197 Alternating current A terminal to which alternating voltage is applied or through which alternating current flows. -
Page 4: Function And System Design
Proline Promag P 200 Symbol Meaning Hazardous area Indicates a hazardous area. A0011187 Safe area (non-hazardous area) Indicates a non-hazardous area. A0011188 Function and system design Measuring principle Following Faraday's law of magnetic induction, a voltage is induced in a conductor moving through a magnetic field. -
Page 5: Measuring System
Proline Promag P 200 Measuring system The device consists of a transmitter and a sensor. One device version is available: compact version, transmitter and sensor form a mechanical unit. Transmitter Promag 200 Materials: Aluminum coating AlSi10Mg Configuration: • External operation via four-line, illuminated local display with touch control and guided menus ("Make-it-run"... -
Page 6: Operable Flow Range
Proline Promag P 200 Nominal Recommended Factory settings diameter flow Full scale value current min./max. full scale value Pulse value Low flow cut off output (v ~ 0.310 m/s/ (v ~ 0.04 m/s) (~ 2 pulse/s) (v ~ 2.5 m/s) -
Page 7: Signal On Alarm
Proline Promag P 200 Pulse/frequency/switch output Function Can be set to pulse, frequency or switch output Version Passive, open collector Maximum input values • DC 35 V • 50 mA For information on the Ex connection values (® ä 9) Voltage drop •... -
Page 8: Load
Proline Promag P 200 Pulse/frequency/switch output Pulse output Failure mode Choose from: • Actual value • No pulses Frequency output Failure mode Choose from: • Actual value • Defined value:0 to 1 250 Hz • 0 Hz Switch output Failure mode Choose from: •... -
Page 9: Ex Connection Data
Proline Promag P 200 R [ ] U [V] A0013563 Operating range 1.1 For order code for "Output", option A "4-20 mA HART"/option B "4-20 mA HART, pulse/frequency/switch output" with Ex i 1.2 For order code for "Output", option A "4-20 mA HART"/option B "4-20 mA HART, pulse/frequency/switch output"... -
Page 10: Low Flow Cut Off
Proline Promag P 200 Intrinsically safe values Type of protection Ex ia Order code for Output type Intrinsically safe values "Output" Option A 4-20 mA HART = DC 30 V = 300 mA = 1 W = 0 mH = 5 nF... -
Page 11: Power Supply
Proline Promag P 200 HART load • Min. 250 Ω • Max.500 W Dynamic variables The measured variables can be freely assigned to the dynamic variables. Measured variables for PV (primary dynamic variable) • Volume flow • Mass flow Measured variables for SV, TV, QV (secondary, tertiary and quaternary dynamic variable) •... -
Page 12: Power Consumption
For device versions with local display SD03: The terminal voltage must be increased by DC 2 V if backlighting is used. For information on the Ex connection values (® ä 9) Various power supply units can be ordered from Endress+Hauser: see "Accessories" section (® ä 37) Power consumption... - Page 13 Proline Promag P 200 Connection examples 4...20 mA A0015511 å 2 Connection example for 4-20 mA HART current output (passive) Automation system with current input (e.g. PLC) Active barrier for power supply (e.g. RN221N) (® ä 16) Observe cable specification (® ä 16) Resistor for HART communication (³...
-
Page 14: Potential Equalization
Proline Promag P 200 A0016802 å 5 Connection example for switch output (passive) Control system with switch input (e.g. PLC) Power supply Transmitter: Observe input values (® ä 7) Potential equalization Requirements Please consider the following to ensure correct measurement: •... - Page 15 The ground disks must be connected to the ground terminal via the ground cable and be connected to ground potential. Ground cable Copper wire, at least 6 mm (0.0093 in The ground cable and ground disks can be ordered from Endress+Hauser (® ä 36). Endress+Hauser...
-
Page 16: Terminals
Connect the two flanges of the pipe to one another via a ground cable. Guide the shield of the signal lines through a capacitor. The necessary ground cable can be ordered from Endress+Hauser (® ä 36). Terminals • For device version without integrated overvoltage protection: plug-in spring terminals for wire cross-sections 0.5 to 2.5 mm... -
Page 17: Overvoltage Protection
Proline Promag P 200 Overvoltage protection The device can be ordered with integrated overvoltage protection for several approvals: Order code for "Accessory mounted", option NA "overvoltage protection" Input voltage range Values correspond to supply voltage specifications (® ä 11) Resistance per channel 2 ×... -
Page 18: Repeatability
Proline Promag P 200 0.5 % 10 [m/s] 32 [ft/s] A0003200 å 10 Maximum measured error in % o.r. Repeatability o.r. = of reading max. ±0.2 % o.r. ±2 mm/s (0.08 in/s) Influence of ambient o.r. = of reading; o.f.s. = of full scale value... -
Page 19: Orientation
Proline Promag P 200 To prevent measuring errors arising from accumulation of gas bubbles in the measuring tube, avoid the following mounting locations in the pipe: • Highest point of a pipeline. • Directly upstream of a free pipe outlet in a down pipe. -
Page 20: Inlet And Outlet Runs
Proline Promag P 200 Horizontal The measuring electrode plane must be horizontal. This prevents brief insulation of the two measuring electrodes by entrained air bubbles. With horizontal orientation, empty pipe detection only works if the transmitter housing is pointing upwards as otherwise there is no guarantee that the empty pipe detection function will actually respond to a partially filled or empty measuring tube. -
Page 21: Special Mounting Instructions
• Avoid direct sunlight, particularly in warm climatic regions. • Avoid direct exposure to weather conditions. Weather protection covers can be ordered from Endress+Hauser: see "Accessories" section (® ä 36) Storage temperature The storage temperature corresponds to the operating temperature range of the measuring transmitter and the appropriate measuring sensors. -
Page 22: Shock Resistance
Proline Promag P 200 Sensor IP66/67, type 4X enclosure Shock resistance As per IEC/EN 60068-2-31 Vibration resistance Acceleration up to 2 g following IEC 60068-2-6 Mechanical load • Protect the transmitter housing against mechanical effects, such as shock or impact. - Page 23 Proline Promag P 200 Flange connection according to EN 1092-1 (DIN 2501) [psi] [bar] PN 40 PN 25 PN 16 PN 10 PN 6 -60 -40 -20 0 20 40 60 80 100 120 140 160 180 [°C] 360 [°F] A0005594 å...
- Page 24 Proline Promag P 200 Flange connection according to ASME B16.5 [psi] [bar] Class 300 Class 150 -40 -20 0 20 40 60 80 100 120 140 160 180 [°C] 360 [°F] A0003226 å 15 Material A105 Flange connection according to ASME B16.5...
-
Page 25: Pressure Tightness
Proline Promag P 200 Pressure tightness Liner: PFA Nominal diameter Limit values for absolute pressure in [mbar] ([psi]) for fluid temperatures: [mm] [in] +25 °C (+77 °F) +80 °C (+176 °F) +100 to +180 °C (+212 to +356 °F) 0 (0) -
Page 26: Vibrations
Proline Promag P 200 A0015594 Vibrations In the event of very strong vibrations, the pipe and sensor must be supported and fixed. For information on the permitted resistance to vibration and shock (® ä 22), (® ä 22) A0016266 å 18 Measures to prevent vibration of the device >... -
Page 27: Mechanical Construction
Proline Promag P 200 Mechanical construction Design, dimensions Compact version Order code for "Housing", option C "GT20 two-chamber, aluminium coating" with DN 25 to 200 (1 to 8") A0017644 Dimensions in SI units [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 189.5... - Page 28 Proline Promag P 200 [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] 1 ¼ 7.87 6.38 4.02 2.36 6.50 2.95 3.54 4.72 7.46 3.54 11.0 3.31 14.3 1 ½ 7.87 6.38 4.02 2.36 6.50...
-
Page 29: Weight
Proline Promag P 200 Dimensions in US units [in] [in] [in] [in] [in] [in] [in] ½ 0.63 1.69 2.42 2.87 0.26 0.08 1.02 2.44 3.05 3.44 0.26 0.08 1 ¼ 1.38 3.15 3.44 3.72 0.26 0.08 1 ½ 1.61 3.23 3.98... -
Page 30: Measuring Tube Specification
Proline Promag P 200 Nominal diameter ASME [mm] [in] Pressure rating [lbs] 2 ½ Class 150 – Class 150 27.6 Class 150 32.0 Class 150 – Class 150 52.9 Class 150 95.9 Measuring tube specification Nominal Pressure rating Process connection internal diameter... -
Page 31: Fitted Electrodes
Proline Promag P 200 Liner • PFA • PTFE Process connections EN 1092-1 (DIN 2501) 1.4571/316L, C22, FE 410W B, S235JRG2; with Al/Zn protective varnish ASME B16.5 A105, F316L; with Al/Zn protective varnish S235JRG2, HII, 1.0425/316L; with Al/Zn protective varnish List of all available process connections (®... -
Page 32: Local Operation
Proline Promag P 200 Quick and safe commissioning • Guided menus ("Make-it-run" wizards) for applications • Menu guidance with brief explanations of the individual parameter functions Reliable operation • Operation in the following languages: – Via local display: English, German, French, Spanish, Italian, Dutch, Portuguese, Polish, Russian, Turkish, Chinese, Japanese, Bahasa (Indonesian), Vietnamese, Czech –... -
Page 33: Remote Operation
Field Xpert SFX100 VIATOR Bluetooth modem with connecting cable Transmitter Via service interface (CDI) A0014019 Service interface (CDI = Endress+Hauser Common Data Interface) of the measuring device Commubox FXA291 Computer with "FieldCare" operating tool with COM DTM "CDI Communication FXA291" Endress+Hauser... -
Page 34: Certificates And Approvals
The measuring system is in conformity with the statutory requirements of the applicable EC Directives. These are listed in the corresponding EC Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. C-Tick symbol The measuring system meets the EMC requirements of the "Australian Communications and Media Authority... -
Page 35: Other Standards And Guidelines
The application packages can be ordered from Endress+Hauser either directly with the device or subsequently. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com. -
Page 36: Accessories
Various accessories, which can be ordered with the device or subsequently from Endress+Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com. -
Page 37: Service-Specific Accessories
All the relevant device information, such as the device status, spare parts and device-specific documentation, is available for every device over the entire life cycle. The application already contains the data of your Endress+Hauser device. Endress+Hauser also takes care of maintaining and updating the data records. -
Page 38: Documentation
For details, see "Technical Information" TI00081R and Brief Operating Instructions KA00110R Documentation The following document types are available: • On the CD-ROM supplied with the device • In the Download Area of the Endress+Hauser Internet site: www.endress.com ® Download Standard documentation Communication Document type Documentation code... - Page 40 Instruments International Endress+Hauser Instruments International AG Kaegenstrasse 2 4153 Reinach Switzerland Tel.+41 61 715 81 00 Fax+41 61 715 25 00 www.endress.com info@ii.endress.com TI01062D/06/EN/01.12 71185911 EH-COSIMA ProMoDo...
