KA01342D/06/EN/02.19
71424721
2019-02-01
Products

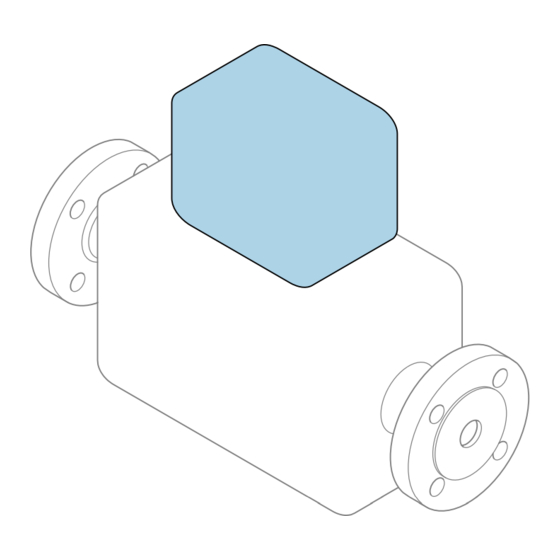

Brief Operating Instructions
Flowmeter
Proline 500
EtherNet/IP transmitter
with electromagnetic sensor
These instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Brief Operating Instructions part 2 of 2: Transmitter
Contain information about the transmitter.
Brief Operating Instructions part 1 of 2: Sensor →  3
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Proline 500

Summary of Contents for Endress+Hauser Proline 500

  • Page 1 Services KA01342D/06/EN/02.19 71424721 2019-02-01 Brief Operating Instructions Flowmeter Proline 500 EtherNet/IP transmitter with electromagnetic sensor These instructions are Brief Operating Instructions; they are not a substitute for the Operating Instructions pertaining to the device. Brief Operating Instructions part 2 of 2: Transmitter Contain information about the transmitter.
  • Page 2 Flowmeter Proline 500 Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...
  • Page 3 These Brief Operating Instructions are the Brief Operating Instructions part 2: Transmitter. The "Brief Operating Instructions part 1: Sensor" are available via: • Internet: www.endress.com/deviceviewer • Smart phone/tablet: Endress+Hauser Operations App Detailed information about the device can be found in the Operating Instructions and the other documentation: • Internet: www.endress.com/deviceviewer •...

  • Page 4: Table Of Contents

    Table of contents Flowmeter Proline 500 Table of contents About this document ............. . 5 Symbols used .

  • Page 5: About This Document

    Flowmeter Proline 500 About this document About this document Symbols used 1.1.1 Safety symbols Symbol Meaning DANGER! DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. WARNING! This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in WARNING serious or fatal injury.
  • Page 6 About this document Flowmeter Proline 500 Symbol Meaning Protective Earth (PE) A terminal which must be connected to ground prior to establishing any other connections. The ground terminals are situated inside and outside the device: • Inner ground terminal: Connects the protectiv earth to the mains supply.

  • Page 7: Basic Safety Instructions

    Flowmeter Proline 500 Basic safety instructions Basic safety instructions Requirements for the personnel The personnel must fulfill the following requirements for its tasks: ‣ Trained, qualified specialists must have a relevant qualification for this specific function and task. ‣ Are authorized by the plant owner/operator.

  • Page 8: Workplace Safety

    Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability as minute changes in the temperature, concentration or level of contamination in the process can alter the corrosion resistance properties.

  • Page 9: Device-Specific It Security

    Flowmeter Proline 500 Basic safety instructions Device-specific IT security The device offers a range of specific functions to support protective measures on the operator' s side. These functions can be configured by the user and guarantee greater in-operation safety if used correctly.

  • Page 10: Product Description

    Product description Flowmeter Proline 500 Product description The measuring system consists of a Proline 500 transmitter and an electromagnetic Proline Promag sensor. The transmitter and sensor are mounted in physically separate locations. They are interconnected via two connecting cable. Transmitter with integrated ISEM (intelligent sensor electronics module)

  • Page 11: Installation

    Flowmeter Proline 500 Installation Installation For detailed information about mounting the sensor, see the Sensor Brief Operating Instructions →  3 Mounting the transmitter housing CAUTION Ambient temperature too high! Danger of electronics overheating and housing deformation. ‣ Do not exceed the permitted maximum ambient temperature .
  • Page 12 Installation Flowmeter Proline 500 4.1.2 Post mounting WARNING Order code for "Transmitter housing", option L "Cast, stainless": cast transmitters are very heavy. They are unstable if they are not mounted on a secure, fixed post. ‣ Only mount the transmitter on a secure, fixed post on a stable surface.

  • Page 13: Turning The Transmitter Housing

    Flowmeter Proline 500 Installation Turning the transmitter housing To provide easier access to the connection compartment or display module, the transmitter housing can be turned. – – 3 mm 4 mm A0029993 Depending on the device version: Loosen the securing clamp of the connection compartment cover.

  • Page 14: Turning The Display Module

    Installation Flowmeter Proline 500 Turning the display module The display module can be turned to optimize display readability and operability. – – – 3 mm A0030035 Depending on the device version: Loosen the securing clamp of the connection compartment cover.

  • Page 15: Cover Locking

    Flowmeter Proline 500 Installation Cover locking NOTICE Order code for , option L "Cast, stainless": The covers of the transmitter housing are provided with a borehole to lock the cover. The cover can be locked using screws and a chain or cable provided by the customer.

  • Page 16: Transmitter Post-Installation Check

    Installation Flowmeter Proline 500 Transmitter post-installation check The post-installation check must always be performed after the following tasks: • Mounting the transmitter housing: – Post mounting – Wall mounting • Turning the transmitter housing • Turning the display module Is the device undamaged (visual inspection)? ...

  • Page 17: Electrical Connection

    Flowmeter Proline 500 Electrical connection Electrical connection NOTICE The measuring device does not have an internal circuit breaker. ‣ For this reason, assign the measuring device a switch or power-circuit breaker so that the power supply line can be easily disconnected from the mains.
  • Page 18 Electrical connection Flowmeter Proline 500 Signal cable EtherNet/IP The standard ANSI/TIA/EIA-568-B.2 Annex specifies CAT 5 as the minimum category for a cable used for EtherNet/IP. CAT 5e and CAT 6 are recommended. For more information on planning and installing EtherNet/IP networks, please refer to the "Media Planning and Installation Manual.
  • Page 19 Flowmeter Proline 500 Electrical connection Cable length (max.) Depends on the medium conductivity, max. 200 m (656 ft) Cable lengths (available for 5 m (15 ft), 10 m (32 ft), 20 m (65 ft) or variable length up to max. 200 m (656 ft)
  • Page 20 Electrical connection Flowmeter Proline 500 5.1.4 Terminal assignment Transmitter: supply voltage, input/outputs The terminal assignment of the inputs and outputs depends on the individual order version of the device. The device-specific terminal assignment is documented on an adhesive label in the terminal cover.
  • Page 21 Flowmeter Proline 500 Electrical connection 5.1.6 Pin assignment of device plug Assignment Coding Plug/socket Socket A0032047 5.1.7 Preparing the measuring device Carry out the steps in the following order: Mount the sensor and transmitter. Connection housing, sensor: Connect connecting cable.
  • Page 22 Electrical connection Flowmeter Proline 500 Preparing the connecting cable: Promag H Transmitter Electrode cable Coil current cable 70 (2.76) 80 (3.15) 50 (1.97) 17 (0.67) 50 (1.97) 8 (0.3) 10 (0.4) 8 (0.3) A0029544 A0029543 Engineering unit mm (in) A = Terminate the cable B = Fit ferrules on cables with fine-wire cores (stranded cables) 1 = Red ferrules, ...
  • Page 23 Flowmeter Proline 500 Electrical connection Sensor Electrode cable Coil current cable 70 (2.76) 80 (3.15) 17 (0.67) 40(1.57) 8 (0.31) 8 (0.31) ≥ 1 (0.04) A0029438 A0029439 Engineering unit mm (in) A = Terminate the cable B = Fit ferrules on cables with fine-wire cores (stranded cables) 1 = Red ferrules, ...
  • Page 24 Electrical connection Flowmeter Proline 500 Preparing the connecting cable: Promag P and Promag W Transmitter Electrode cable Coil current cable (3.54) 100 (3.94)* 70 (2.76) 80 (3.15) 50 (1.97) 17 (0.67) 50 (1.97) 8 (0.3) 10 (0.4) 8 (0.3) A0029329...
  • Page 25 Flowmeter Proline 500 Electrical connection Sensor Transmitter Coil current cable 20 (0.8)* 20 (0.8)* 160 (6.30)* 170 (6.7)* 80 (3.15) 70 (2.76) 50 (1.97) 50 (1.97) 18.5 (0.73) 10 (0.4) 6 (0.24) 8 (0.3) ³1 (0.04) A0029337 A0029336 Engineering unit mm (in)

  • Page 26: Connecting The Measuring Device

    Electrical connection Flowmeter Proline 500 Connecting the measuring device NOTICE Limitation of electrical safety due to incorrect connection! ‣ Have electrical connection work carried out by appropriately trained specialists only. ‣ Observe applicable federal/national installation codes and regulations. ‣ Comply with local workplace safety regulations.
  • Page 27 Flowmeter Proline 500 Electrical connection Proline Promag P and Promag W E2 S2 41 42 37 36 n.c. n.c. n.c. 41 42 E1 E2 A0029145 Coil current cable Signal cable Connecting the connecting cable to the sensor connection housing Connection via terminals with order code for "Housing"...
  • Page 28 Electrical connection Flowmeter Proline 500 Connecting the sensor connection housing via terminals 10 (0.4) 3 mm 22 mm 24 mm A0029612 Loosen the securing clamp of the housing cover. Unscrew the housing cover. Push the cable through the cable entry . To ensure tight sealing, do not remove the sealing ring from the cable entry.
  • Page 29 Flowmeter Proline 500 Electrical connection Connecting the sensor connection housing via terminals 10 (0.4) 8 mm 22 mm 24 mm A0029617 Release the securing screw of the housing cover. Open the housing cover. Push the cable through the cable entry . To ensure tight sealing, do not remove the sealing ring from the cable entry.
  • Page 30 Electrical connection Flowmeter Proline 500 Connecting the connecting cable to the transmitter 10 (0.4) 3 mm 22 mm 24 mm A0029592 Loosen the securing clamp of the connection compartment cover. Unscrew the connection compartment cover. Push the cable through the cable entry. To ensure tight sealing, do not remove the sealing ring from the cable entry.
  • Page 31 Flowmeter Proline 500 Electrical connection 5.2.2 Connecting the transmitter A0026781 Terminal connection for supply voltage Terminal connection for signal transmission, input/output Terminal connection for signal transmission, input/output or terminal connection for network connection via service interface (CDI-RJ45) Protective earth (PE)
  • Page 32 Electrical connection Flowmeter Proline 500 N ic N ic t e r t e r e r g ö f f e r g ö f f iz e iz e t e n t e n r ir r ir...
  • Page 33 Flowmeter Proline 500 Electrical connection 10. Plug in the RJ45 connector. 11. Firmly tighten the cable glands.  This concludes the EtherNet/IP connection process. Connecting the supply voltage and additional inputs/outputs 10 (0.4) mm (in) – A0033983 Push the cable through the cable entry . To ensure tight sealing, do not remove the sealing ring from the cable entry.
  • Page 34 Electrical connection Flowmeter Proline 500 Fit the display module holder in the electronics compartment. Screw on the connection compartment cover. Secure the securing clamp of the connection compartment cover. Removing a cable 3 (0.12) A0029598  3 Engineering unit mm (in)
  • Page 35 Flowmeter Proline 500 Electrical connection 5.2.3 Integrating the transmitter into a network This section only presents the basic options for integrating the device into a network. Integrating via the service interface The device is integrated via the connection to the service interface (CDI-RJ45).
  • Page 36 Electrical connection Flowmeter Proline 500 Integrating into a ring topology The device is integrated via the terminal connection for signal transmission (output 1) and the connection to the service interface (CDI-RJ45). Note the following when connecting: • Recommended cable: CAT5e, CAT6 or CAT7, with shielded connector (e.g. brand: YAMAICHI ;...

  • Page 37: Hardware Settings

    Flowmeter Proline 500 Electrical connection Hardware settings 5.3.1 Setting the device address The IP address of the measuring device can be configured for the network via DIP switches. Addressing data IP address and configuration options 1st octet 2nd octet 3rd octet 4th octet 192.

  • Page 38: Ensuring Potential Equalization

    Electrical connection Flowmeter Proline 500 5.3.2 Activating the default IP address The DHCP function is enabled in the device at the factory, i.e. the device expects an IP address to be assigned by the network. This function can be disabled and the device can be set to the default IP address 192.168.1.212 by DIP switch.
  • Page 39 • Grounding rings can be ordered separately as an accessory from Endress+Hauser . When ordering make sure that the grounding rings are compatible with the material used for the...
  • Page 40 Electrical connection Flowmeter Proline 500 Potential equalization via grounding electrodes on process connection A0028972 Hexagonal-headed bolts of process connection Integrated grounding electrodes O-ring seal Sensor 5.4.2 Promag P and Promag W For devices intended for use in hazardous locations, please observe the guidelines in the Ex documentation (XA).
  • Page 41 Flowmeter Proline 500 Electrical connection Ground cable Copper wire, at least 6 mm (0.0093 in DN 300 DN 350 ≥ ≤ A0029338  5 Potential equalization via ground terminal and pipe flanges Connect both sensor flanges to the pipe flange via a ground cable and ground them.

  • Page 42: Ensuring The Degree Of Protection

    Electrical connection Flowmeter Proline 500 Pipe with a cathodic protection unit This connection method is only used if the following two conditions are met: • Metal pipe without liner or pipe with electrically conductive liner • Cathodic protection is integrated in the personal protection equipment...

  • Page 43: Post-Connection Check

    Flowmeter Proline 500 Electrical connection To ensure that moisture does not enter the cable entry: Route the cable so that it loops down before the cable entry ("water trap").  A0029278 Insert dummy plugs into unused cable entries. Post-connection check Are cables or the device undamaged (visual inspection)? ...

  • Page 44: Operation Options

    Operation options Flowmeter Proline 500 Operation options Overview of operation options A0034513 Local operation via display module Computer with Web browser (e.g. Internet Explorer) or with operating tool (e.g. FieldCare, DeviceCare, AMS Device Manager, SIMATIC PDM) Field Xpert SFX350 or SFX370...

  • Page 45: Structure And Function Of The Operating Menu

    Flowmeter Proline 500 Operation options Structure and function of the operating menu 6.2.1 Structure of the operating menu Operating menu for operators and maintenances Language Operation task-oriented Setup Diagnostics Operating menu for experts Expert function-oriented A0014058-EN  7 Schematic structure of the operating menu 6.2.2...

  • Page 46: Access To The Operating Menu Via The Local Display

    Operation options Flowmeter Proline 500 Access to the operating menu via the local display X X X X X X 19.184 mA 12.5 X X X X X X Language 20.50 Ã English Deutsch Español Français Xxxxxxx A B C D E F G H I J K M N O P Q R S T U V W +0.000 Xx...
  • Page 47 Flowmeter Proline 500 Operation options 6.3.1 Operational display Explanatory symbols for the measured value Status area • Depends on the device version, e.g.: The following symbols appear in the status area of the – : Volume flow operational display at the top right: –...
  • Page 48 Operation options Flowmeter Proline 500 Numeric editor Confirms selection. Moves the input position one position to the left. Exits the input without applying the changes. Inserts decimal separator at the input position. Inserts minus sign at the input position. Clears all entered characters.

  • Page 49: Access To The Operating Menu Via The Operating Tool

    Flowmeter Proline 500 System integration Keys and meaning Minus/Enter key combination (press the keys simultaneously) With an operational display: • If keypad lock is active: Press the key for 3 s: Deactivates the keypad lock. • If keypad lock is not active: Press the key for 3 s: Opens the context menu including the option for activating the keypad lock.

  • Page 50: Setting The Operating Language

    Commissioning Flowmeter Proline 500 Setting the operating language Factory setting: English or ordered local language X X X X X X X 20.50 Main menu 0104-1 Display language English Operation Setup Display language 0104-1 English à Deutsch Español Français Display language 0104-1 Ã...

  • Page 51: Protecting Settings From Unauthorized Access

    Flowmeter Proline 500 Diagnostic information Example: Available submenus, wizards Meaning Empty pipe detection Configure empty pipe detection Advanced setup Additional parameters for configuration: • Sensor adjustment • Totalizer • User interface • Electrode cleaning circuit • WLAN settings • Data backup •...
  • Page 52 Diagnostic information Flowmeter Proline 500 X X X X X X X X X X X X X X 20.50 S801 Supply voltage Menu Diagnostic list Diagnostics 1 S801 Supply voltage Diagnostics 2 Diagnostics 3 Supply voltage (ID:203) S801 0d00h02m25s...
