Endress+Hauser Proline t-mass 65 Operating Instructions Manual

Foundation fieldbus thermal mass flow measuring system
Hide thumbs Also See for Proline t-mass 65:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Instructions Manual

Operating Instructions

Proline t-mass 65
FOUNDATION Fieldbus
Thermal Mass Flow Measuring System
9
BA00134D/06/EN/13.10
71128089
Valid as of version
V 3.00.XX (Device software)

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Proline t-mass 65

Summary of Contents for Endress+Hauser Proline t-mass 65

  • Page 1: Operating Instructions

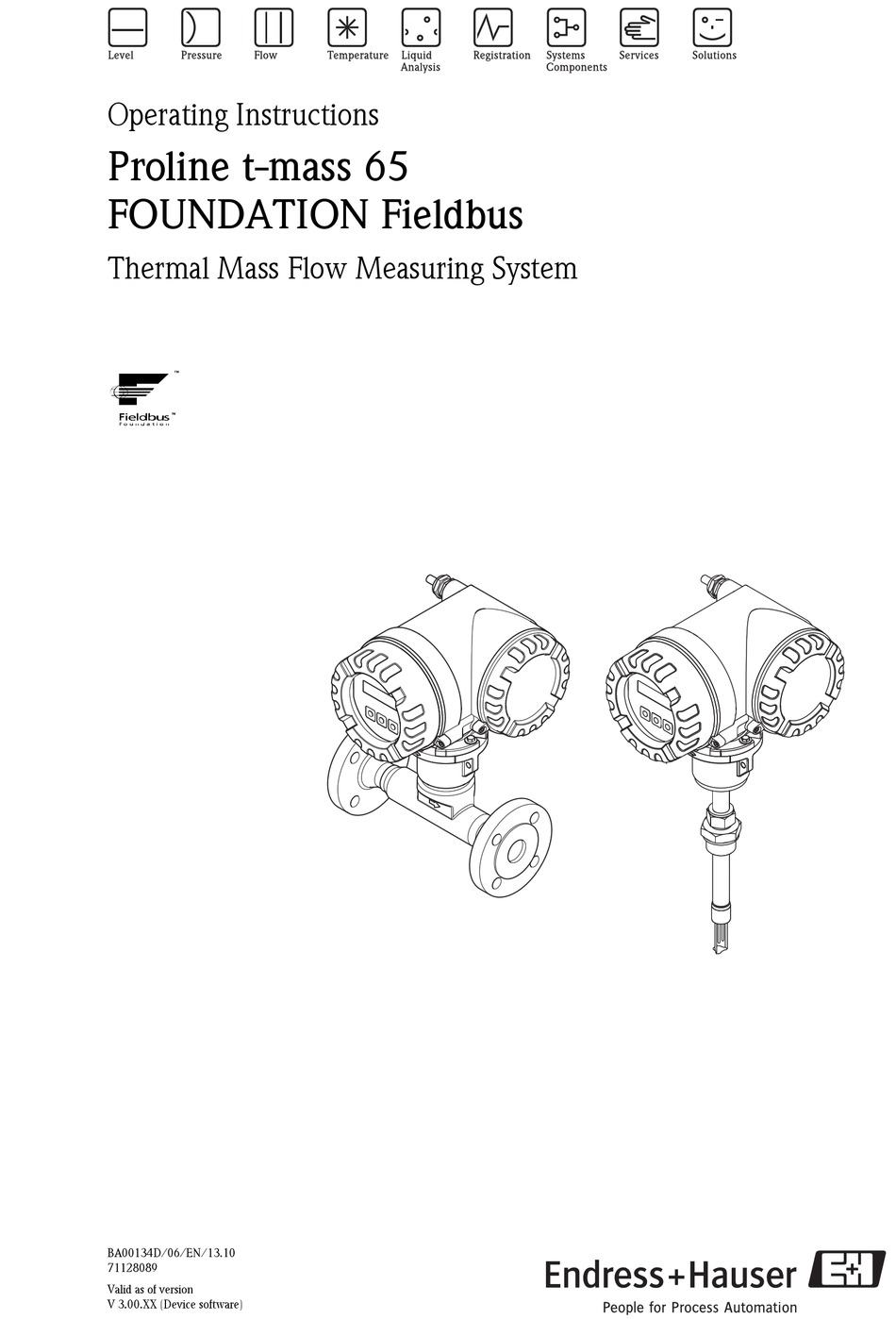

    Operating Instructions Proline t-mass 65 FOUNDATION Fieldbus Thermal Mass Flow Measuring System BA00134D/06/EN/13.10 71128089 Valid as of version V 3.00.XX (Device software)
