Endress+Hauser Proline Prosonic Flow P 500 Technical Information

Endress+Hauser Proline Prosonic Flow P 500 Technical Information

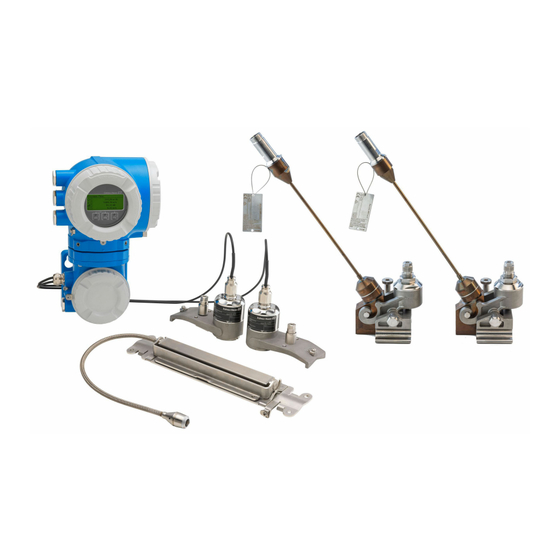

Ultrasonic time-of-flight flowmeter
Hide thumbs Also See for Proline Prosonic Flow P 500:
Table of Contents

Advertisement

Quick Links

Download this manual
TI01504D/06/EN/02.24-00
71633387
2024-01-31
Clamp-on flowmeter for limited spaces in process industries with up to 3 I/Os
Application
• The measuring principle is non-invasive and independent of
pressure, density and conductivity
• Bidirectional measurement of various fluids, e.g. liquid
hydrocarbons and chemicals
Device properties
• Direct mounting, independent of process temperature
• Wide nominal diameter range: DN 15 to 4000 (½ to 160")
• Medium temperature: –40 to +550 °C (–40 to +1 022 °F)
• Remote version with up to 3 I/Os
• Backlit display with touch control and WLAN access
• Standard volume correction and product identification for
liquid hydrocarbons
Products
Technical Information
Proline Prosonic Flow P 500
Ultrasonic time-of-flight flowmeter
Solutions
Your benefits
• Constant accuracy even when mounted with short inlet run
thanks to FlowDC
• High safety standards – SIL by design, international
hazardous area approvals
• Long-term stable signal – maintenance-free permanent
mounting from outside with coupling pads
• Reliable measurement on various pipe materials – sensor for
GRP and plastic pipes available
• Full access to process and diagnostic information –
numerous, freely combinable I/Os
• Reduced complexity and variety – freely configurable I/O
functionality
• Integrated verification – Heartbeat Technology
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Proline Prosonic Flow P 500

Summary of Contents for Endress+Hauser Proline Prosonic Flow P 500

  • Page 1 Solutions Services TI01504D/06/EN/02.24-00 71633387 2024-01-31 Technical Information Proline Prosonic Flow P 500 Ultrasonic time-of-flight flowmeter Clamp-on flowmeter for limited spaces in process industries with up to 3 I/Os Application Your benefits • The measuring principle is non-invasive and independent of •...

  • Page 2: Table Of Contents

    Proline Prosonic Flow P 500 Table of contents About this document ......Storage temperature ......
  • Page 3 Proline Prosonic Flow P 500 Registered trademarks ..... . 88 Endress+Hauser...

  • Page 4: About This Document

    Proline Prosonic Flow P 500 About this document Symbols Electrical symbols Symbol Meaning Direct current Alternating current Direct current and alternating current Ground connection A grounded terminal which, as far as the operator is concerned, is grounded via a grounding system.

  • Page 5: Function And System Design

    Proline Prosonic Flow P 500 Symbols in graphics Symbol Meaning 1, 2, 3, ... Item numbers , … Series of steps A, B, C, ... Views A-A, B-B, C-C, ... Sections Hazardous area Safe area (non-hazardous area) Flow direction Function and system design Measuring principle The measuring system uses a measurement method based on the transit time difference.

  • Page 6: Measuring System

    Proline Prosonic Flow P 500 Measuring system The measuring system consists of a transmitter and two or one sensor sets. The transmitter and sensor sets are mounted in physically separate locations. They are interconnected by sensor cables. The measuring system uses a measurement method based on the transit time difference. Here, the sensors function as sound generators and sound receivers.
  • Page 7 Proline Prosonic Flow P 500 Sensor Prosonic Flow P • Measurement of: DN 15 to 65 (½ to 2½") • Pure liquids or slightly contaminated liquids • Chemicals • Solvents • Liquid hydrocarbons • Acids • Alkalis • Nominal diameter range: DN 15 to 4000 (½ to 160") •...
  • Page 8 Proline Prosonic Flow P 500 Medium Pipe material Liner • Water • Glycol • Carbon steel • HDPE • None • Seawater • Kerosene • Graphite cast iron • GFR • Cement • Distilled water • Milk • Stainless steel •...
  • Page 9 Proline Prosonic Flow P 500 Single-path measurement (1 sensor set) Horizontal mounting 120° 120° 120° 120° A0044305 A0044304  7 2 traverses  6 1 traverse Two-path measurement (2 sensor sets) Vertical mounting A0042016 A0042017  8 1 traverse  9...
  • Page 10 Proline Prosonic Flow P 500 Two-path measurement (2 sensor sets) order code for "Process temperature", option H, I, J Vertical mounting Horizontal mounting 120° 120° A0044304 A0052539  15 1 traverse  14 1 traverse Operating frequency selection The sensors of the measuring device are available with adapted operating frequencies. For the resonance behavior of the measuring pipes, these frequencies are optimized for different properties of measuring pipes (material, pipe wall thickness) and media (kinematic viscosity).
  • Page 11 Proline Prosonic Flow P 500 Kinematic viscosity cSt [mm 0 < v ≤ 10 10 < v ≤ 100 100 < v ≤ 1000 Measuring pipe wall thickness [mm (in)] Converter frequency (sensor version/number of traverses) > 4.2 to 5.9 (0.17 to 0.23)
  • Page 12 Proline Prosonic Flow P 500 Kinematic viscosity cSt [mm 0 < v ≤ 10 10 < v ≤ 100 100 < v ≤ 1000 Nominal diameter [mm (")] Converter frequency (sensor version/number of traverses) > 500 to 1 000 (20 to 40) 0.3 MHz (C-030 / 1)
  • Page 13 Proline Prosonic Flow P 500 A0041975  16 Two-path measurement: examples of the horizontal arrangement of the sensor sets at a measuring point Installation of the sensor sets for measurement via 1 traverse Installation of the sensor sets for measurement via 2 traverses For horizontal orientation: non-recommended installation range (60°)

  • Page 14: Equipment Architecture

    Proline Prosonic Flow P 500 Equipment architecture A0027512  17 Possibilities for integrating measuring devices into a system Control system (e.g. PLC) Connecting cable (0/4 to 20 mA HART etc.) Fieldbus Coupler Non-hazardous area Hazardous area: Zone 2; Class I, Division 2 Hazardous area: Zone 1;...
  • Page 15 Proline Prosonic Flow P 500 Protecting access via hardware write protection Write access to the parameters of the device via the local display, web browser or operating tool (e.g. FieldCare, DeviceCare) can be disabled via a write protection switch (DIP switch on the main electronics module).
  • Page 16 Proline Prosonic Flow P 500 The use of relevant industrial standards and guidelines that have been defined by national and international safety committees, such as IEC/ISA62443 or the IEEE, is recommended. This includes organizational security measures such as the assignment of access authorization as well as technical measures such as network segmentation.

  • Page 17: Input

    (temperature, density) to the measuring device: • Analog inputs 4-20 mA • Digital inputs (via HART input or Modbus) Various temperature measuring devices can be ordered from Endress+Hauser: see "Accessories" section →  86 HART protocol The measured values are written from the automation system to the measuring device via the HART protocol.
  • Page 18 Proline Prosonic Flow P 500 Status input Maximum input values • DC –3 to 30 V • If status input is active (ON): R >3 kΩ Response time Configurable: 5 to 200 ms Input signal level • Low signal: DC –3 to +5 V •...

  • Page 19: Output And Input Variants

    Proline Prosonic Flow P 500 Output Output and input variants Depending on the option selected for output/input 1, different options are available for the other outputs and inputs. Only one option can be selected for each output/input 1 to 3. The following tables must be read vertically (↓).
  • Page 20 Proline Prosonic Flow P 500 Output/input 1 and options for output/input 3 Options for output/input 2 →  19 Order code for "Output; input 1" (020) → Possible options Current output 4 to 20 mA HART Current output 4 to 20 mA HART Ex i passive ↓...

  • Page 21: Output Signal

    Proline Prosonic Flow P 500 Output signal Current output 4 to 20 mA HART Order code "Output; input 1" (20): Option BA: current output 4 to 20 mA HART Signal mode Can be set to: • Active • Passive Current range Can be set to: •...
  • Page 22 Proline Prosonic Flow P 500 Modbus RS485 Physical interface RS485 in accordance with EIA/TIA-485 standard Terminating resistor Integrated, can be activated via DIP switches Current output 4 to 20 mA Order code "Output; input 2" (21)or "Output; input 3" (022):...
  • Page 23 Proline Prosonic Flow P 500 Pulse/frequency/switch output Function Can be configured as pulse, frequency or switch output Version Open collector Can be set to: • Active • Passive Maximum input values DC 30 V, 250 mA (passive) Open-circuit voltage DC 28.8 V (active) Voltage drop For 22.5 mA: ≤...
  • Page 24 Proline Prosonic Flow P 500 Number of switching Unlimited cycles Assignable functions • Disable • On • Diagnostic behavior • Limit • Volume flow • Mass flow • Flow velocity • Electronics temperature • Sound velocity • Totalizer 1-3 • Flow direction monitoring •...

  • Page 25: Signal On Alarm

    Proline Prosonic Flow P 500 Maximum switching • DC 30 V, 0.1 A capacity (passive) • AC 30 V, 0.5 A Assignable functions • Disable • On • Diagnostic behavior • Limit • Volume flow • Mass flow • Flow velocity •...
  • Page 26 Proline Prosonic Flow P 500 Pulse/frequency/switch output Pulse output Fault mode Choose from: • Actual value • No pulses Frequency output Fault mode Choose from: • Actual value • 0 Hz • Definable value between: 2 to 12 500 Hz...

  • Page 27: Load

    Proline Prosonic Flow P 500 Load Output signal →  21 Ex connection data Safety-related values Order code Output type Safety-related values "Output; input 1" "Output; input 1" 26 (+) 27 (–) Option BA Current output = 30 V 4 to 20 mA HART...

  • Page 28: Galvanic Isolation

    Proline Prosonic Flow P 500 Order code Output type Intrinsically safe values or NIFW values "Output; input 2"; Output; input 2 Output; input 3 "Output; input 3" 24 (+) 25 (–) 22 (+) 23 (–) Option C Current output 4 to 20 mA...

  • Page 29: Power Supply

    Proline Prosonic Flow P 500 Supported baud rate • 1 200 BAUD • 2 400 BAUD • 4 800 BAUD • 9 600 BAUD • 19 200 BAUD • 38 400 BAUD • 57 600 BAUD • 115 200 BAUD Data transmission mode •...

  • Page 30: Pin Assignment, Device Plug

    Proline Prosonic Flow P 500 Order code for "Accessory mounted", option NB "Adapter RJ45 M12 (service interface)" Order code Cable entry/coupling →  31 "Accessory mounted" Cable entry Cable entry Plug M12 × 1 – Pin assignment, device plug Service interface for Order code for "Accessories mounted", option NB: Adapter RJ45 M12 (service interface)

  • Page 31: Electrical Connection

    Proline Prosonic Flow P 500 Electrical connection Connection of the connecting cable: Proline 500 DOWN DOWN A0043219 Securing clamp Connection compartment cover: sensor cable connection Channel 1 UP: upstream/DOWN: downstream Channel 2 UP: upstream/DOWN downstream Transmitter connection • Terminal assignment →  29 •...
  • Page 32 Proline Prosonic Flow P 500 Connection examples Current output 4 to 20 mA HART 4...20 mA A0029055  18 Connection example for 4 to 20 mA HART current output (active) Automation system with current input (e.g. PLC) Ground cable shield at one end. The cable shield must be grounded at both ends to comply with EMC requirements;...
  • Page 33 Proline Prosonic Flow P 500 HART input 4...20 mA A0028763  20 Connection example for HART input with a common negative (passive) Automation system with HART output (e.g. PLC) Active barrier for power supply (e.g. RN221N) Ground cable shield at one end. The cable shield must be grounded at both ends to comply with EMC requirements;...
  • Page 34 Proline Prosonic Flow P 500 Current output 4-20 mA 4...20 mA A0028758  22 Connection example for 4-20 mA current output (active) Automation system with current input (e.g. PLC) Analog display unit: observe maximum load →  21 Transmitter 4...20 mA A0028759 ...
  • Page 35 Proline Prosonic Flow P 500 Switch output A0028760  25 Connection example for switch output (passive) Automation system with switch input (e.g. PLC with a 10 kΩ pull-up or pull-down resistor) Power supply Transmitter: observe input values →  23...
  • Page 36 Proline Prosonic Flow P 500 Relay output A0028760  28 Connection example for relay output (passive) Automation system with relay input (e.g. PLC) Power supply Transmitter: observe input values →  24 Current input A0028915  29 Connection example for 4 to 20 mA current input...

  • Page 37: Potential Equalization

    Proline Prosonic Flow P 500 Potential equalization Requirements For potential equalization: • Pay attention to in-house grounding concepts • Take account of operating conditions like the pipe material and grounding • Medium, Connect the sensor and transmitter to the same electric potential •...

  • Page 38: Overvoltage Protection

    Proline Prosonic Flow P 500 Pulse /frequency /switch output Standard installation cable is sufficient Pulse output, phase-shifted Standard installation cable is sufficient. Relay output Standard installation cable is sufficient. Current input 0/4 to 20 mA Standard installation cable is sufficient...
  • Page 39 Proline Prosonic Flow P 500 The installation-specific measurement error depends on the installation conditions on site, such as the nominal diameter, wall thickness, real pipe geometry or medium. The sum of the two measurement errors is the measurement error at the measuring point.

  • Page 40: Repeatability

    Proline Prosonic Flow P 500 Accuracy of outputs The outputs have the following base accuracy specifications. Current output Accuracy ±5 µA Pulse/frequency output o.r. = of reading Accuracy Max. ±50 ppm o.r. (over the entire ambient temperature range) Repeatability o.r. = of reading ±0.3% for flow velocities >0.3 m/s (1 ft/s)

  • Page 41: Orientation

    Proline Prosonic Flow P 500 Orientation Down Down A0041970  32 Orientation views Channel 1 upstream Channel 1 downstream Recommended orientation with upward flow direction Non-recommended installation range with horizontal orientation (60°) Recommended installation range max. 120° Vertical Recommended orientation with upward flow direction (view A) With this orientation, entrained solids sink and gases rise away from the sensor area when the medium is not flowing.
  • Page 42 Proline Prosonic Flow P 500 2 × DN 2 × DN 2 × DN 2 × DN 0…15 × DN 0…15 × DN 0…15 × DN A0053229  33 Inlet and outlet runs DN 50 to 4000 (2 to 160") Inlet and outlet runs DN 15 to 65 (½...

  • Page 43: Mounting The Sensor

    Before commencing work: allow the system and measuring device to cool to a touch-safe temperature. High-temperature applications (> 170°C) • Order code for "Process temperature", options H, I, J • Installation for high-temperature applications may only be performed by Endress+Hauser staff or by individuals authorized and trained by Endress+Hauser. Endress+Hauser...
  • Page 44 Proline Prosonic Flow P 500 Notes on mounting Mounting the high-temperature sensors CH-050/CH-100 For detailed information on mounting the CH-050/CH-100 high-temperature sensors (order code for "Sensor version", options AG, AH), see Special Documentation on "High-temperature applications →  87". Sensor configuration and settings DN 15 to 65 (½...
  • Page 45 Proline Prosonic Flow P 500 CAUTION Damage to the plastic, copper or glass pipes due to overtightening the nuts of the U-shaped screws! ‣ The use of a metal half-shell (on the opposite side of the sensor) is recommended for plastic, copper or glass pipes.
  • Page 46 Proline Prosonic Flow P 500 Push down the tensioning screw and tighten the strapping bands so they cannot slip.  A0043372  37 Tighten the tensioning screws of the strapping bands. If necessary, shorten the strapping bands and trim the cut edges.
  • Page 47 Proline Prosonic Flow P 500 A0043373  38 Holder with strapping bands (medium nominal diameters), with hinged screw Mounting bolts Strapping band Tensioning screw A0044350  39 Holder with strapping bands (medium nominal diameters), without hinged screw Mounting bolts Strapping band...
  • Page 48 Proline Prosonic Flow P 500 Select the mounting location of the sensors with the given sensor distance and optimum inlet run conditions,. In doing so, ensure there is nothing impeding sensor mounting over the entire circumference of the measuring pipe.
  • Page 49 Proline Prosonic Flow P 500 *The distance between the strap bolts and strapping band lock must be at least 500 mm (20 in). • For 1-traverse mounting with 180° (opposite) →  6,  9 (single-path measurement, A0044304), →  10,  9(two-path measurement, A0043168) •...
  • Page 50 Proline Prosonic Flow P 500 Procedure: Set the distance between the sensors to the value determined for the sensor distance. Press the movable sensor down slightly to move it.  A0043376  42 Distance between sensors as per the installation distance →  44...
  • Page 51 Proline Prosonic Flow P 500 Attach the sensor housing to the sensor holder by locking the bracket into place.  A0043378  44 Fastening the sensor housing Connect the sensor cable to the adapter cable.  This completes the mounting procedure. The sensors can be connected to the transmitter via the connecting cables.
  • Page 52 Proline Prosonic Flow P 500 With measuring wire 1: fit the fixer over the mounting bolt of strapping band 1 that is already securely mounted. Run measuring wire 1 clockwise around the measuring pipe. Fit the cable lug over the mounting bolt of strapping band 2 that can still be moved.
  • Page 53 Proline Prosonic Flow P 500 Fastening the sensors: Fit the sensor holders over the individual mounting bolts and tighten securely with the locking nut.  13 mm A0043381  48 Mounting the sensor holders Stick the coupling pad under the sensor →  87. Alternatively, coat the contact surfaces of the sensor evenly with coupling gel (approx.
  • Page 54 Proline Prosonic Flow P 500 Insert the sensor cable into each individual sensor until the end stop.  A0043383  50 Mounting the sensors and connecting the sensor cables This completes the mounting procedure. The sensors can now be connected to the transmitter via the sensor cables and the error message can be checked in the sensor check function.
  • Page 55 Proline Prosonic Flow P 500 Procedure: Position the strapping bands using the mounting rail [only DN50 to 600 (2 to 24"), for larger nominal diameters, measure the distance between the center of the strap bolts directly]: Fit the mounting rail with the bore identified by the letter (from the Result sensor distance / measuring aid parameter) over the mounting bolt of strapping band 1 that is fixed in place.
  • Page 56 Proline Prosonic Flow P 500 Insert the sensor cable into each individual sensor until the end stop and tighten the locking nut.  A0043386  53 Mounting the sensors and connecting the sensor cables This completes the mounting procedure. The sensors can now be connected to the transmitter via the sensor cables and the error message can be checked in the sensor check function.

  • Page 57: Mounting The Transmitter Housing

    Proline Prosonic Flow P 500 Mounting the transmitter Proline 500 transmitter housing Pipe mounting Required tools Open-ended wrench AF 13 WARNING Order code for "Transmitter housing", option L "Cast, stainless": cast transmitters are very heavy. They are unstable if they are not mounted on a secure, fixed post.

  • Page 58: Special Mounting Instructions

    For notes on insulation for high-temperature sensors, see the Special Documentation on high- temperature applications for the device →  87 You can order a weather protection cover from Endress+Hauser. →  83. Storage temperature The storage temperature for all components (except display modules and order code for "Sensor version", options AG, AH) corresponds to the ambient temperature range→...

  • Page 59: Relative Humidity

    Operating height According to EN 61010-1 • ≤ 2 000 m (6 562 ft) • > 2 000 m (6 562 ft) with additional overvoltage protection (e.g. Endress+Hauser HAW Series) Degree of protection Transmitter • IP66/67, Type 4X enclosure, suitable for pollution degree 4 •...

  • Page 60: Process

    Proline Prosonic Flow P 500 Process Medium temperature range Sensor version Frequency Temperature C-030-A 0.3 MHz –40 to +100 °C (–40 to +212 °F) C-050-A 0.5 MHz –20 to +80 °C (–4 to +176 °F) C-100-A 1 MHz –20 to +80 °C (–4 to +176 °F)

  • Page 61: Mechanical Construction

    Proline Prosonic Flow P 500 Mechanical Construction Dimensions in SI units Housing of Proline 500 transmitter Non-hazardous area or hazardous area: Zone 2; Class I, Division 2 or Zone 1; Class I, Division 1 A0033788 Order code for "Transmitter housing", option A "Aluminum, coated" and order code for "Integrated ISEM electronics", option B "Transmitter"...
  • Page 62 Proline Prosonic Flow P 500 Sensor remote version A0041969  57 DN 50 to 4000: measurement with 2 sensor sets [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] ⌀ 58 Measuring pipe outer diameter Depends on the conditions at the measuring point (measuring pipe, medium etc.). The dimension can be determined via FieldCare or Applicator.
  • Page 63 Proline Prosonic Flow P 500 A0041967  59 DN 50 to 4000: measurement with 1 sensor set [mm] [mm] [mm] [mm] [mm] [mm] [mm] ⌀ 58 Measuring pipe outer diameter Depends on the conditions at the measuring point (measuring pipe, medium etc.). The dimension can be determined via FieldCare or Applicator.
  • Page 64 Proline Prosonic Flow P 500 Accessories Weather protection cover 280 (11.0) 255 (10.0) 146 (5.75) 134 (5.3) 12 (0.47) 30 (1.18) A0029553  60 Weather protection cover for Proline 500; engineering unit mm (in) External WLAN antenna Proline 500 External WLAN antenna mounted on device 105 (4.1)
  • Page 65 Proline Prosonic Flow P 500 70 (2.8) A0033597  62 Engineering unit mm (in) Endress+Hauser...

  • Page 66: Dimensions In Us Units

    Proline Prosonic Flow P 500 Dimensions in US units Housing of Proline 500 transmitter Non-hazardous area or hazardous area: Zone 2; Class I, Division 2 or Zone 1; Class I, Division 1 A0033788 Order code for "Transmitter housing", option A "Aluminum, coated" and order code for "Integrated ISEM electronics", option B "Transmitter"...
  • Page 67 Proline Prosonic Flow P 500 Sensor remote version A0041969  63 DN 2 to 160": measurement with 2 sensor sets [in] [in] [in] [in] [in] [in] [in] [in] 2.20 2.44 ⌀ 2.28 0.20 5.71 4.37 Measuring pipe outer diameter Depends on the conditions at the measuring point (measuring pipe, medium etc.). The dimension can be determined via FieldCare or Applicator.
  • Page 68 Proline Prosonic Flow P 500 A0041967  65 DN 2 to 160": measurement with 1 sensor set [in] [in] [in] [in] [in] [in] [in] 2.20 5.71 2.44 ⌀ 2.28 4.37 Measuring pipe outer diameter Depends on the conditions at the measuring point (measuring pipe, medium etc.). The dimension can be determined via FieldCare or Applicator.
  • Page 69 Proline Prosonic Flow P 500 Accessories Weather protection cover 280 (11.0) 255 (10.0) 146 (5.75) 134 (5.3) 12 (0.47) 30 (1.18) A0029553  66 Weather protection cover for Proline 500; engineering unit mm (in) External WLAN antenna Proline 500 External WLAN antenna mounted on device 105 (4.1)

  • Page 70: Weight

    Proline Prosonic Flow P 500 70 (2.8) A0033597  68 Engineering unit mm (in) Weight Weight specifications exclusive of packaging material. Transmitter • Proline 500 aluminum: 6.5 kg (14.3 lbs) • Proline 500 cast, stainless: 15.6 kg (34.4 lbs) Sensor Including mounting material •...
  • Page 71 Proline Prosonic Flow P 500 Cable entries/cable glands A0020640  69 Possible cable entries/cable glands Female thread M20 × 1.5 Cable gland M20 × 1.5 Adapter for cable entry with female thread G ½" or NPT ½" Cable entries and adapters...

  • Page 72: Display And User Interface

    Proline Prosonic Flow P 500 Coupling pads • –40 to +100 °C (–40 to +212 °F): silicon-based thermal pad H48.2 (0.5 mm (0.02 in)) • –40 to +170 °C (–40 to +338 °F): VMQ-silicone-rubber (vinyl methyl silicone) (0.5 mm (0.02 in)) Coupling foil •...

  • Page 73: Languages

    Proline Prosonic Flow P 500 Languages Can be operated in the following languages: • Via local operation English, German, French, Spanish, Italian, Dutch, Portuguese, Polish, Russian, Turkish, Chinese, Japanese, Korean, Vietnamese, Czech, Swedish • Via web browser English, German, French, Spanish, Italian, Dutch, Portuguese, Polish, Russian, Turkish, Chinese, Japanese, Vietnamese, Czech, Swedish •...
  • Page 74 Proline Prosonic Flow P 500 A0028747  71 Options for remote operation via HART protocol (active) Control system (e.g. PLC) Field Communicator 475 Computer with web browser (e.g. Microsoft Edge) to access the integrated device web server or computer with operating tool (e.g.

  • Page 75: Service Interface

    Proline Prosonic Flow P 500 A0029437  73 Options for remote operation via Modbus RS485 protocol (active) Control system (e.g. PLC) Computer with web browser (e.g. Microsoft Edge) to access the integrated device web server or with operating tool (e.g. FieldCare, DeviceCare) with COM DTM "CDI Communication TCP/IP" or Modbus DTM...

  • Page 76: Supported Operating Tools

    Proline Prosonic Flow P 500 A0041325 Transmitter with integrated WLAN antenna Transmitter with external WLAN antenna LED lit constantly: WLAN reception is enabled on measuring device LED flashing: WLAN connection established between operating unit and measuring device Computer with WLAN interface and web browser (e.g. Microsoft Internet Explorer, Microsoft Edge) for accessing the integrated device web server or with operating tool (e.g.
  • Page 77 Proline Prosonic Flow P 500 Supported operating Operating unit Interface Additional information tools Web browser Notebook, PC or tablet • CDI-RJ45 service Special Documentation for with web browser interface device • WLAN interface DeviceCare SFE100 Notebook, PC or tablet • CDI-RJ45 service →...

  • Page 78: Historom Data Management

    Proline Prosonic Flow P 500 HistoROM data management The measuring device features HistoROM data management. HistoROM data management comprises both the storage and import/export of key device and process data, making operation and servicing far more reliable, secure and efficient.

  • Page 79: Certificates And Approvals

    The device meets the legal requirements of the applicable EU Directives. These are listed in the corresponding EU Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. UKCA marking The device meets the legal requirements of the applicable UK regulations (Statutory Instruments).

  • Page 80: Functional Safety

    Proline Prosonic Flow P 500 Ex ec Transmitter Sensor Category Type of protection Category Type of protection – – II3G Ex ec ic IIC II3G Ex ec nC IIC T5…T4 Gc II3G Ex ec ic IIC Ex tb Transmitter Sensor...

  • Page 81: Hart Certification

    • Depending on the device: Direct input of measuring point-specific information such as measuring range or operating language • Automatic verification of exclusion criteria • Automatic creation of the order code and its breakdown in PDF or Excel output format • Ability to order directly in the Endress+Hauser Online Shop Endress+Hauser...

  • Page 82: Application Packages

    The application packages can be ordered with the device or subsequently from Endress+Hauser. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.

  • Page 83: Accessories

    For detailed information, see the Special Documentation for the device. →  87. Accessories Various accessories, which can be ordered with the device or subsequently from Endress+Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.
  • Page 84 Proline Prosonic Flow P 500 Weather protection cover Is used to protect the measuring device from the effects of the weather: e.g. rainwater, excess heating from direct sunlight. Transmitter  Proline 500 Proline 500 transmitter Order number: 71343505  Installation Instructions EA01191D...

  • Page 85: Communication-Specific Accessories

    • As a downloadable DVD for local PC installation. Netilion lloT Ecosystem: Unlock knowledge With the Netilion lloT Ecosystem, Endress+Hauser enables you to optimize your plant performance by digitizing workflows, creating knowledge and establishing new levels of collaboration. Building decades of expertise in process automation, Endress+Hauser provides the process industry with an lloT Ecosystem that allows data-driven insights.

  • Page 86: System Components

    For an overview of the scope of the associated Technical Documentation, refer to the following: • Device Viewer (www.endress.com/deviceviewer): Enter the serial number from the nameplate • Endress+Hauser Operations app: Enter serial number from nameplate or scan matrix code on nameplate. Standard documentation Supplementary information on the semi-standard options is available in the relevant Special Documentation in the TSP database.

  • Page 87: Supplementary Device-Dependent Documentation

    Proline Prosonic Flow P 500 Description of Device Parameters Documentation code Measuring device HART Modbus RS485 Prosonic Flow P 500 GP01147D GP01148D Supplementary device- Safety Instructions dependent documentation Safety instructions for electrical equipment for hazardous areas. Contents Documentation code ATEX/IECEx Ex ia...
  • Page 88 Proline Prosonic Flow P 500 Registered trademarks HART® Registered trademark of the FieldComm Group, Austin, Texas, USA Modbus® Registered trademark of SCHNEIDER AUTOMATION, INC. *71633387* 71633387 www.addresses.endress.com...
