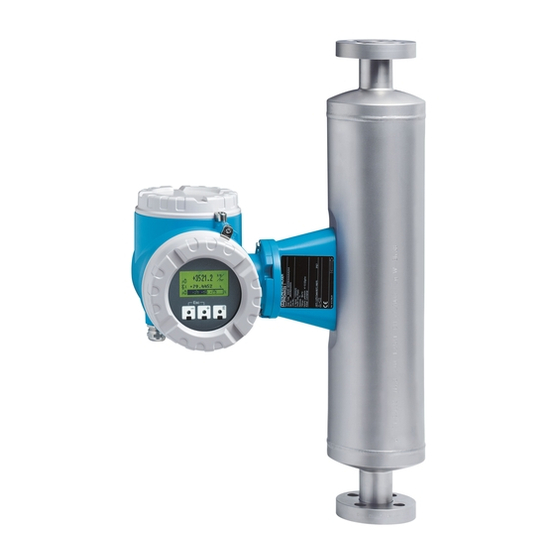

Endress+Hauser Proline Promass 83 Operating Instructions Manual

Coriolis mass flow measuring system foundation fieldbus
Hide thumbs Also See for Proline Promass 83:
Table of Contents

Advertisement

Quick Links

See also: Function Manual , Operating Instructions Manual

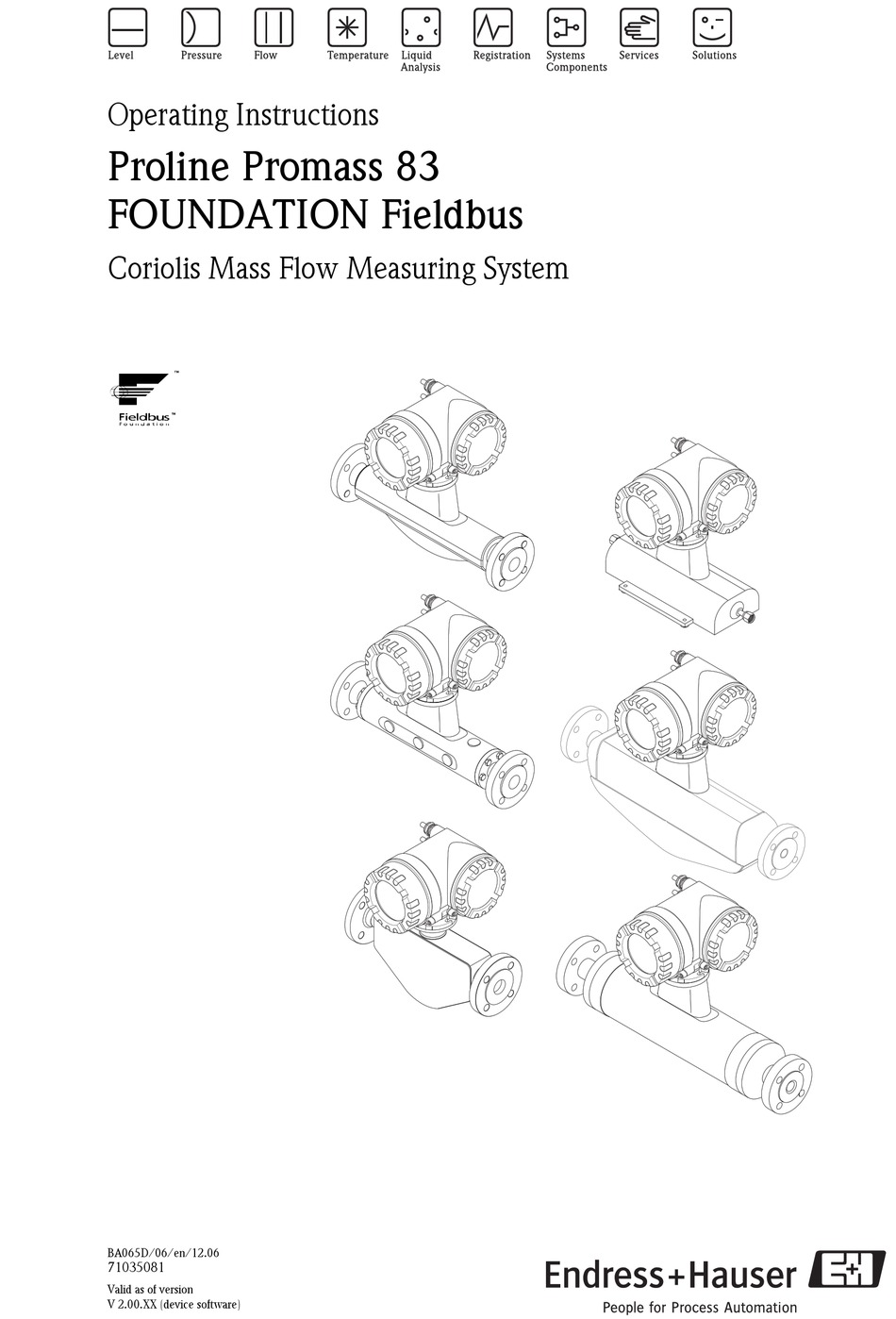

Operating Instructions

Proline Promass 83
FOUNDATION Fieldbus
Coriolis Mass Flow Measuring System
9
BA065D/06/en/12.06
71035081
Valid as of version
V 2.00.XX (device software)

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Proline Promass 83

Summary of Contents for Endress+Hauser Proline Promass 83

  • Page 1: Operating Instructions

    Operating Instructions Proline Promass 83 FOUNDATION Fieldbus Coriolis Mass Flow Measuring System BA065D/06/en/12.06 71035081 Valid as of version V 2.00.XX (device software)
  • Page 2 Brief operating instructions Proline Promass 83 FOUNDATION Fieldbus Brief operating instructions These brief operating instructions show you how to configure your measuring device quickly and easily: Safety instructions Page 7 Æ Installation Page 13 Æ Wiring Page 24 Æ Quick operation guide Page 33 Æ...
  • Page 3 Proline Promass 83 FOUNDATION Fieldbus Brief operating instructions QUICK SETUP "Commissioning" Note! More detailed information on running Quick Setup menus, especially for devices without a local display, can be found in the "Commissioning" section → Page 51 ff. 1002 XXX.XXX.XX...
  • Page 4 Brief operating instructions Proline Promass 83 FOUNDATION Fieldbus Note! • The display returns to the cell SETUP COMMISSIONING (1002) if you press the X key combination during parameter interrogation. The stored parameters remain valid. • The system units selected via the Quick Setup are only valid for the local display and for parameters in the Transducer Blocks.

  • Page 5: Table Of Contents

    Proline Promass 83 FOUNDATION Fieldbus Table of contents Table of contents Safety instructions ....7 Degree of protection ..... . . 31 Post-connection check .
  • Page 6 Proline Promass 83 FOUNDATION Fieldbus Table of contents Accessories ..... 71 Device-specific accessories: ....71 Measuring principle-specific accessories: .

  • Page 7: Safety Instructions

    • The device must be operated by persons authorized and trained by the facility's owner-operator. Strict compliance with the instructions in these Operating Instructions is mandatory. • Endress+Hauser will be happy to assist in clarifying the corrosion-resistant properties of materials wetted by special fluids, including fluids used for cleaning. However, minor changes in temperature, concentration or in the degree of contamination in the process may result in variations in corrosion resistance.

  • Page 8: Return

    Safety instructions Proline Promass 83 FOUNDATION Fieldbus • The manufacturer reserves the right to modify technical data without prior notice. Your Endress+Hauser distributor will supply you with current information and updates to these Operating Instructions. Return The following procedures must be carried out before a flowmeter requiring repair or calibration, for example, is returned to Endress+Hauser: •...

  • Page 9: Identification

    Proline Promass 83 FOUNDATION Fieldbus Identification Identification Device designation The flow measuring system consists of the following components: • Transmitter Promass 80 and 83 • Sensor (Promass F, Promass M, Promass E, Promass A, Promass H, Promass I, Promass S or...

  • Page 10: Nameplate Of The Sensor

    Identification Proline Promass 83 FOUNDATION Fieldbus 2.1.2 Nameplate of the sensor PROMASS F 83F25-XXXXXXXXXXXX Order Code: 12345678901 Ser.No.: ABCDEFGHJKLMNPQRST TAG No.: 2.5100 / -11 DN25 / 1” K-factor: Size: DN25 DIN/EN PN100 pnom =PS= 100bar 1.4539 / 904L Materials: 200°C / 392°F TMmax.:...

  • Page 11: Nameplate For Connections

    Proline Promass 83 FOUNDATION Fieldbus Identification 2.1.3 Nameplate for connections active See operating manual passive Betriebsanleitung beachten normally open contact Observer manuel d'instruction normally closed contact 12345678912 Ser.No.: L1 / L+ Supply / Versorgung / N / L- Tension d'alimentation...

  • Page 12: Certificates And Approvals

    Laboratory Procedures" and with the EMC requirements of EN 61326/A1. The measuring system described in these Operating Instructions thus complies with the statutory requirements of the EC Directives. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark.

  • Page 13: Installation

    Proline Promass 83 FOUNDATION Fieldbus Installation Installation Incoming acceptance, transport and storage 3.1.1 Incoming acceptance On receipt of the goods, check the following points: • Check the packaging and the contents for damage. • Check the shipment, make sure nothing is missing and that the scope of supply matches your order.

  • Page 14: Storage

    Installation Proline Promass 83 FOUNDATION Fieldbus 3.1.3 Storage Note the following points: • Pack the measuring device in such a way as to protect it reliably against impact for storage (and transportation). The original packaging provides optimum protection. • The permitted storage temperature is: –40 to +80 °C (–40 °F to +176 °F), preferably +20 °C (+68 °F).
  • Page 15 Proline Promass 83 FOUNDATION Fieldbus Installation The proposed configuration in the following diagram, however, permits installation in a vertical pipeline. Pipe restrictors or the use of an orifice plate with a smaller cross-section than the nominal diameter prevent the sensor from running empty during measurement.

  • Page 16: Orientation

    Installation Proline Promass 83 FOUNDATION Fieldbus 3.2.3 Orientation Make sure that the direction of the arrow on the nameplate of the sensor matches the direction of flow (direction in which the fluid flows through the pipe). Orientation of Promass A Vertical: Recommended orientation with upward direction of flow.
  • Page 17 Proline Promass 83 FOUNDATION Fieldbus Installation Orientation of Promass F, M, E, H, I, S, P Make sure that the direction of the arrow on the nameplate of the sensor matches the direction of flow (direction in which the fluid flows through the pipe).

  • Page 18: Heating

    ≥ 300 – Relative magnetic permeability μ – Plate thickness d ≥ 0.35 mm (0.0011") • Information on permissible temperature ranges → Page 108 Special heating jackets which can be ordered as accessories from Endress+Hauser are available for the sensors. Endress+Hauser...

  • Page 19: Thermal Insulation

    Proline Promass 83 FOUNDATION Fieldbus Installation 3.2.5 Thermal insulation Some fluids require suitable measures to avoid loss of heat at the sensor. A wide range of materials can be used to provide the required thermal insulation. mm (inch) a0004614-ae Fig. 10: In the case of the Promass F high-temperature version, a maximum insulation thickness of 60 mm (2.4") must...

  • Page 20: Installation Instructions

    Installation Proline Promass 83 FOUNDATION Fieldbus Installation instructions 3.3.1 Turning the transmitter housing Turning the aluminum field housing Warning! The turning mechanism in devices with EEx d/de or FM/CSA Cl. I Div. 1 classification is not the same as that described here. The procedure for turning these housings is described in the Ex-specific documentation.

  • Page 21: Installing The Wall-Mount Housing

    Proline Promass 83 FOUNDATION Fieldbus Installation 3.3.2 Installing the wall-mount housing There are various ways of installing the wall-mount housing: • Mounted directly on the wall • Installation in control panel (separate mounting set, accessories) → Page 22 • Pipe mounting (separate mounting set, accessories) → Page 22 "...
  • Page 22 Installation Proline Promass 83 FOUNDATION Fieldbus Panel mounting Prepare the opening in the panel as illustrated in the diagram. Slide the housing into the opening in the panel from the front. Screw the fasteners onto the wall-mount housing. Screw threaded rods into holders and tighten until the housing is solidly seated on the panel wall.

  • Page 23: Turning The Local Display

    Proline Promass 83 FOUNDATION Fieldbus Installation 3.3.3 Turning the local display Unscrew cover of the electronics compartment from the transmitter housing. Press the side latches on the display module and remove the module from the electronics compartment cover plate. Rotate the display to the desired position (max. 4 x 45 ° in both directions), and reset it onto the electronics compartment cover plate.

  • Page 24: Wiring

    Wiring Warning! • When connecting Ex-certified devices, see the notes and diagrams in the Ex-specific supplement to these Operating Instructions. Please do not hesitate to contact your Endress+Hauser sales office if you have any questions. Note! The device does not have an internal splitter. For this reason, assign the device a switch or power- circuit breaker which can be used to disconnect the power supply line from the power grid.

  • Page 25: Maximum Overall Cable Length

    Proline Promass 83 FOUNDATION Fieldbus Wiring Suitable fieldbus cables (Type A) from various manufacturers for the non-hazardous area are listed below: • Siemens: 6XV1 830-5BH10 • Belden: 3076F • Kerpen: CeL-PE/OSCR/PVC/FRLA FB-02YS(ST)YFL 4.1.2 Maximum overall cable length The maximum network expansion depends on the type of ignition protection and the cable specifications.

  • Page 26: Bus Termination

    Wiring Proline Promass 83 FOUNDATION Fieldbus 4.1.6 Bus termination The start and end of each fieldbus segment are always to be terminated with a bus terminator. With various junction boxes (not Ex-rated) the bus termination can be activated via a switch. If this is not the case a separate bus terminator must be installed.

  • Page 27: Connecting The Remote Version

    Proline Promass 83 FOUNDATION Fieldbus Wiring Connecting the remote version 4.2.1 Connecting the connecting cable for sensor/transmitter Warning! • Risk of electric shock. Switch off the power supply before opening the device. Do not install or wire the device while it is connected to the power supply.

  • Page 28: Cable Specification, Connecting Cable

    Wiring Proline Promass 83 FOUNDATION Fieldbus 4.2.2 Cable specification, connecting cable The specifications of the cable connecting the transmitter and the sensor of the remote version are as follows: • 6 x 0.38 mm (PVC cable with common shield and individually shielded cores) •...
  • Page 29 Proline Promass 83 FOUNDATION Fieldbus Wiring FF– N (L–) L1 (L+) FF– 20 21 22 23 24 25 26 27 N (L–) L1 (L+) a0004723 Fig. 18: Connecting the transmitter; cable cross-section: max. 2.5 mm View A (field housing) View B (stainless steel field housing)

  • Page 30: Fieldbus Connector

    • Existing cable infrastructures can be used and expanded instantly, e.g. when constructing new star distributors using 4-channel or 8-channel junction boxes. The device can therefore be supplied with a ready-mounted fieldbus connector. Fieldbus connectors for retrofitting can be ordered from Endress+Hauser as a spare part. → Page 71 26.5 mm (1.040") 190 mm M 20.5...

  • Page 31: Terminal Assignment

    Proline Promass 83 FOUNDATION Fieldbus Wiring 4.3.3 Terminal assignment Note! The electrical characteristic quantities are listed in the "Technical data" section. Terminal No. (inputs/outputs) Order version 20 (+) / 21 (–) 22 (+) / 23 (–) 24 (+) / 25 (–) 26 = FF + 27 = FF –...

  • Page 32: Post-Connection Check

    Wiring Proline Promass 83 FOUNDATION Fieldbus Post-connection check Perform the following checks after completing electrical installation of the measuring device: Device condition and specifications Notes Are cables or the device damaged (visual inspection)? Electrical connection Notes Does the supply voltage match the specifications on the nameplate?

  • Page 33: Operation

    Proline Promass 83 FOUNDATION Fieldbus Operation Operation Quick operation guide You have a number of options for configuring and commissioning the flowmeter: Local display (option) → Page 34 The local display enables you to read all important parameters directly at the measuring point, configure device-specific parameters in the field and perform commissioning.

  • Page 34: Local Display

    Operation Proline Promass 83 FOUNDATION Fieldbus Local display 5.2.1 Display and operating elements The local display enables you to read all important parameters directly at the measuring point and configure the device using the "Quick Setup" or the function matrix.

  • Page 35: Display (Operating Mode)

    Proline Promass 83 FOUNDATION Fieldbus Operation 5.2.2 Display (operating mode) The display area consists of three lines in all; this is where measured values are displayed, and/or status variables (direction of flow, bar graph, etc.). You can change the assignment of display lines to different variables to suit your needs and preferences (→...

  • Page 36: Icons

    Operation Proline Promass 83 FOUNDATION Fieldbus 5.2.3 Icons The icons which appear in the field on the left make it easier to read and recognize measured variables, device status, and error messages. Icon Meaning Icon Meaning System error Process error...
  • Page 37 Proline Promass 83 FOUNDATION Fieldbus Operation Icon Meaning Icon Meaning Mass flow Target mass flow a0001196 a0001195 % Target mass flow Carrier mass flow a0001197 a0001198 % Carrier mass flow Fluid density a0001199 a0001200 Fluid temperature Reference density a0001208 a0001207...

  • Page 38: Brief Operating Instructions On The Function Matrix

    Operation Proline Promass 83 FOUNDATION Fieldbus Brief operating instructions on the function matrix Note! • See the general notes → Page 39 • Function descriptions → See the "Description of Device Functions" manual HOME position → F → Enter the function matrix O / S →...

  • Page 39: General Notes

    • If programming is disabled and the OS operating elements are pressed in any function, a prompt for the code automatically appears on the display. • If "0" is entered as the customer's code, programming is always enabled. • The Endress+Hauser service organization can be of assistance if you mislay your personal code. " Caution! •...

  • Page 40: Disabling The Programming Mode

    Operation Proline Promass 83 FOUNDATION Fieldbus 5.3.3 Disabling the programming mode Programming mode is disabled if you do not press an operating element within 60 seconds following automatic return to the HOME position. You can also disable programming in the "ACCESS CODE" function by entering any number (other than the customer's code).

  • Page 41: Operating Programs

    • Network configuration → CFF file (Common File Format: *.cff) You can obtain these files as follows: • Free of charge via the Internet → www.endress.com / www.endress.de • From Endress+Hauser stating the order number (No. 56003896) • Via the Fieldbus Foundation Organization → www.fieldbus.org Note! Ensure you use the correct system files for linking the field devices into the host system.

  • Page 42: Operating Via Foundation Fieldbus

    Operating program Sources for obtaining device descriptions: ToF Tool – Fieldtool Package • www.tof-fieldtool.endress.com • Update CD-ROM (Endress+Hauser order number: 50099820) Tester/simulator Sources for obtaining device descriptions: Fieldcheck • Update by means of ToF Tool - Fieldtool Package via Fieldflash module...

  • Page 43: Foundation Fieldbus Hardware Settings

    Proline Promass 83 FOUNDATION Fieldbus Operation FOUNDATION Fieldbus hardware settings 5.6.1 Switching hardware write protection on and off A jumper on the I/O board provides the means of switching hardware write protection on or off. Warning! Risk of electric shock. Exposed components carry dangerous voltages. Make sure that the power supply is switched off before you remove the cover of the electronics compartment.

  • Page 44: Commissioning

    Commissioning Proline Promass 83 FOUNDATION Fieldbus Commissioning Function check Make sure that the following function checks have been performed successfully before switching on the supply voltage for the measuring device: • Checklist for "Post-installation check" → Page 23 • Checklist for "Post-connection check" → Page 32...

  • Page 45: Commissioning Via Foundation Fieldbus

    Proline Promass 83 FOUNDATION Fieldbus Commissioning Commissioning via FOUNDATION Fieldbus Note the following points: • The files required for commissioning and network configuration can be obtained as described on Page 41. • The device is identified by the FOUNDATION Fieldbus in the host or configuration system via the device ID (DEVICE_ID).
  • Page 46 Commissioning Proline Promass 83 FOUNDATION Fieldbus Display text (xxx... = serial number) Base index Description PID_ xxxxxxxxxxx 1000 PID Function Block (PID) ARITHMETIC_xxxxxxxxxxx 1100 Arithmetic Function Block (ARTH) INPUT_SELECTOR_xxxxxxxxxxx 1150 Input Selector Function Block (ISEL) SIGNAL_CHARACT_xxxxxxxxxxx 1200 Signal Characterizer Function Block (CHAR)
  • Page 47 Proline Promass 83 FOUNDATION Fieldbus Commissioning Configuration of the "Transducer Blocks" The individual Transducer Blocks comprise various parameter groups ordered by device-specific functions: Transducer Block Base index Description "Flow" Transducer Block 1400 Flow measurement "Diagnosis" Transducer Block 1600 Diagnostic functions "Display"...
  • Page 48 Commissioning Proline Promass 83 FOUNDATION Fieldbus Process variable Channel parameter Totalizer 1 Totalizer 2 The following process variables are available if the "Concentration measurement" add-on is installed in the measuring device (order option) Target fluid mass flow Target fluid % mass...
  • Page 49 Proline Promass 83 FOUNDATION Fieldbus Commissioning 19. In the L_TYPE parameter, select the mode of linearization for the input variable (Direct, Indirect, Indirect Sq Root) → See the "Description of Device Functions" manual. " Caution! Note that with the type of linearization "Direct" the configuration of the parameter group OUT_SCALE must agree with the configuration of the parameter group XD_SCALE.
  • Page 50 Commissioning Proline Promass 83 FOUNDATION Fieldbus a0004739 Fig. 28: Connecting Function Blocks using the NI-FBUS Configurator 23. After specifying the active LAS, download all the data and parameters into the field device. 24. Set the operating mode in the parameter group MODE_BLK (parameter TARGET) to AUTO.

  • Page 51: Commissioning Via Quick Setup (Local Display)

    Proline Promass 83 FOUNDATION Fieldbus Commissioning Commissioning via Quick Setup (local display) If the measuring device is equipped with a local display, all device-specific parameters important for standard measuring operation can be configured easily and quickly using the Quick Setup menus described below (Fig.
  • Page 52 Commissioning Proline Promass 83 FOUNDATION Fieldbus The "automatic parameterization of the display" option contains the following basic settings/factory settings: Main line = Mass flow Additional line = Totalizer 1 Information line = Operating/system conditions The existing (selected) settings remain. Note! •...

  • Page 53: Quick Setup "Gas Measurement

    Proline Promass 83 FOUNDATION Fieldbus Commissioning 6.4.2 Quick Setup "Gas Measurement" The measuring device is not only suitable for measuring liquid flow. Direct mass measurement based on the Coriolis principle is also possible for measuring the flow rate of gases. For this purpose, the corresponding device functions can be configured via a configuration program or via the local display.
  • Page 54 Commissioning Proline Promass 83 FOUNDATION Fieldbus Recommended settings: Quick Setup "Gas Measurement" HOME position → F → MEASURED VARIABLE (A) MEASURED VARIABLE → O → QUICK SETUP (B) QUICK SETUP → N → QS GAS MEASUREMENT (1004) Setting to be selected ( O/S) Function No.

  • Page 55: Data Backup/Transmission

    Proline Promass 83 FOUNDATION Fieldbus Commissioning 6.4.3 Data backup/transmission Using the T-DAT SAVE/LOAD function, you can transfer data (device parameters and settings) between the T-DAT (exchangeable memory) and the EEPROM (device storage unit). This is required in the following instances: •...

  • Page 56: Device Configuration

    Commissioning Proline Promass 83 FOUNDATION Fieldbus Device configuration 6.5.1 Concentration measurement The measuring device determines three primary variables simultaneously: • Mass flow • Fluid density • Fluid temperature As standard, these measured variables allow other process variables to be calculated, such as volume flow, reference density (density at reference temperature) and corrected volume flow.
  • Page 57 Proline Promass 83 FOUNDATION Fieldbus Commissioning XXX.XXX.XX HOME POSITION Special Density function functions Configuration 7000 Density function Selection ° API ° BAUME % MASS ° BRIX FLEXIBLE ° PLATO % VOLUME ° BALLING 7001 7007 7007 see separate Expansion Expansion...
  • Page 58 Commissioning Proline Promass 83 FOUNDATION Fieldbus Brixgrade (density of hydrous saccharose solution in kg/m °Brix 10°C 20°C 30°C 40°C 50°C 60°C 70°C 80°C 1233.87 1229.64 1224.98 1219.93 1214.50 1208.70 1202.56 1196.11 1262.11 1257.64 1252.79 1247.59 1242.05 1236.18 1229.98 1223.53 1291.31 1286.61...
  • Page 59 Proline Promass 83 FOUNDATION Fieldbus Commissioning Example: The following is a concentration table from a reference source. Temperature 10°C 15°C 20°C 25°C 30°C Density 825 kg/m 93.6% 92.5% 91.2% 90.0% 88.7% 840 kg/m 89.3% 88.0% 86.6% 85.2% 83.8% 855 kg/m 84.4%...
  • Page 60 Commissioning Proline Promass 83 FOUNDATION Fieldbus Calculation type "% MASS 2D" or "% VOLUME 2D" For this type of calculation, the relationship between the two variables concentration and reference density must be known (2-dimensional), e.g. by a table. In this way, the concentration can be calculated from the measured density and temperature values by means of the following formula (the coefficients AO, A1, etc.

  • Page 61: Advanced Diagnostic Functions

    Proline Promass 83 FOUNDATION Fieldbus Commissioning 6.5.2 Advanced diagnostic functions Changes to the measuring system, e.g. due to coating buildup or corrosion and abrasion on the measuring tubes, can be detected at an early stage by means of the optional software package "Advanced Diagnostics"...
  • Page 62 Commissioning Proline Promass 83 FOUNDATION Fieldbus Triggering warning messages If required, a limit value can be assigned to all the process/device parameters relevant to the diagnostic functions. A warning message is triggered if this limit value is exceeded → function WARNING MODE (7403).

  • Page 63: Adjustment

    • If the fluid is very difficult to measure (e.g. containing entrained solids or gas) it may prove impossible to obtain a stable zero point despite repeated zero point adjustments. In instances of this nature, please contact your Endress+Hauser service center. • You can view the currently valid zero point value using the following function: –...
  • Page 64 Commissioning Proline Promass 83 FOUNDATION Fieldbus Performing zero point adjustment with a configuration program Operate the system until operating conditions have settled. Stop the flow (v = 0 m/s). Check the shutoff valves for leaks. Check that operating pressure is correct.

  • Page 65: Density Adjustment

    Proline Promass 83 FOUNDATION Fieldbus Commissioning 6.6.2 Density adjustment It is always advisable to perform density adjustment when optimum measuring accuracy is required for calculating density-dependent values. 1-point density adjustment (with one fluid): This type of density adjustment is necessary under the following circumstances: •...
  • Page 66 Commissioning Proline Promass 83 FOUNDATION Fieldbus In the "Adj. - Meas.Fluid 1" parameter, select "START" and send this setting to the field device. The measuring device measures the current density of the fluid (measured density value) for ten seconds. 10. Only for 2-point density adjustment: In the "Adj. - Dens.Set.Value 2" parameter, enter the desired target density value of the second fluid (input range = current density value ±10%).
  • Page 67 Proline Promass 83 FOUNDATION Fieldbus Commissioning Setting to be selected ( O or S ) Function Function name (to next function with F ) Use P to select START and press F . 6484 MEASURE FLUID 1 The message "DENSITY MEASUREMENT RUNNING" appears on the display for approximately 10 seconds.

  • Page 68: Gas Measurement

    Commissioning Proline Promass 83 FOUNDATION Fieldbus Gas measurement This measuring device is not only suitable for measuring liquid flow. Direct mass measurement based on the Coriolis principle is also possible for measuring the flow rate of gases. Note! • Only mass and corrected volume flow can be measured and output with the gas measurement mode.

  • Page 69: Purge And Pressure Monitoring Connections

    • Use only low gauge pressure to purge. Maximum pressure 5 bar. Data storage device (HistoROM), F-CHIP At Endress+Hauser, the term HistoROM refers to various types of data storage modules on which process and measuring device data are stored. By plugging and unplugging such modules, device configurations can be duplicated onto other measuring devices to cite just one example.

  • Page 70: Maintenance

    Maintenance Proline Promass 83 FOUNDATION Fieldbus Maintenance No special maintenance work is required. Exterior cleaning When cleaning the exterior of measuring devices, always use cleaning agents that do not attack the surface of the housing and the seals. Cleaning with pigs (Promass H, I, S, P) If pigs are used for cleaning, it is essential to take the inside diameters of measuring tube and process connection into account.

  • Page 71: Accessories

    Proline Promass 83 FOUNDATION Fieldbus Accessories Accessories Various accessories, which can be ordered separately from Endress+Hauser, are available for the transmitter and the sensor. Detailed information on the order code in question can be obtained from your Endress+Hauser representative. Device-specific accessories...

  • Page 72: Service-Specific Accessories

    Accessories Proline Promass 83 FOUNDATION Fieldbus Service-specific accessories Accessory Description Order code Applicator Software for selecting and configuring flowmeters. DXA80 - * Applicator can be downloaded from the Internet or ordered on CD-ROM for installation on a local PC. Contact your Endress+Hauser representative for more information.

  • Page 73: Troubleshooting

    Caution! In the event of a serious fault, a flowmeter might have to be returned to the manufacturer for repair. Important procedures must be carried out before you return a flowmeter to Endress+Hauser. → Page 8 Always enclose a duly completed "Declaration of contamination" form. You will find a preprinted form at the back of this manual.
  • Page 74 Troubleshooting Proline Promass 83 FOUNDATION Fieldbus Check device fuse → Page 92 Device fuse 85 to 260 V AC: 0.8 A slow-blow / 250 V (continued) 20 to 55 V AC and 16 to 62 V DC: 2 A slow-blow / 250 V...
  • Page 75 Proline Promass 83 FOUNDATION Fieldbus Troubleshooting Analog Input fct. block: The 4. Make sure that the L_TYPE parameter (type of linearization) is already configured in the Analog Input Function Block → Page 87. operating mode cannot be " set to AUTO.
  • Page 76 Troubleshooting Proline Promass 83 FOUNDATION Fieldbus Error messages Error messages in the FF configuration program → Page 78 Error messages on the local display → Page 78 Æ Other error (without error message) Diagnosis and rectification → Page 86 Some other error has occurred.

  • Page 77: System/Process Error Messages

    Proline Promass 83 FOUNDATION Fieldbus Troubleshooting System/process error messages General notes The flowmeter assigns current system and process errors to two error message types in accordance with a predefined algorithm and classifies them accordingly: Error message type "Fault message": • A message of this type immediately interrupts or stops measurement.

  • Page 78: List Of System Error Messages

    Troubleshooting Proline Promass 83 FOUNDATION Fieldbus 9.2.1 List of system error messages Error messages: Transducer Block Analog Input Function Block Reason for error/rectification (spare parts → Page 87 ff.) FOUNDATION Fieldbus error messages error messages (FF)* (Local display) * With FOUNDATION Fieldbus, error messages are displayed in the "Diagnosis" Transducer Block (base index: 1600) by means of the "Diag.
  • Page 79 Proline Promass 83 FOUNDATION Fieldbus Troubleshooting Error messages: Transducer Block Analog Input Function Block Reason for error/rectification (spare parts → Page 87 ff.) FOUNDATION Fieldbus error messages error messages (FF)* (Local display) Device status message (FF): BLOCK_ERR = Device needs OUT.
  • Page 80 Troubleshooting Proline Promass 83 FOUNDATION Fieldbus Error messages: Transducer Block Analog Input Function Block Reason for error/rectification (spare parts → Page 87 ff.) FOUNDATION Fieldbus error messages error messages (FF)* (Local display) Device status message (FF): BLOCK_ERR = Device needs OUT.
  • Page 81 Proline Promass 83 FOUNDATION Fieldbus Troubleshooting Error messages: Transducer Block Analog Input Function Block Reason for error/rectification (spare parts → Page 87 ff.) FOUNDATION Fieldbus error messages error messages (FF)* (Local display) Device status message (FF): BLOCK_ERR = Device needs OUT.
  • Page 82 Troubleshooting Proline Promass 83 FOUNDATION Fieldbus Error messages: Transducer Block Analog Input Function Block Reason for error/rectification (spare parts → Page 87 ff.) FOUNDATION Fieldbus error messages error messages (FF)* (Local display) Device status message (FF): BLOCK_ERR = Device needs OUT.
  • Page 83 Proline Promass 83 FOUNDATION Fieldbus Troubleshooting Error messages: Transducer Block Analog Input Function Block Reason for error/rectification (spare parts → Page 87 ff.) FOUNDATION Fieldbus error messages error messages (FF)* (Local display) No. # 8xx → Application error Device status message (FF): BLOCK_ERR = Device needs OUT.

  • Page 84: List Of Process Error Messages

    Troubleshooting Proline Promass 83 FOUNDATION Fieldbus 9.2.2 List of process error messages Error messages: FOUNDATION Fieldbus Transducer Block Analog Input Function Block Cause/remedy (Spare parts → Page 87 ff.) (FF)* error messages error messages (Local display) * With FOUNDATION Fieldbus, error messages are displayed in the "Diagnosis" Transducer Block (base index: 1600) by means of the "Diag.
  • Page 85 Proline Promass 83 FOUNDATION Fieldbus Troubleshooting Error messages: FOUNDATION Fieldbus Transducer Block Analog Input Function Block Cause/remedy (Spare parts → Page 87 ff.) (FF)* error messages error messages (Local display) Device status message (FF): OUT. QUALITY = UNCERTAIN Cause: Current of the measuring tube The maximum current value for the measuring OUT.

  • Page 86: Process Errors Without Messages

    • Nameplate specifications: order code and serial number → Page 9 ff. Return devices to E+H You return a measuring device to Endress+Hauser for calibration or repair. Always enclose a duly completed "Declaration of contamination" form with the flowmeter. You will find a preprinted form at the back of this manual.

  • Page 87: Spare Parts

    Note! You can order spare parts directly from your Endress+Hauser service organization by providing the serial number printed on the transmitter's nameplate. → Page 9 Spare parts are shipped as sets comprising the following parts: •...

  • Page 88: Removing And Installing Electronics Boards

    Troubleshooting Proline Promass 83 FOUNDATION Fieldbus Removing and installing electronics boards 9.5.1 Field housing: removing and installing electronics boards (Fig. 35) Warning! • Risk of electric shock. Exposed components carry dangerous voltages. Make sure that the power supply is switched off before you remove the cover of the electronics compartment.
  • Page 89 Proline Promass 83 FOUNDATION Fieldbus Troubleshooting a0004743 Fig. 35: Field housing: removing and installing electronics boards Local display Latch Ribbon cable (display module) Screws of electronics compartment cover Aperture for installing/removing boards Power unit board Amplifier board Signal cable (sensor)

  • Page 90: Wall-Mount Housing: Removing And Installing Electronics Boards (Fig. 36)

    Troubleshooting Proline Promass 83 FOUNDATION Fieldbus 9.5.2 Wall-mount housing: removing and installing electronics boards (Fig. 36) Warning! • Risk of electric shock. Exposed components carry dangerous voltages. Make sure that the power supply is switched off before you remove the cover of the electronics compartment.
  • Page 91 Proline Promass 83 FOUNDATION Fieldbus Troubleshooting a0004744 Fig. 36: Wall-mount housing: removing and installing electronics boards Housing cover Electronics module Ribbon cable (display module) Screws of electronics compartment cover Aperture for installing/removing boards Power unit board Amplifier board Signal cable (sensor)

  • Page 92: Replacing The Device Fuse

    Troubleshooting Proline Promass 83 FOUNDATION Fieldbus Replacing the device fuse Warning! Risk of electric shock. Exposed components carry dangerous voltages. Make sure that the power supply is switched off before you remove the cover of the electronics compartment. The main fuse is on the power unit board. → Fig. 37 The procedure for replacing the fuse is as follows: Switch off power supply.

  • Page 93: Software History

    Proline Promass 83 FOUNDATION Fieldbus Troubleshooting Software history Date Software version Software modifications Documentation 01.2007 2.00.XX New sensors: BA65D/06/en/12.06 – Promass S 71035081 – Promass P Shorter execution times: – Analog Input Function Blocks 1 to 7 (20 ms) – Discrete Output Function Block (20 ms) –...
  • Page 94 Troubleshooting Proline Promass 83 FOUNDATION Fieldbus Date Software version Software modifications Documentation 04.2002 Amplifier: Software expansion: BA065D/06/en/04.02 1.02.02 Promass H 50098622 03.2002 Communication module: Software adjustments: 1.01.00 FOUNDATION Fieldbus software merged (Prosonic Flow 93, Promag 53, Promass 83) – Device Revision 2, DD Revision 1 –...

  • Page 95: Technical Data

    Proline Promass 83 FOUNDATION Fieldbus Technical data Technical data 10.1 Technical data at a glance 10.1.1 Applications → Page 7 10.1.2 Function and system design Measuring principle Mass flow measurement by the Coriolis principle → Page 9 Measuring system 10.1.3...
  • Page 96 Technical data Proline Promass 83 FOUNDATION Fieldbus Measuring ranges for liquids (Promass A): Range for full scale values (liquids) g to g min(F) max(F) 1/24" 0 to 20 kg/h 0 to 0.7 lb/min 1/12" 0 to 100 kg/h 0 to 3.7 lb/min 1/8"...

  • Page 97: Output

    Proline Promass 83 FOUNDATION Fieldbus Technical data Operable flow range Greater than 1000 : 1. Flows above the preset full scale value do not overload the amplifier, i.e. totalizer values are registered correctly. 10.1.4 Output Output signal Physical data transmission (Physical Layer Type): •...
  • Page 98 Technical data Proline Promass 83 FOUNDATION Fieldbus Signal coding Manchester II Bus times Min. idle time between two telegrams: MIN_INTER_PDU_DELAY = 6 octet time (transfer time per octet) Block information, Block Base index Execution time [ms] Functionality execution time Resource Block –...
  • Page 99 Proline Promass 83 FOUNDATION Fieldbus Technical data Block Process variable Channel parameter (AI Block) The following measured variables are available if the "Concentration measurement" add-on is installed in the measuring device (order option) "Concentration" Transducer Block Target fluid mass flow...

  • Page 100: Power Supply

    Technical data Proline Promass 83 FOUNDATION Fieldbus Status change Action Discrete state 0 → Discrete state 7 Reset Totalizer 1, 2, 3 Discrete state 0 → Discrete state 8 Reset Totalizer 1 Discrete state 0 → Discrete state 9 Reset Totalizer 2 Discrete state 0 →...

  • Page 101: Performance Characteristics

    Proline Promass 83 FOUNDATION Fieldbus Technical data Cable entries Power supply and signal cables (inputs/outputs): • Cable entry M20 x 1.5 (8 to 12 mm) • Threads for cable entries, 1/2" NPT, G 1/2" Connecting cable for remote version: • Cable entry M20 x 1.5 (8 to 12 mm) •...
  • Page 102 Technical data Proline Promass 83 FOUNDATION Fieldbus Mass flow (gas) Promass F: ±0.35% ± [(zero point stability : measured value) ⋅ 100]% o.r. Promass M, A, I, S, P: ±0.50% ± [(zero point stability : measured value) ⋅ 100]% o.r.
  • Page 103 Proline Promass 83 FOUNDATION Fieldbus Technical data Zero point stability (Promass E, H, S, P): Maximum full scale value Zero point stability [kg/h] [lb/min] [kg/h] [lb/min] 3/8" 2000 73.5 0.200 0.007 1/2" 6500 0.650 0.024 1" 18000 1.80 0.066 1 ½"...
  • Page 104 Technical data Proline Promass 83 FOUNDATION Fieldbus Density (liquid) 1 g/cc = 1 kg/l After field density calibration or under reference conditions: Promass F, S, P: ±0.0005 g/cc Promass M, E, A, H: ±0.0010 g/cc Promass I: ±0.0020 g/cc Special density calibration (optional), not for high-temperature version (calibration range = 0.8 to 1.8 g/cc, 5 to 80 °C (41 to 176 °F)):...
  • Page 105 Proline Promass 83 FOUNDATION Fieldbus Technical data Mass flow (gas): Promass F, M, A, I, S, P: ±0.25% ± [1/2 ⋅ (zero point stability : measured value) ⋅ 100]% o.r. Promass E: ±0.35% ± [1/2 ⋅ (zero point stability : measured value) ⋅100]% o.r.
  • Page 106 Technical data Proline Promass 83 FOUNDATION Fieldbus Influence of medium pressure The following section shows the effect on accuracy of mass flow due to a difference between calibration pressure and process pressure. Promass F, M: Promass F, Promass F high temperature...

  • Page 107: Operating Conditions: Installation

    Proline Promass 83 FOUNDATION Fieldbus Technical data Promass I: % o.r./bar % o.r./psi 3/8" 0.006 0.0004 1/2" 0.004 0.0003 15 FB 1/2" FB 0.006 0.0004 1" 0.006 0.0004 25 FB 1" FB No influence 1 ½" No influence 40 FB 1 ½"...

  • Page 108: Operating Conditions: Process

    Technical data Proline Promass 83 FOUNDATION Fieldbus Vibration resistance Acceleration up to 1 g, 10 to 150 Hz, following IEC 68-2-6 CIP cleaning SIP cleaning Electromagnetic compatibility To EN 61326/A1 (IEC 1326) and NAMUR Recommendation NE 21 (EMC) 10.1.9 Operating conditions: Process...
  • Page 109 Proline Promass 83 FOUNDATION Fieldbus Technical data Pressure ranges of secondary containment: Promass F: DN 8 to 50: 40 bar (580 psi) DN 80: 25 bar (362 psi) DN 100 to 150: 16 bar (232 psi) DN 250: 10 bar (145 psi)
  • Page 110 Technical data Proline Promass 83 FOUNDATION Fieldbus Pressure loss (SI units) Pressure loss depends on the fluid properties and on its flow rate. The following formulas can be used to approximately calculate the pressure loss: Pressure loss formulas for Promass F, M, E 2 ·...
  • Page 111 Proline Promass 83 FOUNDATION Fieldbus Technical data Pressure loss coefficient for Promass F d [m] 5.35 ⋅ 10 5.70 ⋅ 10 9.60 ⋅10 1.90 ⋅ 10 –3 8.30 ⋅ 10 5.80 ⋅ 10 1.90 ⋅ 10 10.60 ⋅ 10 –3 12.00 ⋅...
  • Page 112 Technical data Proline Promass 83 FOUNDATION Fieldbus Pressure loss coefficient for Promass M d [m] 5.53 ⋅ 10 5.2 ⋅ 10 8.6 ⋅10 1.7 ⋅ 10 –3 8.55 ⋅ 10 5.3 ⋅ 10 1.7 ⋅ 10 9.7 ⋅ 10 –3 11.38 ⋅...
  • Page 113 Proline Promass 83 FOUNDATION Fieldbus Technical data Pressure loss coefficient for Promass E d [m] 5.35 ⋅ 10 5.70 ⋅ 10 7.91 ⋅10 2.10 ⋅ 10 –3 8.30 ⋅ 10 7.62 ⋅ 10 1.73 ⋅ 10 2.13 ⋅ 10 –3 12.00 ⋅...
  • Page 114 Technical data Proline Promass 83 FOUNDATION Fieldbus Pressure loss coefficient for Promass A d [m] 1.1 ⋅ 10 1.2 ⋅ 10 1.3 ⋅10 –3 1.8 ⋅ 10 1.6 ⋅ 10 2.4 ⋅ 10 –3 3.5 ⋅ 10 9.4 ⋅ 10 2.3 ⋅...
  • Page 115 Proline Promass 83 FOUNDATION Fieldbus Technical data Pressure loss coefficient for Promass H d [m] 8.51 ⋅ 10 8.04 ⋅ 10 3.28 ⋅10 1.15 ⋅ 10 –3 12.00 ⋅ 10 1.81 ⋅ 10 9.99 ⋅ 10 1.87 ⋅ 10 –3 17.60 ⋅...
  • Page 116 Technical data Proline Promass 83 FOUNDATION Fieldbus Pressure loss coefficient for Promass I d [m] 8.55 ⋅ 10 8.1 ⋅ 10 3.9 ⋅10 129.95 ⋅ 10 –3 11.38 ⋅ 10 2.3 ⋅ 10 1.3 ⋅ 10 23.33 ⋅ 10 –3 17.07 ⋅...
  • Page 117 Pressure loss diagram for water Pressure loss (US units) Pressure loss depends on fluid properties nominal diameter. Consult Endress+Hauser for Applicator PC software to determine pressure loss in US units. All important instrument data are contained in the Applicator software program in order to optimize the design of the measuring system. The software is used for the following calculations: •...

  • Page 118: 10.1.10 Mechanical Construction

    Technical data Proline Promass 83 FOUNDATION Fieldbus 10.1.10 Mechanical construction Design / dimensions The dimensions and lengths of the sensor and transmitter are provided in the separate "Technical Information" document on the device in question. This can be downloaded as a PDF file from www.endress.com.
  • Page 119 Proline Promass 83 FOUNDATION Fieldbus Technical data Promass S / DN Compact version Remote version Promass P / DN Compact version Remote version Weight (US units) All values (weight) refer to devices with EN/DIN PN 40 flanges. Weight data in [lb].
  • Page 120 Technical data Proline Promass 83 FOUNDATION Fieldbus Promass I/ DN 3/8" 1/2" 1/2" FB 1 ½" 1 ½" FB 3/8" 3/8"FB 1" 1" FB 2" Compact version Remote version FB = Full bore versions of Promass I Promass S / DN 3/8"...
  • Page 121 Proline Promass 83 FOUNDATION Fieldbus Technical data Process connections Promass F: • Flanges EN 1092-1 (DIN 2501) / in according to ASME B16.5 / JIS B2238 → stainless steel 1.4404/316L • Flanges EN 1092-1 (DIN 2501) / in according to ASME B16.5 / JIS B2238 →...
  • Page 122 Technical data Proline Promass 83 FOUNDATION Fieldbus Promass I: • Flanges EN 1092-1 (DIN 2501) / in according to ASME B16.5 / JIS B2238 → stainless steel 1.4301/304 • Flange DIN 11864-2 Form A (flat flange) → titanium grade 2 •...

  • Page 123: 10.1.11 Human Interface

    Proline Promass 83 FOUNDATION Fieldbus Technical data Promass H: • Zirconium 702/R 60702 Promass I: • Titanium grade 9 • Titanium grade 2 (flange disk) Promass P: • Stainless steel 1.4435/316L Seals: Promass F, E, H, I, S, P: • Welded process connections without internal seals Promass M: •...

  • Page 124: 10.1.12 Certificates And Approvals

    CE mark The measuring system is in conformity with the statutory requirements of the EC Directives. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. C-tick mark The measuring system meets the EMC requirements of the Australian Communications and Media Authority (ACMA).

  • Page 125: 10.1.14 Accessories

    Proline Promass 83 FOUNDATION Fieldbus Technical data 10.1.14 Accessories Various accessories, which can be ordered separately from Endress+Hauser, are available for the transmitter and the sensor → Page 71 10.1.15 Documentation • Flow measuring technology (FA005D/06/en) • Technical Information Promass 80F, 80M, 83F, 83M (TI 053D/06/en) •...

  • Page 126: Index

    Proline Promass 83 FOUNDATION Fieldbus Index Index Error types (system and process errors) ....40 European Pressure Equipment Directive ... . . 124 Accessories.
  • Page 127 Proline Promass 83 FOUNDATION Fieldbus Index Process error messages......84 Programming mode Language group....... . 123 Disabling .
  • Page 128 Proline Promass 83 FOUNDATION Fieldbus Index Thermal insulation, general notes ....19 ToF Tool – Fieldtool Package ....41, 72 Transmitter Installing the wall-mount housing .
  • Page 132 www.endress.com/worldwide BA065D/06/en/12.06 71035081 FM+SGML6.0 ProMoDo...
