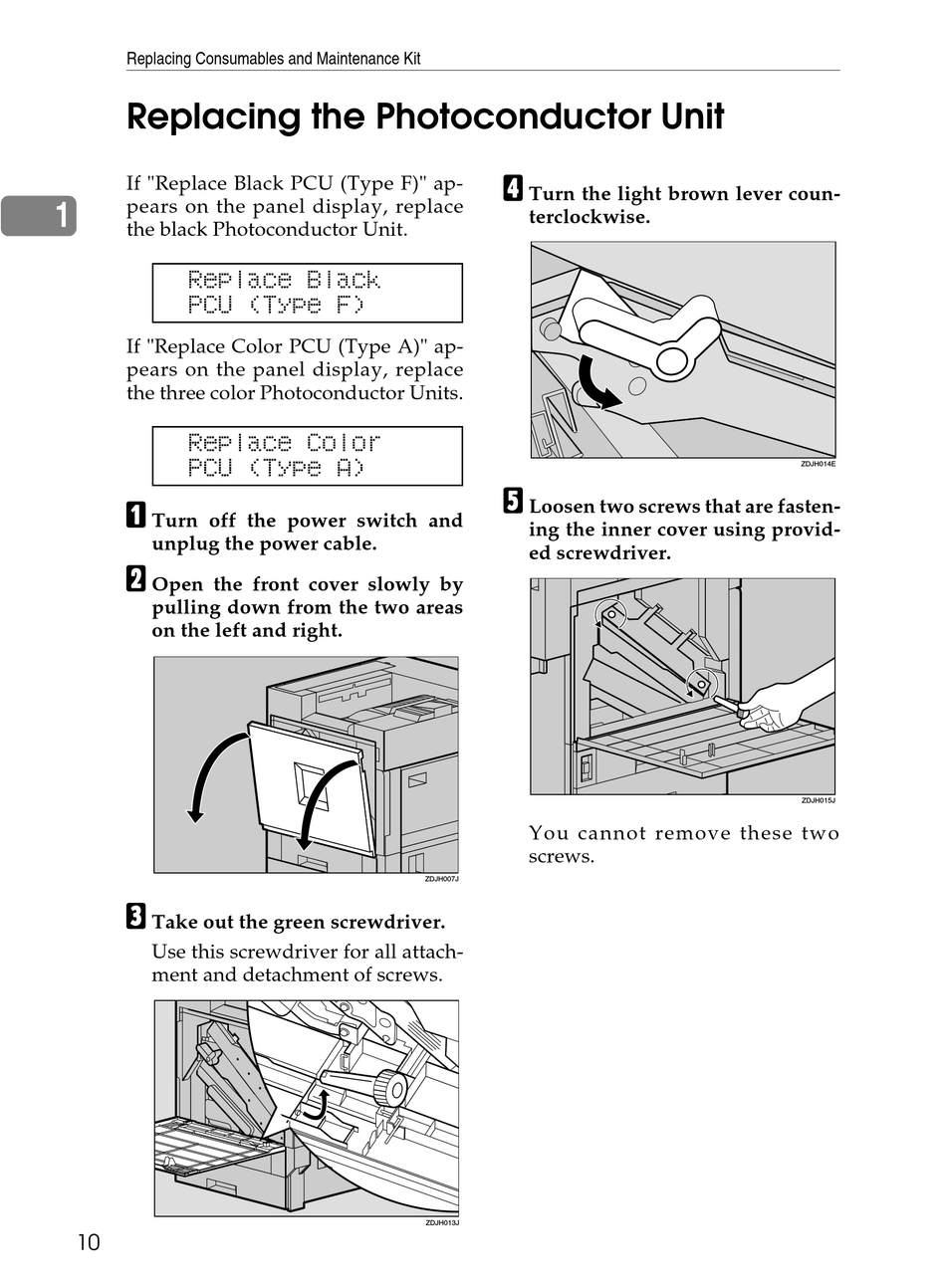

Replacing Consumables and Maintenance Kit
Replacing the Photoconductor Unit
If "Replace Black PCU (Type F)" ap-
pears on the panel display, replace
1
the black Photoconductor Unit.
Replace Black
PCU (Type F)
If "Replace Color PCU (Type A)" ap-
pears on the panel display, replace
the three color Photoconductor Units.
Replace Color
PCU (Type A)
A
Turn off the power switch and
unplug the power cable.
B
Open the front cover slowly by
pulling down from the two areas
on the left and right.
C
Take out the green screwdriver.
Use this screwdriver for all attach-
ment and detachment of screws.
10
D
Turn the light brown lever coun-
terclockwise.
E
Loosen two screws that are fasten-
ing the inner cover using provid-
ed screwdriver.
You cannot remove these two
screws.
ZDJH007J
ZDJH013J
ZDJH014E
ZDJH015J
