Retighten the terminal screws until snug, ensuring that the power
leads are secure. Supply power to the unit by plugging the power
supply into a proper source.
Note: The power LED illuminates to show that the camera is
receiving power. If it does not illuminate, check the terminal block
connections and the power source
For UVC-6120-1-P2:
Connect the power cable of a high voltage camera to either a 230
VAC or a 120 VAC power supply outlet.
Programming
Once the camera hardware has been installed, the camera can then
be configured. Program the camera by attaching a standard video
monitor to the system.
OSD control pad
The on-screen display (OSD) control pad (see Figure 1/Figure 2) is a
five-direction button that lets you manually control the camera
functions. Table 1 below lists the OSD control pad functions and
describes their use.
Table 1 Description of the OSD control pad
Pad direction
Description
Up
Moves the cursor upward to select an item
Left
Moves the cursor left to select or adjust the options
of the selected item.
Right
Moves the cursor to the right to select or adjust the
options of the selected item.
Down
Moves the cursor downward to select an item.
Enter
Press the center of the control pad to display the
Setup menu. If the selected item has its own menu,
press the control pad to enter a submenu.
Accessing the menus
Press
Enter
on the camera's OSD control pad to display the Main
menu (see Figure 4 below). The Main menu provides access to the
camera configuration options (Figure 5). The OSD display is only
available in English.
Figure 4: the Main menu screen
Table 2: Main menu description
Menu item
Description
General
Defines the camera ID, mirror, and digital noise
reduction (DNR) set up.
AE/WDR/BLC
Defines the lens type as well as the WDR/BLC,
AGC, and flicker set up.
WB mode
Defines the white balance (WB) set up.
D/N mode
Defines the day/night (D/N) set up.
Motion
Defines the motion detection set up.
Privacy
Defines privacy mask set up.
Pict adjust
Defines the image quality functions.
2 / 2
Menu item
Description
Reset camera
Resets the camera to factory default settings.
Exit & save
Exits the menu and returns to live mode. Saves
changes made.
Specifications
Model
Lens type
Power supply
24 VAC / 12 VDC
Current
Power consumption
Operating temperature
Weight
Dimensions (L × H × W)

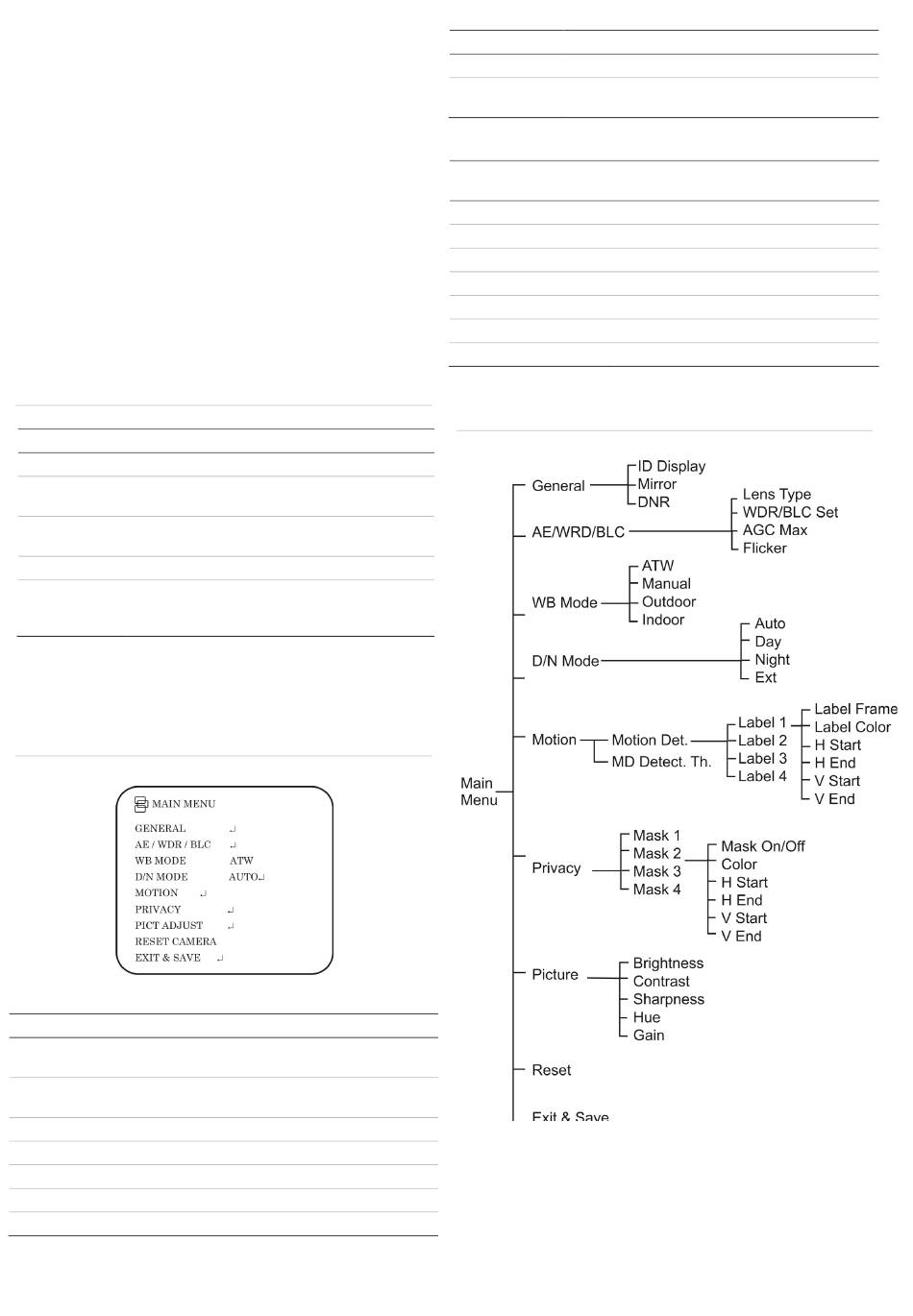

Menu map
Figure 5: Menu map
UVC-6120-1-P /
UVC-6120-1-P2
UVC-6120-1-N
C/CS-DC drive
96 to 240 VAC
300 mA
50 mA
Max. 3.6 W
Max. 4.8 W
-10 to +50 °C (14 to 122 °F)
390 g (0.85 lb.)
127 × 52 × 69 mm (5 × 2.04 × 2.71 in.)
P/N 1072552B • REV 1.0 • ISS 18JUN12
