SECTION 10—BATTERIES
Battery Tray

Connecting/Disconnecting Battery Cables

Connecting Battery Cables

Risk of Death or Serious Injury
Failure to observe these warnings can cause an electrical short resulting in death,
serious injury, or damage to the electrical system.
The POSITIVE (+) RED battery cable MUST connect to the POSITIVE (+) battery
terminal(s)/post(s).
The NEGATIVE (-) BLACK battery cable MUST connect to the NEGATIVE (-)
battery terminal(s)/post(s).
NEVER allow any of your tools and/or battery cable(s) to contact BOTH battery
post(s) at the same time. An electrical short may occur and serious injury or
damage may occur.
Install protective caps on positive and negative battery terminals.
Replace cable(s) immediately if cable(s) insulation becomes damaged.
DO NOT remove fuse or mounting hardware from POSITIVE (+) red battery cable
mounting screw.
®
Pronto M41
BLACK
Seat
Connector to
Controller
Shroud
Plug Into
Controller
Batteries
RED Connectors

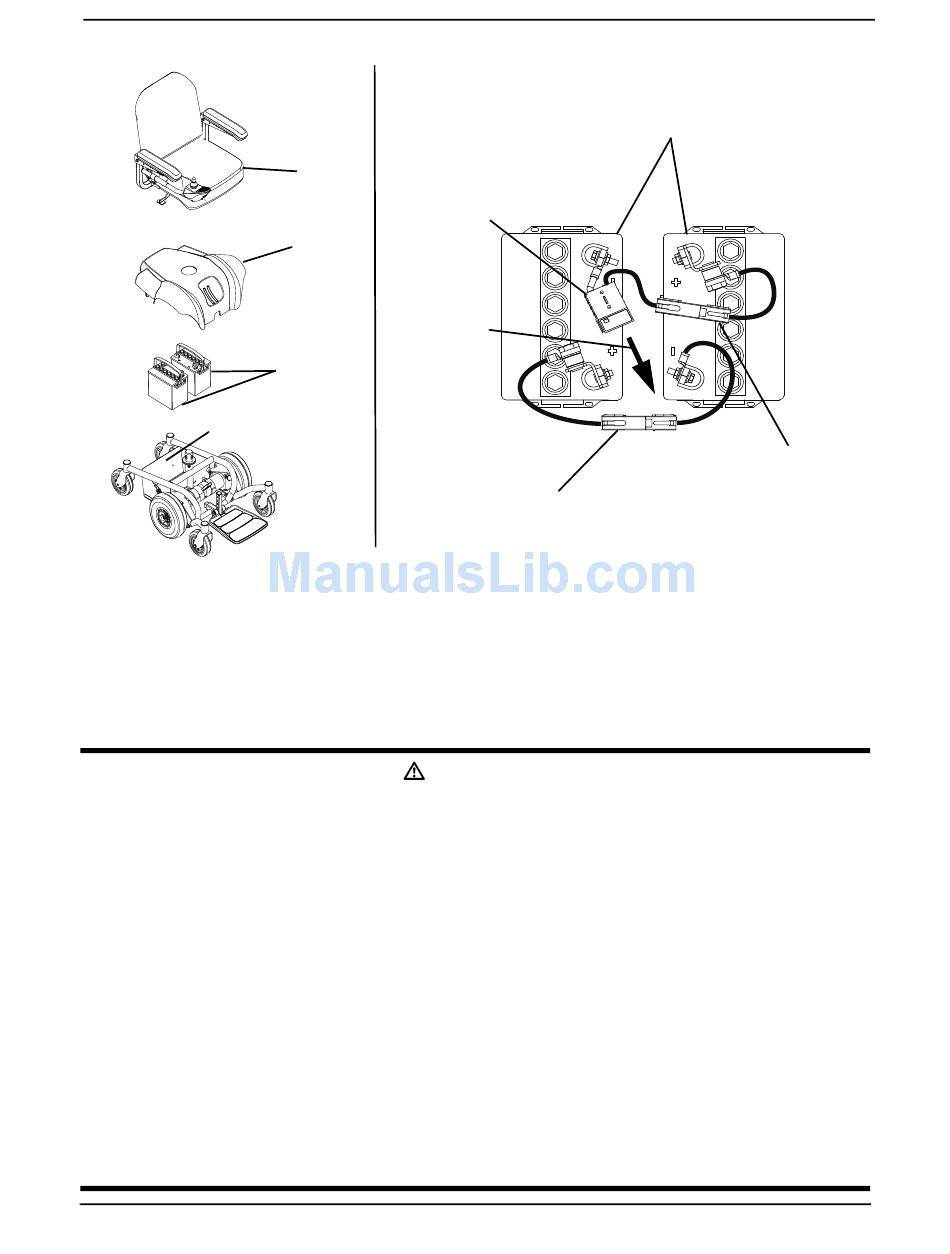

FIGURE 10.2 Removing/Installing Batteries
DANGER
62
Wiring Diagram
U1 Batteries
Left
Right
Battery
Battery
BLACK
Connectors
Part No 1145724
