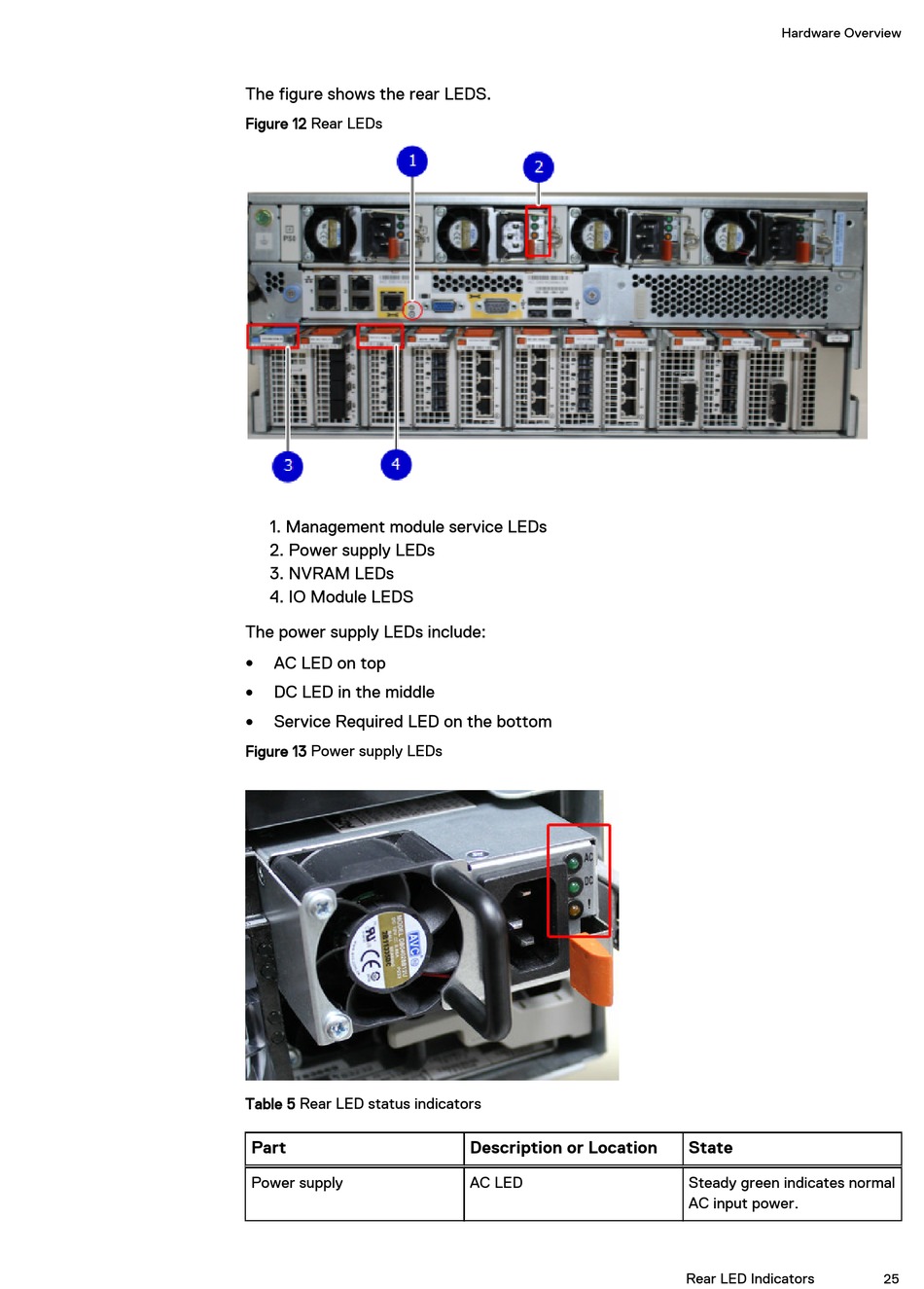

The figure shows the rear LEDS.
Figure 12 Rear LEDs
1. Management module service LEDs

2. Power supply LEDs

3. NVRAM LEDs
4. IO Module LEDS
The power supply LEDs include:
AC LED on top
l
DC LED in the middle
l
Service Required LED on the bottom
l
Figure 13 Power supply LEDs
Table 5 Rear LED status indicators
Part
Power supply
Description or Location
AC LED
Hardware Overview
State
Steady green indicates normal
AC input power.
