Bosch ICP-MAP5000-2 Installation Manual page 9

MAP 5000
Key
1
2
3
4
5

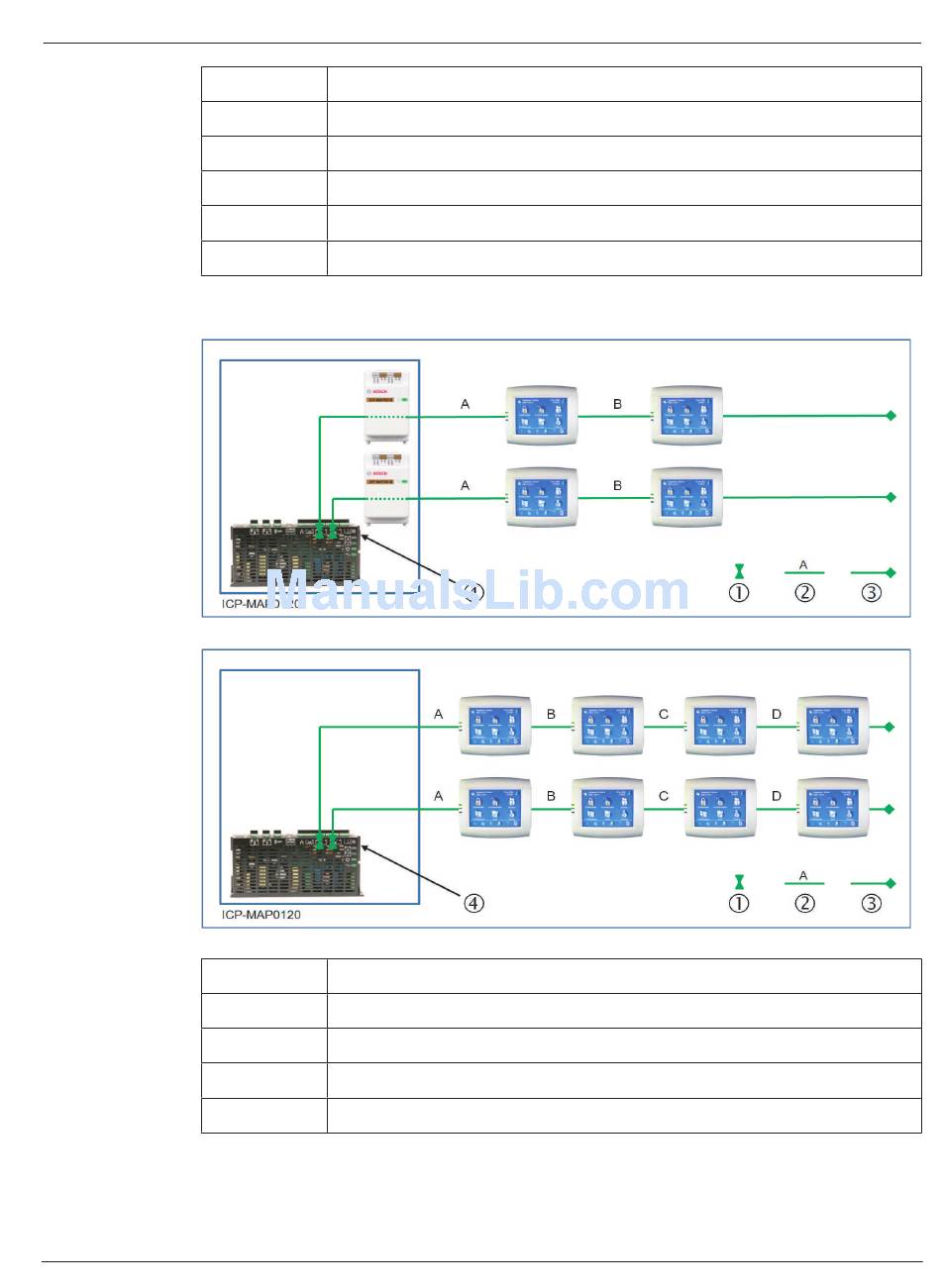

Remote operation with ICP-MAP0120 expansion enclosure
Figure 1.4: 2 LSN modules with up to 4 control centers
Figure 1.5: Up to 8 control centers
Key
1
2
3
4
Cable length
The maximum number of control centers that can be supplied by one power supply depends
greatly on the length and diameter of the cable used.
Bosch Sicherheitssysteme GmbH
Description
Current limitation
4-wire connection, take into account cable length
3-wire connection to the next power supply segment
Short-time current limitation to 3.2 A per output A / B
Current limitation to 1.6 A between internal and external BDB
Description
Current limitation
4-wire connection, take into account cable length, refer to , page 10
3-wire connection to the next power supply segment
Short-time current limitation to 3.2 A per output A / B
Installation manual
Introduction | en 9
2016.06 | 17 | F.01U.168.332
