MAP 5000

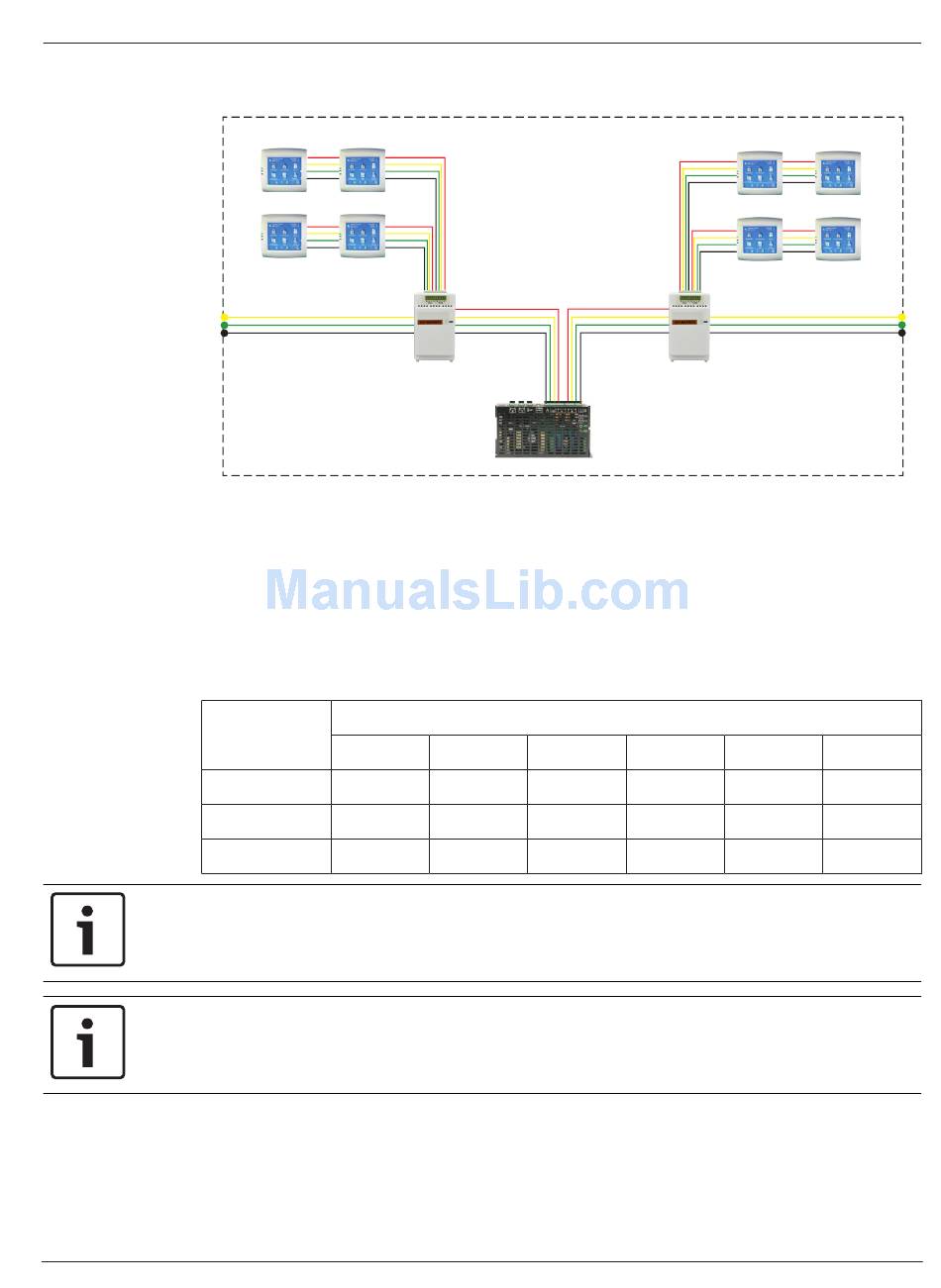

Wiring with two CAN splitter modules
Cable length
The cable length of the splitted external BDB depends on the number of added keypads and of
the cable diameter.
The maximum cable length is 500 m per BDB connector.
4
Relation of cable length, diameter and number of keypads
Cable
diameter
0.6 mm
0.8 mm
1.0 mm
Notice!
These cable lengths apply only for keypads with hardware version 1.0.2. The cable lengths of
older keypads are half of the lengths displayed in the table above.
Notice!
These cable lengths apply for keypads that are mounted with an equal cable distance in
between each other.
See also
–
Bosch Sicherheitssysteme GmbH
ICP-MAP0012
When planning the system with one or more CAN splitter modules, ensure to use an
appropriate cable length and diameter in accordance with the necessary number of
keypads.
1
225 m
400 m
620 m
Splitting the external data bus with a CAN splitter module, page 43
Number of keypads
2 3
225 m 200 m
400 m 350 m
620 m 550 m
Installation manual
Introduction | en
ICP-MAP0012
4 5
150 m 120 m
275 m 220 m
450 m 360 m
2016.06 | 17 | F.01U.168.332
11
6
100 m
200 m
300 m
