Ultrasonic Measurement
Prosonic Fmu 860...862
Level and flow measurement with ultrasonics
Simple to start up, easy to use, flexible

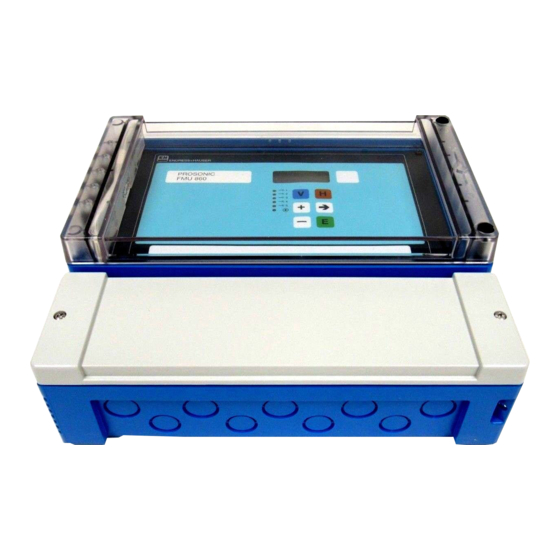

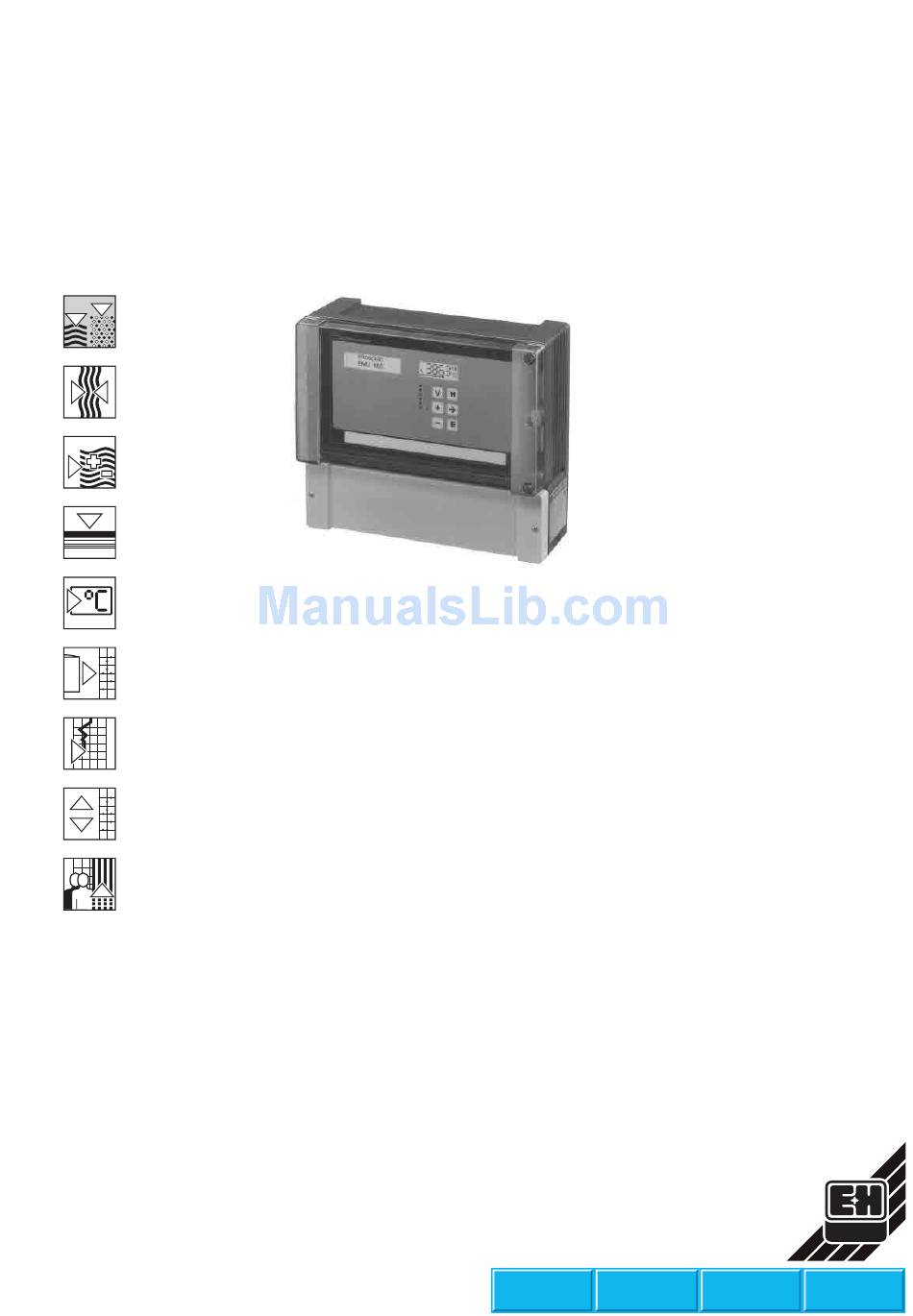

Field mounted ultrasonic transmitters
The Prosonic ultrasonic
transmitter in the IP 66
protective housing
Applications
Prosonic FMU 860...862 ultrasonic
transmitters are for use with the
Prosonic FDU 80...86 family of sensors.
The transmitter determines levels in
silos and tanks and calculates the
volume of solids and liquids they
contain.
With the appropriate certified sensor,
measurements can be made in
Explosion Hazardous Areas, zone 1 or in
combustible dusts.
When used for applications in fresh and
waste-water, Prosonic measures
• flow rates in flumes and weirs
• water levels
and can control screen cleaning and
pumps.
Endress
The Power of Know How
Home
Features and Benefits
A customised instrument programme for
the specific application.
Choice of transmitters
• For the field or control room
• Single or two-channel versions with
three or five relays, also with optional
totaliser
• With optional serial interface for
remote configuration (INTENSOR or
HART protocol)
• With RS-485 interface
Intelligent commissioning, ultrasonic
measurement par excellence
• Instrument parameters arranged in a
simple matrix
• Various linearisation functions,
totalisers, and all common Q/h curves
on call
• Quick commissioning and stable
measurement thanks to signal pattern
recognition by fuzzy logic and the
application parameter
+
Hauser
Contents
Print
Exit
Advertisement
Table of Contents
Related Manuals for Endress+Hauser Prosonic FMU 860
Summary of Contents for Endress+Hauser Prosonic FMU 860
- Page 1 • Quick commissioning and stable measurement thanks to signal pattern Applications recognition by fuzzy logic and the Prosonic FMU 860...862 ultrasonic application parameter transmitters are for use with the Prosonic FDU 80...86 family of sensors. The transmitter determines levels in...
- Page 2 Measuring System Transmitters and Applications Measuring System Prosonic FMU 860 for continuous level The measuring system consists of the Prosonic transmitter with a Prosonic and volumetric measurement of liquids sensor chosen according to the and solids in tanks and silos.
- Page 3 All Prosonic transmitters have an input for an external limit switch. Prosonic FMU 860 Installation on conveyor belts: rapid FMU 860 changes in load height are easily dealt with by the Prosonic FMU 860. Example of ultrasonic measurement for monitoring belt loads...
- Page 4 Input dialogue is based on the standard measuring line to one of five typical Endress+Hauser operating matrix in applications. • liquid which every input field is quickly and • vessels with rapid changes of liquid easily selected using the »V«...
-
Page 5: Remote Operation
INTENSOR circuit as long as there is a resistance protocol. It can be connected to all between its terminals which is larger Endress+Hauser instruments with an than the minimum communications INTENSOR protocol. resistor. • Universal HART communicator via the... - Page 6 Other System Components with an Connecting to Process Control System Integration RS-485 Rackbus interface Systems Hardware The Prosonic FMU 86… can be easily • For connecting to a personal linked to existing process control computer via an RS-485 card or systems via the RS-485 interface.
- Page 7 Housing Versions Housing Versions Prosonic transmitters for mounting in the field or control room are available with different electronic housings. • Field operation. The transmitter electronics are built into an IP 66 housing. The transmitter is parameterised via an operating unit with a keyboard and display or –...
- Page 8 Explosion Hazardous Areas Mounting For certified systems, the sensor only may be installed in the explosion hazardous area. The transmitter must always be installed in a safe area. All local regulations concerning installation must be observed. min. 52 Ø Mounting and dimensions of the •...
- Page 9 All-Weather Cover for the Protective Accessories Housing • Material: aluminium, blue lacquered Order No.: 919567-0000 • Material: stainless steel 1.4301 Order No.: 919567-0001 • Weight: approx. 1 kg • Mounting screws supplied. Post Mounting • Material: galvanised steel Order No.: −...
- Page 10 Spare Sensor Cable Overvoltage Protection and Power Supply Unit for Sensor Heating in Connection from the Prosonic FMU 86… transmitter to the sensors IP 66 Protective Housing • FDU 80, FDU 80 F, FDU 81, FDU 81 F, Power supply unit (24 V DC) for sensor FDU 82 heating with integrated overvoltage Order No.
- Page 11 L+ L- L1 N 1 2 3 80 81 82 90 91 92 for FMU 862 termnals fitted to for FMU 862 only the version with only 5 relays only Terminal strip of the FMU 860...862. The electrically isolated areas are separated by thick lines e.g.
-
Page 12: Technical Data
Technical Data General Information Manufacturer Endress+Hauser GmbH+Co. Instrument Ultrasonic transmitter Designation Prosonic FMU 860, 861, 862 Technical documentation TI 190F/00/en Version 07.99 Technical data according to DIN 19259 Application Non-contact,, continuous level measurement in liquids and solids, for determining flowrates in open channels and weirs, water levels or for controlling screens and pumps... - Page 13 Relays Version optional three or five independent relays each with one potential-free change-contact always three relays only with RS-485 interface Functions – limit value – alarm relay – trend – time pulses (FMU 861 and FMU 862 only) – max. counting frequency 2 Hz, pulse width 200 ms –...
- Page 14 Maximum values: to 6 Ω per wire, max. 60 nF Certificates and Approvals Ignition protection see Product Structure Page 15 CE Mark By attaching the CE Mark,, Endress+Hauser confirms that the instrument fulfils all the requirements of the relevant EC directives. Order Code See "Product Structure"...
- Page 15 Product Structure Prosonic Transmitter FMU 86… Instrument versions One channel for level measurement with ultrasonics One channel for flow measurement with ultrasonics Two channels for flow and/or level measurement, differential measurement Shipbuilding approvals: Certificates * GL; DNV, LR, ABS, BV, RINA on request R Standard (non-certified transmitter, also for all certified sensors) U CSA General Purpose Housing for electronics...
- Page 16 Endress+Hauser GmbH+Co. Instruments International P.O. Box 2222 D-79574 Weil am Rhein Germany Tel. (0 76 21) 9 75-02 Tx 7 73 926 Fax (0 76 21) 9 75-3 45 http://www.endress.com info@ii.endress.com Endress Hauser The Power of Know How 08.99/MTM TI 190F/00/en/07.99...
