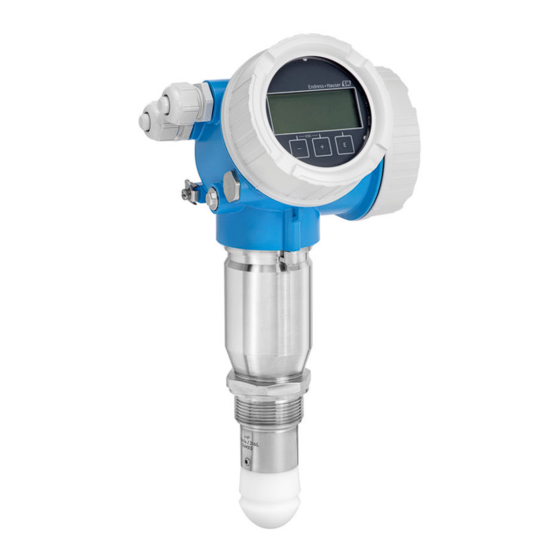

Endress+Hauser Micropilot FMR67 Technical Information

Free space radar
Hide thumbs Also See for Micropilot FMR67:
Table of Contents

Advertisement

Quick Links

Download this manual
TI01304F/00/EN/05.20
71486054
2020-07-31
Products
Technical Information
Micropilot FMR67
Free space radar
Level measurement in bulk solids
Application
• Continuous, non-contact level measurement of bulk solids
ranging from powdery to lumpy
• PTFE drip-off antenna or PTFE-plated, flush-mounted antenna
• Maximum measuring range: 125 m (410 ft)
• Temperature: –40 to +200 °C (–40 to +392 °F)
• Pressure: –1 to +16 bar (–14.5 to +232 psi)
• Accuracy: ± 3 mm (0.12 in)
• Linearity protocol (3-point, 5-point)
Your benefits
• Innovative drip-off antenna made of PTFE
• Reliable measurement thanks to improved focusing and small beam angle,
particularly in silos with many internal fittings
• Safety by design - ensures highest safety
• Easy, guided commissioning with intuitive user interface
• Bluetooth® wireless technology for commissioning, operation and maintenance via
free iOS / Android app SmartBlue
• Maximum reliability thanks to multi-echo tracking
• HistoROM configuration memory makes for easier commissioning,
maintenance and diagnostics
• Purge air connection for cleaning in extreme conditions
• Alignment device for easy adaptation of sensor
• SIL2 as per IEC 61508, SIL3 for homogeneous or diverse redundancy
• Easy proof testing for SIL
• RFID TAG - easy identification of measuring points for improved data access
• Heartbeat Technology
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Micropilot FMR67

Summary of Contents for Endress+Hauser Micropilot FMR67

  • Page 1 Products Solutions Services TI01304F/00/EN/05.20 71486054 2020-07-31 Technical Information Micropilot FMR67 Free space radar Level measurement in bulk solids Application • Continuous, non-contact level measurement of bulk solids ranging from powdery to lumpy • PTFE drip-off antenna or PTFE-plated, flush-mounted antenna •...

  • Page 2: Table Of Contents

    Micropilot FMR67 Table of contents Important document information ....4 Altitude according to IEC61010-1 Ed.3 ....34 Degree of protection .
  • Page 3 Micropilot FMR67 Application packages ..... . . 72 Heartbeat Diagnostics ......

  • Page 4: Important Document Information

    Micropilot FMR67 Important document information Document function These Operating Instructions provide all of the information that is required in various phases of the life cycle of the device including: • Product identification • Incoming acceptance • Storage • Installation • Connection •...

  • Page 5: Terms And Abbreviations

    Document type "Safety Instructions" Nominal pressure FieldCare Scalable software tool for device configuration and integrated plant asset management solutions DeviceCare Universal configuration software for Endress+Hauser HART, PROFIBUS, FOUNDATION Fieldbus and Ethernet field devices Device Type Manager Device Description for HART communication protocol ε...
  • Page 6 Registration-pending trademark of the FieldComm Group, Austin, Texas, USA Bluetooth® The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Endress+Hauser is under license. Other trademarks and trade names are those of their respective owners. Apple®...

  • Page 7: Function And System Design

    Micropilot FMR67 Function and system design Measuring principle The Micropilot is a "downward-looking" measuring system, operating based on the frequency modulated continuous wave method (FMCW). The antenna emits an electromagnetic wave at a continuously varying frequency. This wave is reflected by the product and received again by the antenna.

  • Page 8: Input

    Micropilot FMR67 Input Measured variable The measured variable is the distance between the reference point and the product surface. The level is calculated based on "E", the empty distance entered. Optionally, the level can be converted to other variables (volume, mass) by linearization (32 value pairs).

  • Page 9: Output

    Micropilot FMR67 Output Output signal HART • Signal coding: FSK ±0.5 mA over current signal • Data transmission rate: 1 200 Bit/s • Galvanic isolation: Bluetooth® wireless technology • Device version: Order code 610 "Accessory mounted", option NF "Bluetooth" • Operation / configuration: Via the SmartBlue app •...

  • Page 10: Signal On Alarm

    Micropilot FMR67 Signal on alarm Depending on the interface, failure information is displayed as follows: • Current output • Choice of failure mode (in accordance with NAMUR Recommendation NE 43): Minimum alarm: 3.6 mA Maximum alarm (= factory setting): 22 mA •...
  • Page 11 Micropilot FMR67 Multidrop current 4.0 mA Time for connection setup 30 s Endress+Hauser...

  • Page 12: Power Supply

    Micropilot FMR67 Power supply Terminal assignment Terminal assignment 2-wire: 4-20 mA HART A0036498  3 Terminal assignment 2-wire: 4-20 mA HART Without integrated overvoltage protection With integrated overvoltage protection Connection 4-20 mA HART passive: terminals 1 and 2, without integrated overvoltage protection...
  • Page 13 Micropilot FMR67 Terminal assignment 2-wire: 4-20 mA HART, switch output A0036500  5 Terminal assignment 2-wire: 4-20 mA HART, switch output Without integrated overvoltage protection With integrated overvoltage protection Connection 4-20 mA HART passive: terminals 1 and 2, without integrated overvoltage protection...
  • Page 14 Micropilot FMR67 Terminal assignment 2-wire: 4-20 mA HART, 4-20 mA A0036500  7 Terminal assignment 2-wire: 4-20 mA HART, 4-20 mA Without integrated overvoltage protection With integrated overvoltage protection Connection current output 1, 4-20 mA HART passive: terminals 1 and 2, without integrated overvoltage...
  • Page 15 Micropilot FMR67 Connection examples for the switch output For HART devices, the switch output is available as an option. A0015909  9 Connection of a relay A0015910  10 Connection to a digital input Pull-up resistor Digital input For optimum interference immunity we recommend to connect an external resistor (internal resistance of the relay or pull-up resistor) of <...

  • Page 16: Device Plugs

    Micropilot FMR67 Device plugs In device versions with a device plug (M12 or 7/8"), it is not necessary to open the housing in order to connect the signal cable. A0011175  11 Pin assignment of M12 plug Signal + Not assigned Signal –...

  • Page 17: Supply Voltage

    Micropilot FMR67 Supply voltage An external power supply is necessary. Various power supply units can be ordered as an accessory from Endress+Hauser. 2-wire, 4-20 mA HART, passive "Power "Approval" Terminal Maximum load R, supply, voltage U at Depends on the supply voltage output"...

  • Page 18: Power Consumption

    Micropilot FMR67 "Power "Approval" Terminal Maximum load R, supply, voltage U at Depends on the supply voltage output" device of power supply unit 16 to 30 V R [ ] W 2-wire; 4-20 mA HART, 4-20 mA U 0 [V]...

  • Page 19: Cable Specification

    10 kA External overvoltage protection module HAW562 or HAW569 from Endress+Hauser are suited as external overvoltage protection. Here, the material of the coupling depends on the housing type; GT18 (stainless steel housing): 316L (1.4404); GT19 (plastic housing) and GT20 (aluminum housing): brass (CuZn).

  • Page 20: Performance Characteristics

    Micropilot FMR67 Performance characteristics Reference operating • Temperature = +24 °C (+75 °F) ±5 °C (±9 °F) conditions • Pressure = 960 mbar abs. (14 psia) ±100 mbar (±1.45 psi) • Humidity = 60 % ±15 % • Reflector: metal plate with diameter ≥ 1 m (40 in) •...

  • Page 21: Response Time

    Micropilot FMR67 Response time The response time can be configured. The following step response times (in accordance with DIN EN IEC 61298-2 / DIN EN IEC 60770-1) are when damping is switched off: Sampling rate ≥ 1.3 s –1 at U ≥ 24 V Response time <...

  • Page 22: Installation

    Micropilot FMR67 Installation Installation conditions Orientation - Solid media A0016883 • Recommended distance A wall - nozzle outer edge: ~ 1/6 of the vessel diameter. However, the device must not under any circumstances be mounted closer than 20 cm (7.87 in) to the vessel wall.
  • Page 23 Micropilot FMR67 Internal vessel fittings A0031814 Avoid the location of internal fittings (limit switches, temperature sensors, struts etc.) inside the signal beam. Take the beam angle into account. Endress+Hauser...
  • Page 24 Micropilot FMR67 Avoiding interference echoes A0031817 Metal deflector plates, installed at an angle to scatter the radar signals, help prevent interference echoes. Optimization options • Antenna size The larger the antenna the smaller the beam angle α, resulting in fewer interference echoes.

  • Page 25: Free-Space Installation In Vessel

    Micropilot FMR67 Beam angle α α A0031824  14 Relationship between beam angle α, distance D and beamwidth diameter W The beam angle is defined as the angle α where the energy density of the radar waves reaches half the value of the maximum energy density (3dB width). Microwaves are also emitted outside the signal beam and can be reflected off interfering installations.
  • Page 26 • The end of the nozzle must be smooth and free from burrs. The edge of the nozzle should be rounded if possible. • Mapping must be performed. • Please contact Endress+Hauser for applications with nozzles that are higher than indicated in the table. Information concerning threaded connections •...
  • Page 27 • DN250 PN16 • 10K 250A A0032097  15 Micropilot FMR67 with alignment unit Aligning the antenna axis Releasing the screws Align the antenna axis (up to max. ±15° possible in all directions) Tighten the screws with 10 Nm (7.4 lbf ft) Radial alignment of the antenna Based on the directional characteristic, radial alignment of the antenna is not necessary.
  • Page 28 Micropilot FMR67 Internal diameter of nozzle D Maximum nozzle height H min. 80 to 100 mm (3 to 4 in) 1 450 mm (57 in) 100 to 150 mm (4 to 6 in) 1 800 mm (71 in) ≥150 mm (6 in)

  • Page 29: Container With Heat Insulation

    Micropilot FMR67 Purge air pressure range • Pulse operation : max. 6 bar (87 psi) • Continuous operation: 200 to 500 mbar (3 to 7.25 psi) Purge air connection • Tool: • Open-ended wrench 13 mm (G 1/4") • Open-ended wrench 14 mm (NPT) •...

  • Page 30: Turning The Display

    Micropilot FMR67 Turning the display Opening the cover 3 mm A0021430 Loosen the screw of the securing clamp of the electronics compartment cover using an Allen key (3 mm) and turn the clamp 90 ° counterclockwise. Unscrew the cover and check the cover seal, replace it if necessary.

  • Page 31: Post-Installation Check

    Micropilot FMR67 Turn the securing clamp 90 ° clockwise and tighten the screw of the securing clamp of the electronics compartment cover with 3 mm using the Allen key (2.5 Nm). Post-installation check  Is the device undamaged (visual inspection)? ...

  • Page 32: Environment

    Micropilot FMR67 Environment Ambient temperature range Measuring device –40 to +80 °C (–40 to +176 °F) Local display –20 to +70 °C (–4 to +158 °F), the readability of the display may be impaired at temperatures outside the temperature range.

  • Page 33: Storage Temperature

    Micropilot FMR67 FMR67 Antenna PTFE flush mount DN80 Seal FKM Viton GLT, –40 to 200 °C (–40 to 392 °F) Temperature specifications: °C (°F) A0032024 Housing type –40 –40 –40 –40 GT18 dual compartment (–40) (168.8) (168.8) (168.8) (392) (145.4) (392) (–40)

  • Page 34: Altitude According To Iec61010-1 Ed.3

    Micropilot FMR67 Altitude according to • Generally up to 2 000 m (6 600 ft) above MSL. • Above 2 000 m (6 600 ft) if the following conditions are met: IEC61010-1 Ed.3 • Ordering feature 020 "Power supply; Output" = A, B, C, E or G (2-wire versions) •...

  • Page 35: Process

    Micropilot FMR67 Process Process temperature, process The pressure ranges indicated can be reduced by the choice of process connection. The nominal pressure pressure (PN) indicated on the nameplate refers to a reference temperature of 20 °C, and of 100 °F for ASME flanges. Observe pressure-temperature dependency.
  • Page 36 Micropilot FMR67 FMR67, flush mount antenna, PTFE DN80, standard flange 316L [bar] ([psi]) 16 (232) 0 (0) -1 (-14.5) [°C] +200 +150 ([°F]) (-40) (+32) (+392) (+302) A0032187  19 FMR67: Permitted range for process temperature and process pressure, antenna, PTFE DN80, standard...
  • Page 37 Micropilot FMR67 FMR67, PTFE DN80, UNI flange 316L Feature 100 "Process Feature 90 Process temperature Process pressure range connection" "Seal" range UNI flange A5, FKM Viton –40 to +150 °C • X3J: DN200/8"/200A, 316L (–40 to +302 °F) –1 to 1 bar (–14.5 to 14.5 psi) •...

  • Page 38: Mechanical Construction

    Micropilot FMR67 Mechanical construction Dimensions Dimensions of the electronics housing 98 (3.86)* 78 (3.07) 90 (3.54) A0011666  22 Housing GT18 (316L). Unit of measurement mm (in) *For devices with integrated overvoltage protection. 99 (3.9)* 78 (3.07) 90 (3.54) A0011346 ...
  • Page 39 Micropilot FMR67 FMR67 Drip-off antenna, w/o purge air connection ø42.5 (1.67) ø42.5 (1.67) A0031560  25 Dimensions of drip-off antenna, w/o purge air connection. Unit of measurement mm (in) Process connection: G1-1/2" or MNPT1-1/2" thread Process connection: UNI flange 3"/DN80/80A to 6"/DN150/150...
  • Page 40 Micropilot FMR67 UNI flanges for FMR67 w/o purge air connection 20 (0.79) A0034611  26 Dimensions of UNI flanges for FMR67 w/o purge air connection. Unit of measurement mm (in) Feature 100: process connection Suitable for • XJG: • 3" 150lbs UNI flange 3"/DN80/80A, PP...
  • Page 41 Micropilot FMR67 FMR67 Drip-off antenna, purge air connection ø100 (3.94) ø42.5 (1.67) A0032154  27 Dimensions of drip-off antenna, purge air connection. Unit of measurement mm (in) Bottom edge of housing Reference point of measurement Endress+Hauser...
  • Page 42 Micropilot FMR67 UNI flanges for FMR67 with purge air connection 20 (0.79) A0034612  28 Dimensions of UNI flanges for FMR67 with purge air connection. Unit of measurement mm (in) Feature 100: Suitable for process connection XJG: • 3" 150lbs UNI flange 3"/...
  • Page 43 Micropilot FMR67 FMR67: Flush-mounted antenna with standard flange and purge air connection ø80 (3.15) ø64 (2.52) øD A0032172  29 Dimensions of flush-mounted antenna with standard flange and purge air connection . Unit of measurement mm (in) Seal: FKM Viton GLT, -40 to 150°C/-40 to 302°F Seal: FKM Viton GLT, -40 to 200°C/-40 to 392°F...
  • Page 44 Micropilot FMR67 FMR67: Flush-mounted antenna with UNI flange and purge air connection ø85 (3.35) ø50 (1.97) A0032180  30 Dimensions of antenna with UNI flange and purge air connection. Unit of measurement mm (in) Seal: FKM Viton GLT, -40 to 150°C/-40 to 302°F Seal: FKM Viton GLT, -40 to 200°C/-40 to 392°F...
  • Page 45 Micropilot FMR67 UNI flange for FMR67 with purge air connection ø26 (1.02) ø26 (1.02) ø80.3(3.16) ø294.5 (11.6) ø340 (13.4) ø29 (1.14) ø358 (14.1) ø405 (15.9) A0034613  31 Dimensions of UNI flange for FMR67 with purge air connection. Unit of measurement mm (in) UNI flange DN200/8"/200A, p...
  • Page 46 Micropilot FMR67 FMR67: Flush-mounted antenna with UNI flange, alignment unit and purge air connection ø46.5 (1.83) A0032173  32 Dimensions of antenna with UNI flange, alignment unit and purge air connection. Unit of measurement mm (in) Seal: FKM Viton GLT, -40 to 150°C/-40 to 302°F Seal: FKM Viton GLT, -40 to 200°C/-40 to 392°F...
  • Page 47 Micropilot FMR67 UNI flanges for FMR67 with alignment unit and purge air connection 90° 26 (1.02) 12 (0.47) 90° 185 (7.28) 240 (9.45) 225 (8.86) 280 (11) 26 (1.02) 26 (1.02) 95.2 (3.75) 358 (14.1) 405 (15.9) A0034614  33 Dimensions of UNI flanges for FMR67 with alignment unit and purge air connection.

  • Page 48: Weight

    Micropilot FMR67 Weight Housing Part Weight GT18 housing - stainless steel Approx. 4.5 kg (9.9 lb) GT19 housing - plastic Approx. 1.2 kg (2.7 lb) GT20 housing - aluminum Approx. 1.9 kg (4.2 lb) Antenna and process connection Device Antenna...

  • Page 49: Materials: Housing Gt18 (Stainless Steel, Corrosion- Resistant)

    Micropilot FMR67 Materials: Housing GT18 (stainless steel, corrosion- resistant) A0036037 No. Component part Material Housing CF3M similar to 316L/1.4404 2.1 Electronics compartment cover • Cover: CF3M (similar to 316L/ 1.4404) • Window: glass • Cover seal: NBR • Window seal: NBR •...

  • Page 50: Materials: Gt19 Housing (Plastic)

    Micropilot FMR67 Materials: GT19 housing (plastic) A0013788 No. Component part Material Housing 2.1 Electronics compartment cover • Sight glass: PC • Rim: PBT-PC • Cover seal: EPDM • Thread coating: graphite-based lubricant varnish 2.2 Connection compartment cover • Cover: PBT •...

  • Page 51: Materials: Gt20 Housing

    Micropilot FMR67 Materials: GT20 housing (die-cast aluminum, powder- coated) A0036037 No. Component part Material Housing, RAL 5012 (blue) • Housing: AlSi10Mg(<0.1% Cu) • Coating: polyester 2.1 Electronics compartment cover, RAL 7035 (gray) • Cover: AlSi10Mg(<0.1% Cu) • Window: glass • Cover seal: NBR •...
  • Page 52 Micropilot FMR67 No. Component part Material Ground terminal • Screw: A2 • Spring washer: A2 • Clamp: 304 (1.4301) • Bracket: 304 (1.4301) Adhesive nameplate Plastic In the version with the M12 plug, the seal material is Viton (different from standard).
  • Page 53 Micropilot FMR67 Component part Material Antenna PTFE Seals Viton: FKM Flange / process connection Aluminum Antenna adapter, 316L / 1.4404 Housing adapter Housing seal EPDM Threaded adapter, 316L / 1.4404 screw plug Purge air adapter Sensor adapter with alignment unit 316L / 1.4404...

  • Page 54: Materials: Weather Protection Cover

    Micropilot FMR67 Materials: Weather protection cover A0015473 Component: Material Protection cover: 316L (1.4404) Rubber molded part (4x): EPDM Tensioning screw: 316L (1.4404) + carbon thread Holder: 316L (1.4404) Ground terminal • Screw: A4 • Spring washer: A4 • Clamp: 316L (1.4404) •...

  • Page 55: Operability

    Micropilot FMR67 Operability Operating concept Operator-oriented menu structure for user-specific tasks • Commissioning • Operation • Diagnostics • Expert level Operating languages • English • Deutsch • Français • Español • Italiano • Nederlands • Portuguesa • Polski • русский язык (Russian) •...

  • Page 56: Local Operation

    Micropilot FMR67 Local operation Operation Pushbuttons Touch Control with Order code for Option C "SD02" Option E "SD03" "Display; Operation" A0036312 A0036313 Display 4-line display 4-line display elements white background lighting; switches to red in event of device error Format for displaying measured variables and status variables can be individually configured Permitted ambient temperature for the display: –20 to +70 °C (–4 to +158 °F)

  • Page 57: Operation Via Bluetooth® Wireless Technology

    Micropilot FMR67 Operation via Bluetooth® Requirements wireless technology A0036790  35 Device with Bluetooth module Electronics housing of the device Bluetooth module This operation option is only available for devices with Bluetooth module. There are the following options: • The device has been ordered with a Bluetooth module: Feature 610 "Accessory Mounted", option NF "Bluetooth"...

  • Page 58: Remote Operation

    Field Xpert SFX350/SFX370 VIATOR Bluetooth modem with connecting cable Transmitter DeviceCare/FieldCare via service interface (CDI) A0032466  38 DeviceCare/FieldCare via service interface (CDI) Service interface (CDI) of the instrument (= Endress+Hauser Common Data Interface) Commubox FXA291 Computer with DeviceCare/FieldCare operating tool Endress+Hauser...

  • Page 59: Supplycare Inventory Management Software

    Micropilot FMR67 SupplyCare inventory SupplyCare is a web-based operating program for coordinating the flow of material and information along the supply chain. SupplyCare provides a comprehensive overview of the levels of management software geographically distributed tanks and silos, for instance, providing complete transparency over the current inventory situation, regardless of time and location.
  • Page 60 Micropilot FMR67 A0034288  39 Example of inventory management platform with SupplyCare Enterprise SCE30B SupplyCare Enterprise (via Web browser) SupplyCare Enterprise installation SupplyCare Enterprise on mobile devices (via Web browser) Ethernet/WLAN/UMTS Fieldgate FXA42 Power supply 24 V DC Modbus TCP via Ethernet as server/client...
  • Page 61 Micropilot FMR67 Cloud-based application: SupplyCare Hosting SupplyCare Hosting is offered as a hosting service (software as a service). Here, the software is installed within the Endress+Hauser IT infrastructure and made available to the user in the Endress +Hauser portal. A0034289 ...

  • Page 62: Certificates And Approvals

    CE mark in the corresponding EU Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. The measuring system complies with the substance restrictions of the Restriction on Hazardous RoHS Substances Directive 2011/65/EU (RoHS 2).

  • Page 63: Marine Approval

    Micropilot FMR67 Marine approval Device Marine approval ABS marine LR marine approval BV marine approval DNV GL marine approval approval FMR67     See order code for 590 "Additional approval" Radio standard EN 302729 The devices comply with the Level Probing Radar (LPR) radio standard EN 302729. The devices are approved for unrestricted use inside and outside closed containers in countries of the EU and the EFTA .

  • Page 64: Radio Standard En 302372

    Micropilot FMR67 Country Name of the station Latitude Longitude Robledo 40°25' 3 8" North 04°14' 5 7" West Hungary Penc 47°47' 2 2" North 19°16' 5 3" East As a general rule, the requirements outlined in EN 302729 must be observed.
  • Page 65 Micropilot FMR67 Feature 100 in the Process connection product structure NPS 3" Cl.150 RF, 316/316L NPS 4" Cl.150 RF, 316/316L Thread ISO228 G1-1/2, 316L Thread ANSI MNPT1-1/2, 316L UNI flange 3"/DN80/80, 316L, max 4bar abs / 58 psia, suitable for NPS " Cl.150 / DN80 PN16 / 10K 80 UNI flange 4"/DN100/100, 316L, max 4bar abs / 58 psia, suitable for NPS 4"...

  • Page 66: Test, Certificate

    Micropilot FMR67 Test, certificate Feature 580 "Test, Description certificate" 3.1 Material certificate, wetted metal parts, EN10204-3.1 inspection certificate 3.1 Material certificate, pressurized parts, EN10204-3.1 inspection certificate Declaration of Conformity FDA Declaration of Conformity, TSE Certificate of Suitability Declaration of Conformity EC1935/2004 Declaration of Conformity ASME B31.3:...

  • Page 67: Other Standards And Guidelines

    Micropilot FMR67 Other standards and • EN 60529 Degrees of protection provided by enclosures (IP code) guidelines • EN 61010-1 Safety Requirements for Electrical Equipment for Measurement, Control and Laboratory Use • IEC/EN 61326 "Emission in accordance with Class A requirements". Electromagnetic compatibility (EMC requirements).

  • Page 68: Ordering Information

    • Depending on the device: Direct input of measuring point-specific information such as measuring range or operating language • Automatic verification of exclusion criteria • Automatic creation of the order code and its breakdown in PDF or Excel output format • Ability to order directly in the Endress+Hauser Online Shop Endress+Hauser...

  • Page 69: 3-Point Linearity Protocol

    Micropilot FMR67 3-point linearity protocol The following points must be considered if option F3 (3-point linearity protocol) was selected in feature 550 ("Calibration"). The 3 points of the linearity protocol are defined as follows: A0032642  41 Points of the 3-point linearity protocol; engineering unit: mm (in)

  • Page 70: 5-Point Linearity Protocol

    Micropilot FMR67 5-point linearity protocol The following points must be considered if option F4 (5-point linearity protocol) was selected in feature 550 ("Calibration"). The 5 points of the linearity protocol are evenly distributed over the measuring range (0% - 100%).

  • Page 71: Customer-Specific Configuration

    Micropilot FMR67 Customer-specific If the option IJ: "Customized parameterization HART", IK "Customized parameterization PA" or IL "Customized parameterization FF" has been selected in feature 570 "Service", presettings that differ configuration from the default settings can be selected for the following parameters:...

  • Page 72: Application Packages

    Micropilot FMR67 Application packages Heartbeat Diagnostics Availability Available in all device versions. Function • Continuous self-monitoring of the device. • Diagnostic messages output to • the local display. • an asset management system (e.g. FieldCare/DeviceCare). • an automation system (e.g. PLC).

  • Page 73: Heartbeat Verification

    Micropilot FMR67 Heartbeat Verification Availability Available for the following versions of feature 540 "Application package": • EH: Heartbeat Verification + Monitoring • EJ:   Heartbeat Verification Device functionality checked on demand • Verification of the correct functioning of the measuring device within specifications.

  • Page 74: Heartbeat Monitoring

    Micropilot FMR67 Heartbeat Monitoring Availability Available for the following versions of feature 540 "Application package": EH: Heartbeat Verification + Monitoring Function • In addition to the verification parameters, the corresponding parameter values are also logged. • Existing measured variables, such as the echo amplitude, are used in the Foam detection and Build-up detection wizards.

  • Page 75: Accessories

    Micropilot FMR67 Accessories Device-specific accessories Weather protection cover Accessory Description Weather protection cover A0015466 300 (11.8) 275 (10.8) 255.1 (10) 164 (6.46) A0015472  42 Weather protection cover; Dimensions: mm (in)  The weather protection cover can be ordered together with the device (product structure, feature 620 "Accessory Enclosed", option PB "Weather Protection Cover").
  • Page 76 Micropilot FMR67 Adjustable flange seal Accessories Description Adjustable flange seal ød øD A0032292 UNI slip-on flange Adjustable flange seal Nozzle  The material properties and process conditions of the adjustable flange seal must be compatible with the properties (temperature, pressure, resistance) of the process.
  • Page 77 Micropilot FMR67 Accessories Description Technical data: version ASME/JIS Order number 71249070 71249072 71249073 Compatible with • ASME 3" 150lbs ASME 4" 150lbs ASME 6" 150lbs • JIS 80A 10K Recommended screw length 100 mm (3.9 in) 100 mm (3.9 in) 110 mm (4.3 in)
  • Page 78 Micropilot FMR67 Mounting bracket, adjustable Accessories Description Mounting bracket, adjustable 260 (10.2) 9(0.4) 12(0.5) 16 (0.6) 100 (3.9) 35(1.4) A0032295 Material: 304 (1.4301) Suitable for housing • A: GT19 dual compartment, plastic PBT • C: GT20 dual compartment, aluminum, coated...
  • Page 79 Micropilot FMR67 Remote display FHX50 Accessories Description Remote display FHX50 A0019128 • Material: • Plastic PBT • 316L/1.4404 • Aluminum • Degree of protection: IP68 / NEMA 6P and IP66 / NEMA 4x • Suitable for display modules: • SD02 (push buttons) •...
  • Page 80 Micropilot FMR67 Overvoltage protection Accessory Description Overvoltage protection for 2-wire-devices OVP10 (1 channel) OVP20 (2 channel) A0021734 Technical data • Resistance per channel: 2 * 0.5 Ω • Threshold DC voltage: 400 to 700 V • Threshold impulse voltage: < 800 V •...
  • Page 81 Micropilot FMR67 Bluetooth module for HART devices Accessory Description Bluetooth module A0036493 • Quick and easy commissioning via SmartBlue (app) • No additional tools or adapters required • Signal curve via SmartBlue (app) • Encrypted single point-to-point data transmission (tested by Fraunhofer institue) and password protected communication via Bluetooth®...

  • Page 82: Communication-Specific Accessories

    For details, see "Technical Information" TI00404F Commubox FXA291 Connects Endress+Hauser field devices with a CDI interface (= Endress+Hauser Common Data Interface) and the USB port of a computer or laptop Order number: 51516983 For details, see "Technical Information" TI00405C...

  • Page 83: Service-Specific Accessories

    For an overview of the scope of the associated Technical Documentation, refer to the following: • W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number from nameplate • Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2D matrix code (QR code) on the nameplate Brief Operating Instructions...
  • Page 84 *71486054* 71486054 www.addresses.endress.com...
