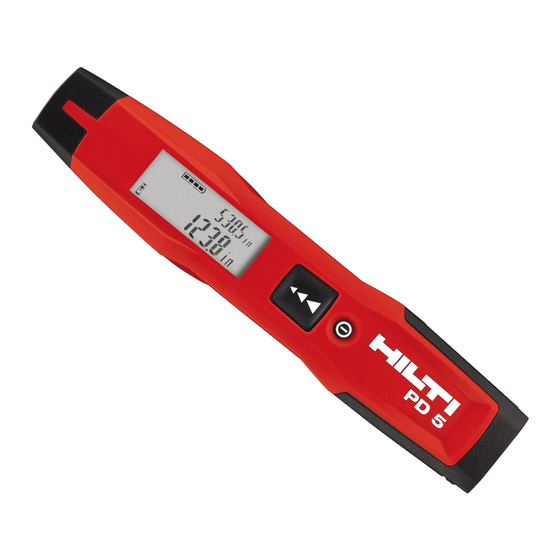

Hilti PD 5 Operation Instruction Manual
Hide thumbs
Also See for PD 5:
- Original operating instructions (246 pages) ,
- Operating instructions manual (234 pages) ,
- User manual (6 pages)
Related Manuals for Hilti PD 5
Summary of Contents for Hilti PD 5

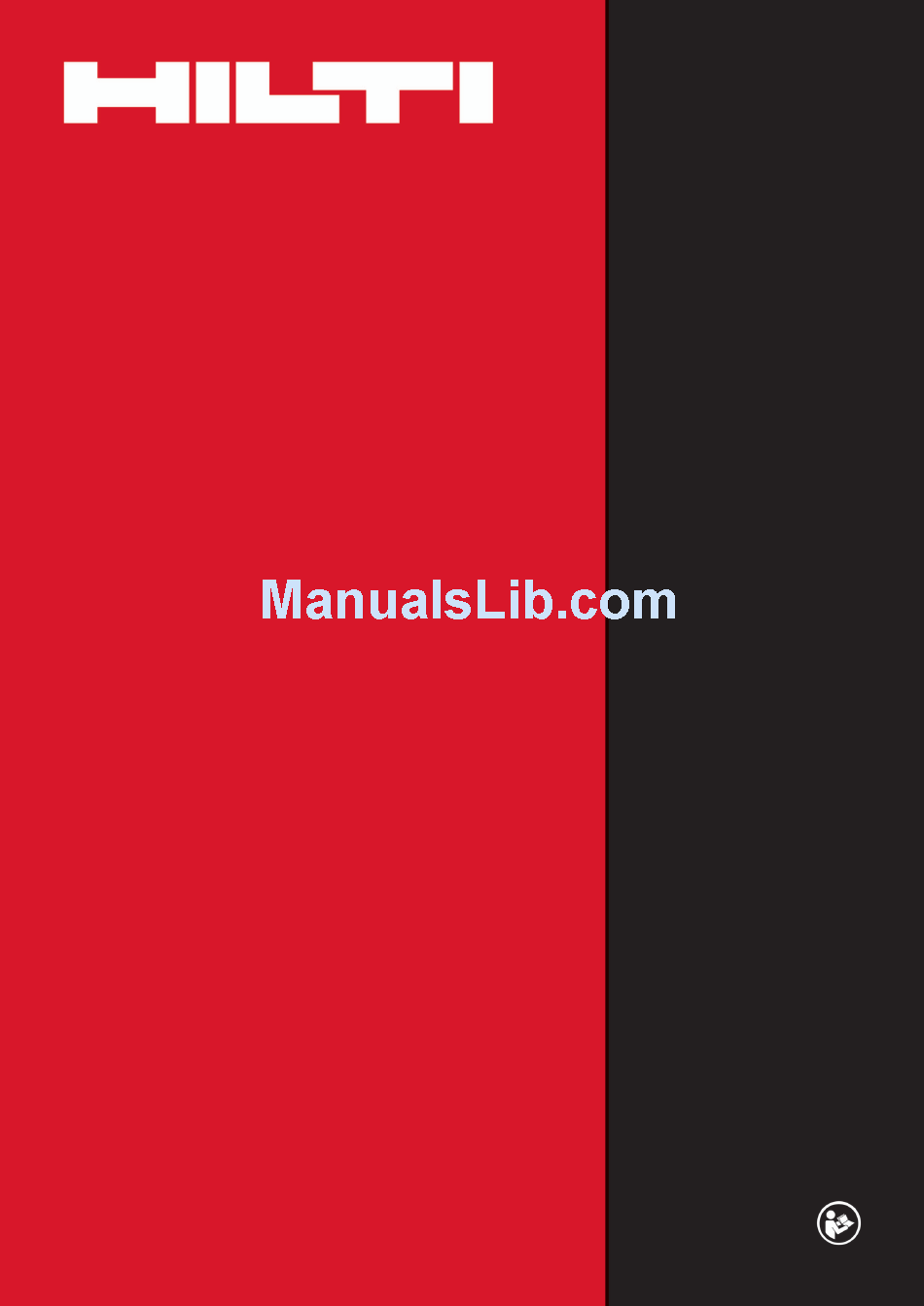

- Page 1 PD 5 English Français Español...
- Page 4 PD 5 Original operating instructions ......1 Mode d'emploi original ....... 12...
- Page 5 1 Information about the documentation 1.1 Explanation of signs used 1.1.1 Warning signs The following warning signs are used: DANGER! Draws attention to imminent danger that will lead to seri- ous personal injury or fatality. WARNING! Draws attention to a potentially dangerous situation that could lead to serious personal injury or fatality.
- Page 6 We reserve the right to make changes. Errors excepted. 1.3 Product information Hilti products are designed for professional use and may be operated, ser- viced and maintained only by trained, authorized personnel. This personnel must be informed of any particular hazards that may be encountered. The product and its ancillary equipment may present hazards when used incor- rectly by untrained personnel or when used not as directed.
- Page 7 ▶ If the product is opened improperly, laser radiation in excess of Class 2 may be emitted. Have the product repaired only by Hilti Service. ▶ Tampering with or modification of the product is not permitted. ▶ Check that the product functions correctly each time before use.
- Page 8 2.1.5 Electromagnetic compatibility Although the device complies with the strict requirements of the applicable directives, Hilti cannot entirely rule out the possibility of interference to the device caused by powerful electromagnetic radiation, possibly leading to incorrect operation. Check the accuracy of the device by taking measure- ments by other means when working under such conditions or if you are unsure.
- Page 9 To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Center or online at: www.hilti.com...
- Page 10 PD 5 Recommended temperature −30 ℃ … 70 ℃ range for transport and storage (−22 ℉ … 158 ℉) Weight 100 g (3.5 oz) 5 Operation 5.1 Inserting the batteries Note Take care to ensure correct battery polarity. Change the batteries only in pairs.
- Page 11 3. Press the button to browse through the units of measure. 4. After selecting the unit of measure, press the button for 2 seconds. ◁ All settings will be saved. ◁ The laser range meter will be switched off. 5.6 Switching on the display illumination Note The display illumination switches on automatically when the ambient light level is low.
- Page 12 ▶ Hold the rear edge of the laser range meter against the point from which the measurement is to be taken. 5.10 Hilti Measuring Systems Service Hilti Measuring Systems Service checks the tool and, if deviations from the specified accuracy are found, recalibrates it and checks it again to ensure conformity with specifications.
- Page 13 Action to be taken The measured dis- The display is faulty. ▶ Have the product tance is not shown. repaired by Hilti Service. The target surface is ▶ Change the measuring too light, too dark or too direction so that light reflective.
- Page 14 Note The batteries must be insulated or removed from the product before it is shipped or sent by mail. ▶ Use the Hilti packaging or packaging of equivalent quality for transporting or shipping your equipment. 6.3 Storage and drying ▶ Do not put the product into storage when wet. Allow it to dry before putting it away.
- Page 15 Note Changes or modifications not expressly approved by Hilti may restrict the user’s authorization to operate the equipment. 9 Manufacturer’s warranty ▶ Please contact your local Hilti representative if you have questions about the warranty conditions.
- Page 16 Hilti = registered trademark of Hilti Corp., Schaan Pos. 1 | 20151113...
