Hilti PD 5 User Manual

Measuring Systems
Laser range meter

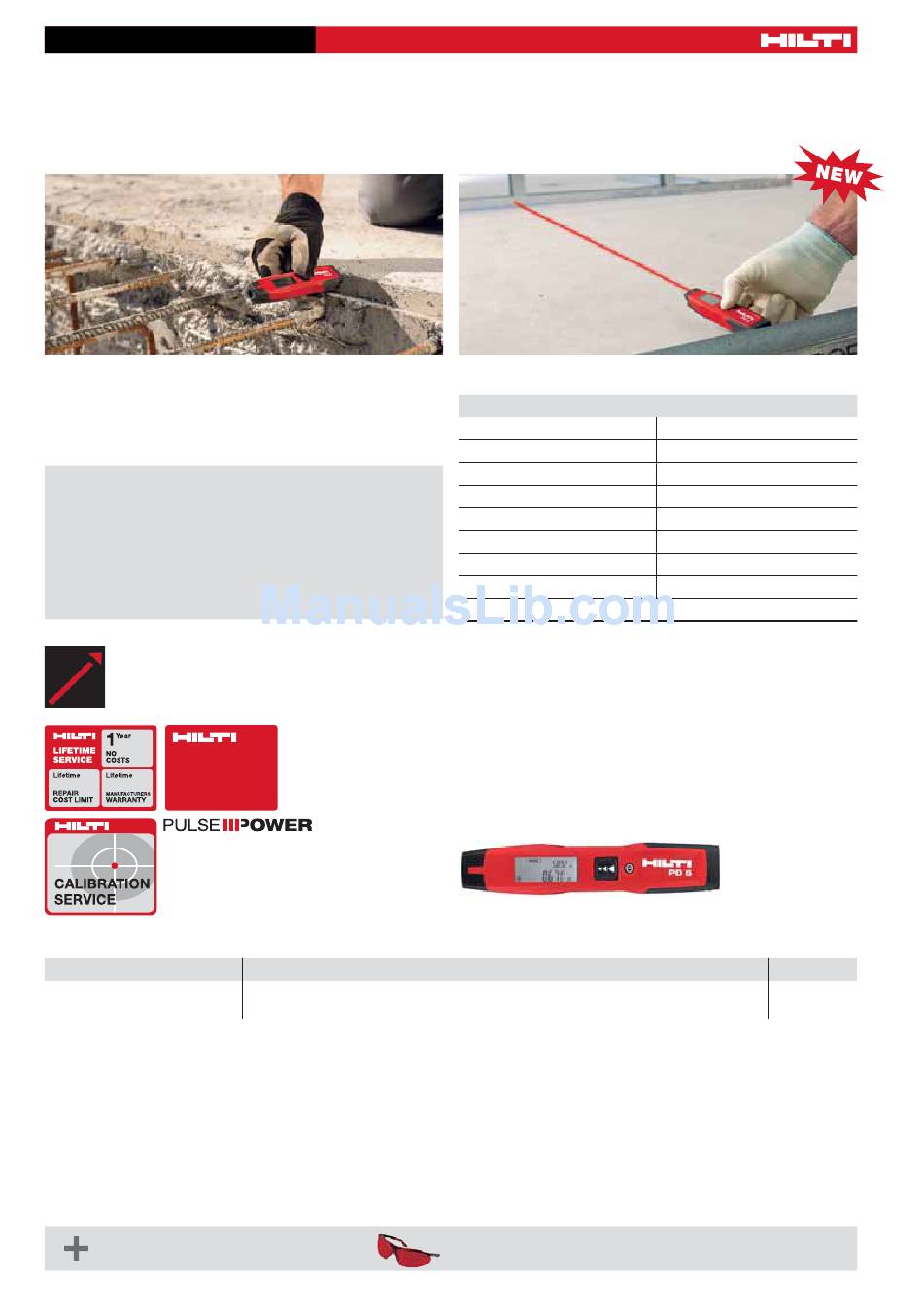

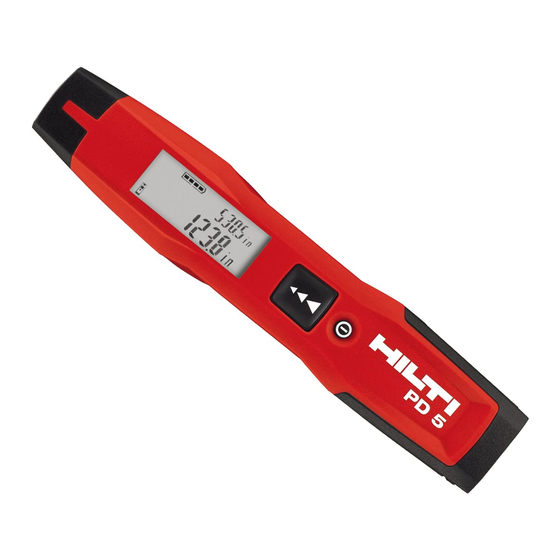

PD 5
Measures accurately at the touch of a button
Applications
■
Measuring distances between 0.2 m and 70 m with great accuracy
■
Measuring heights where alternative measuring methods fail
■
Measuring quickly and safely in places where access is difficult
Advantages
■
Simple and intuitive to use
■
Single-button operation
■
New compact design that fits in every pocket
■
Waterproof and dust tight
■
Rugged and durable
■
Ergonomic design for unique operating convenience
FLEET
MANAGEMENT
Ordering
Order designation
PD 5 laser range meter
7 Customer Hotline: Hong Kong 8228 8118 Macau
Package content
Equipped with laser range meter, soft pouch, 2 AAA batteries, producer certifi cate and operating instructions
in a cardboard box
8228 8118 (Mon - Fri 8:30 am - 6:00 pm / Sat 8:30 am - 1:00 pm) | Hilti online: www.hilti.com.hk
00800
Technical data
Range*
Accuracy**
Laser
Measuring functions
IP protection class
Power source
Battery life
Dimensions (L x W x H)
Weight include battery
* The maximum range or, respectively, visibility of the laser depends on reflectivity of the target and the brightness
of ambient light. The PDA 50, 51 or 52 target plates should be used if the target reflects insufficient laser light.
** Atmospheric influences adversely affect distance measurement by laser. Over long distances, a significant
deviation of up to ± 2 mm (+ 20 ppm) must be expected.
Accessories
page 9
PD 5
0.2 m to 70 m
± 1.5 mm
635 nm, class 2 (IEC 825-1)
Single and continuous measurement
IP 55
2 AAA batteries (1.5 V)
8000 measurements (Alkaline batteries)
164 x 33 x 21 mm
100 g
Item No.
02004830
