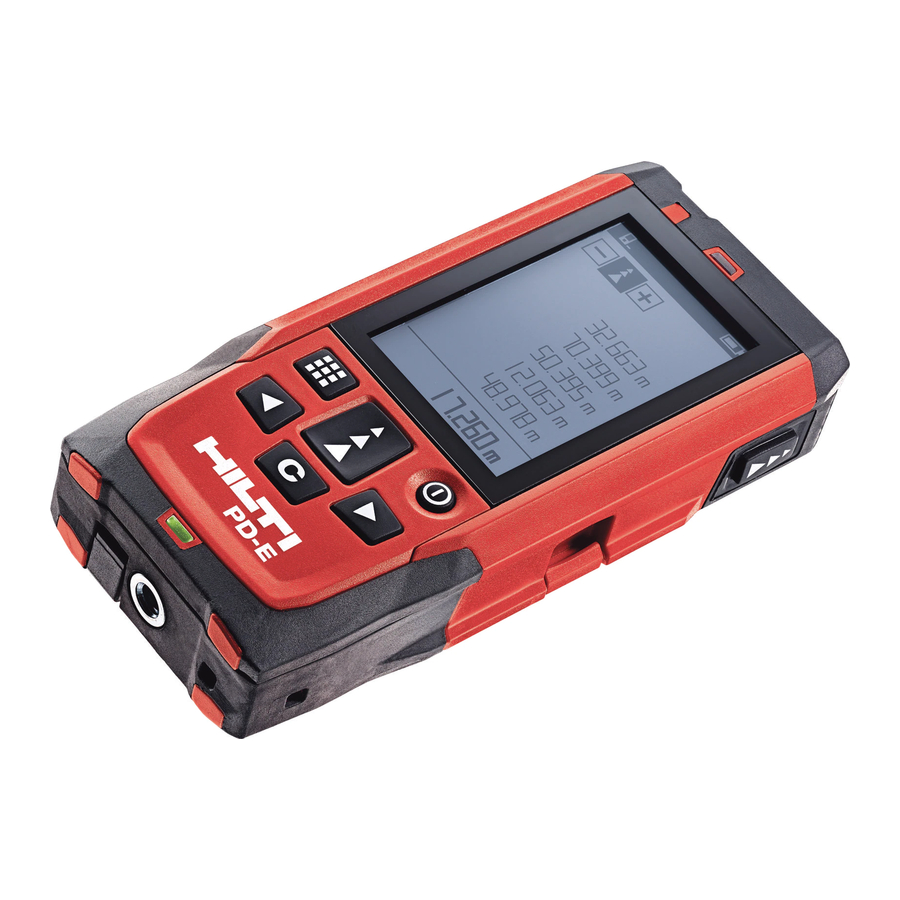

Summary of Contents for Hilti PD-E
- Page 1 PD-E English Français Español Português...
- Page 4 PD-E English ............
- Page 5 ▶ Ensure that the operating instructions are with the tool when it is given to other persons. 1.3 Product information Hilti products are designed for professional use and may be operated, serviced and maintained only by trained, authorized personnel. This personnel must be informed of any particular hazards that may be encountered.
- Page 6 ▶ Observe the information printed in the operating instructions concerning operation, care and maintenance. 2.1.2 General safety rules ▶ Check the product for damage before use. Have the damage repaired by Hilti Service. ▶ Check the accuracy of the product after it has been dropped or subjected to other mechanical stresses.
- Page 7 Check the accuracy of the device by taking measurements by other means when working under such conditions or if you are unsure. Likewise, Hilti cannot rule out the possibility of interference with other devices (e.g. aircraft navigation equipment). The tool complies with the requirements of class A;...
- Page 8 Measure areas and volumes Select special functions Select trapezoid function Select Pythagoras function At least one right angle is required for horizontal and diagonal distances. Select settings Measure indirectly No specific angle is required for measurements on non-moving objects such as walls. Generally applicable symbols Battery charge state Measuring spike not folded out...
- Page 9 Select automatic brightness sensor Determine area to be painted Select layout function Select min/max delta function Select timer Select offset function Select data storage media Trapezoid function submenu Measure 3 distances Measure 2 distances, 1 angle Pythagoras function submenu Single Pythagoras Double Pythagoras Combined Pythagoras Settings submenu...
- Page 10 Indirect vertical distance measurement II 3.4 Items supplied Laser range meter, two batteries, operating instructions, manufacturer’s certificate. Note You can find other system products approved for use with your product at your local Hilti Center or online at: www.hilti.com. 4 Technical data Operating temperature −10 ℃...
- Page 11 2. Fold out the spike through 180°. The measuring reference point is then set automatically. 5.5 Measuring using a target plate 1. Use the target plate to measure distance under the following unfavorable conditions: ◁ The wall is not sufficiently reflective due to the type of surface. ◁...
- Page 12 5.8.4 Measuring cylindrical volume 1. Aim the tool at the corresponding target to measure the height of the cylinder and press the “Measure” button. 2. Aim the tool at the next target point to measure the diameter of the cylinder and press the “Measure” button.
- Page 13 5.9.5 Data storage 1. Select the data storage symbol from the special functions menu. Note The tool can save up to 30 screens, including the graphical symbols. If 30 screens have already been saved, the oldest one will be deleted automatically when a new screen is saved. 2.
- Page 14 Note The batteries must be insulated or removed from the product before it is shipped or sent by mail. ▶ Use the Hilti packaging or packaging of equivalent quality for transporting or shipping your equipment. 6.3 Storage and drying ▶ Do not put the product into storage when wet. Allow it to dry before putting it away.
- Page 15 This may result in serious personal injury, injury to third parties and pollution of the environment. Most of the materials from which Hilti products are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling.
- Page 16 Hilti = registered trademark of Hilti Corp., Schaan Pos. 3 | 20160609...
