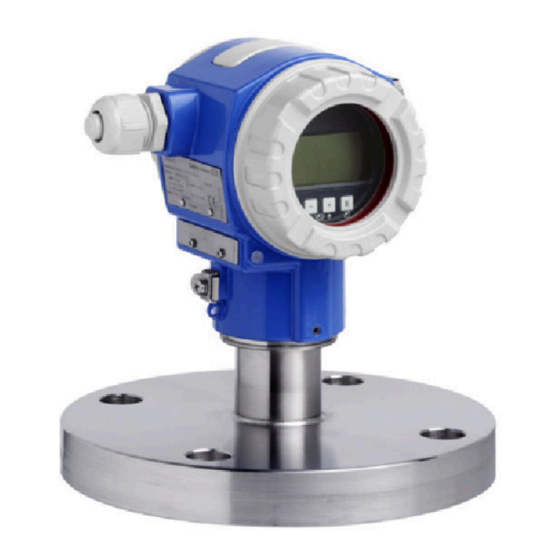

Endress+Hauser Deltapilot S FMB70 Operating Instructions Manual
Endress+Hauser Deltapilot S FMB70 Operating Instructions Manual

Endress+Hauser Deltapilot S FMB70 Operating Instructions Manual

Hydrostatic level measurement
Hide thumbs Also See for Deltapilot S FMB70:

Advertisement

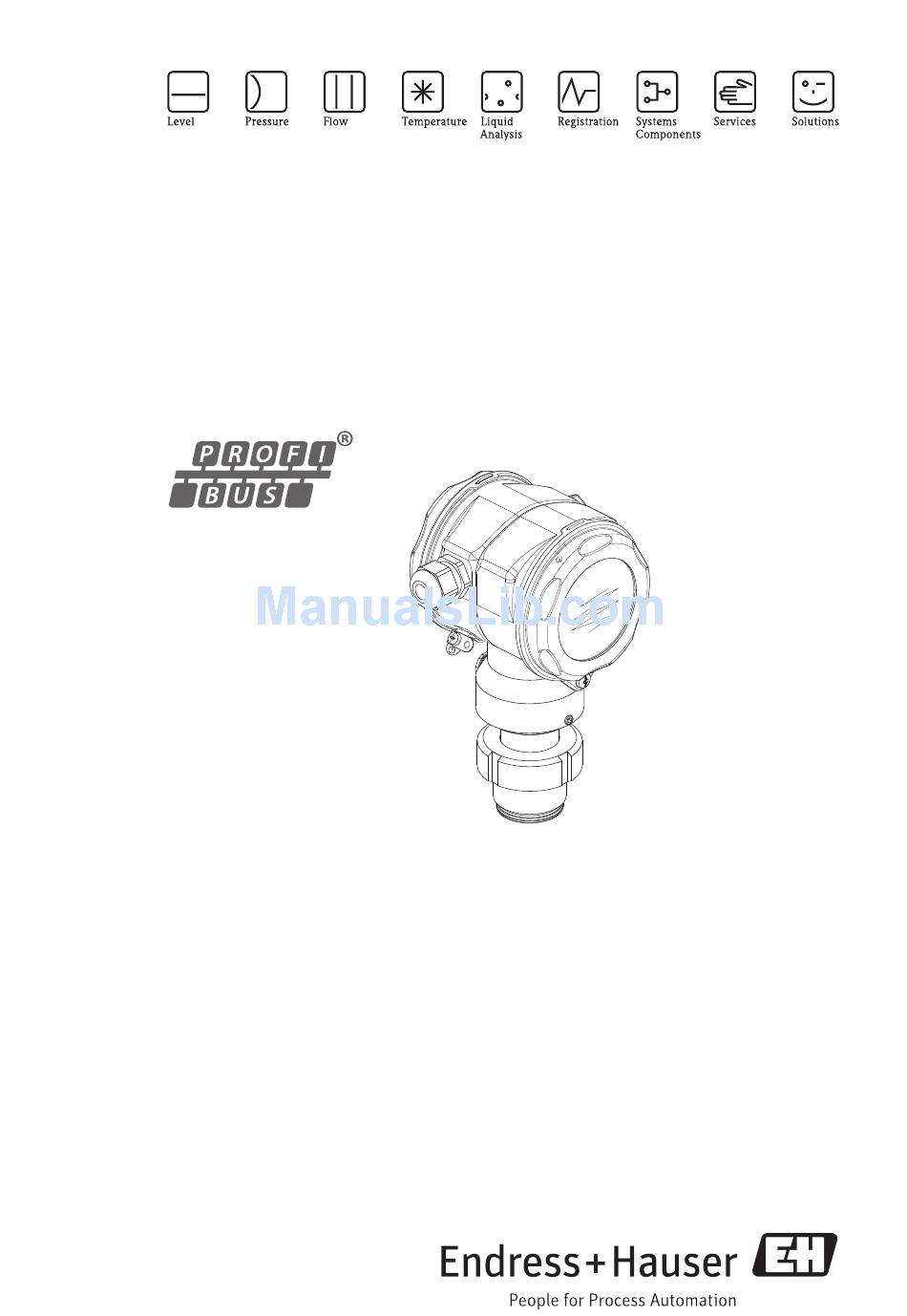

Brief Operating Instructions
Deltapilot S
FMB70
Hydrostatic level measurement
These Instructions are Brief Operating Instructions; they are not a substitute for the
Operating Instructions pertaining to the device.
Detailed information about the device can be found in the Operating Instructions
and the other documentation:
Available for all device versions via:
– Internet:
www.endress.com/deviceviewer
– Smart phone/tablet: Endress+Hauser Operations App
KA01023P/00/EN/16.14
71270391

Advertisement

Table of Contents
loading

Summary of Contents for Endress+Hauser Deltapilot S FMB70

  • Page 1 These Instructions are Brief Operating Instructions; they are not a substitute for the Operating Instructions pertaining to the device. Detailed information about the device can be found in the Operating Instructions and the other documentation: Available for all device versions via: – Internet: www.endress.com/deviceviewer – Smart phone/tablet: Endress+Hauser Operations App KA01023P/00/EN/16.14 71270391...
  • Page 2: Serial Number

    Deltapilot S PROFIBUS PA Order code 00X00-XXXX0XX0XXX Ser. No.: X000X000000 TAG No.: XXX000 Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...
  • Page 3: Table Of Contents

    6.3 Pressure measurement ..............28 Endress+Hauser...
  • Page 4: Safety Instructions

    "Ex documentation", which is an integral part of this Operating Instructions. The installation regulations, connection values and Safety Instructions listed in this Ex document must be observed. The documentation number of the related Safety Instructions is also indicated on the additional nameplate. Endress+Hauser...
  • Page 5: Return

    For an overview of the technical documentation provided, enter the serial number from the nameplates in the W@M Device Viewer (www.endress.com/deviceviewer). Installation General installation instructions Warning! The seal is not allowed to press on the process isolating diaphragm as this could affect the measurement result. Endress+Hauser...
  • Page 6 • To ensure optimal readability of the on-site display, it is possible to rotate the housing up to 380°. • The on-site display can be rotated in 90° stages. • Endress+Hauser offers a mounting bracket for installing on pipes or walls. Endress+Hauser...
  • Page 7: Measuring Arrangement

    • Fill the siphon with liquid before commissioning. The siphon reduces the temperature to almost the ambient temperature. 3.2.4 Pressure measurement in liquids • Mount Deltapilot S with the shutoff device below or at the same level as the tapping point. Endress+Hauser...
  • Page 8: Assembling And Mounting The "Separate Housing" Version

    Mount the housing on a wall or pipe using the mounting bracket (item 8). When mounting on a pipe, tighten the nuts on the bracket uniformly with a torque of at least 5 Nm. Mount the cable with a bending radius (r)  120 mm. Endress+Hauser...
  • Page 9: Wiring

    • Remove housing cover of the terminal compartment. • Guide cable through the gland. Preferably use twisted, screened two-wire cable. • Connect device in accordance with the following diagram. • Screw down housing cover. • Switch on supply voltage. Endress+Hauser...
  • Page 10: Connecting The Measuring Unit

    As of Hardware Version 1.10, you will find a label in the device on the electronic insert. 4.2.3 Cable specification • Use a twisted, screened two-wire cable, preferably cable type A. • Terminals for wire cross-sections: 0.5...2.5 mm • Outer cable diameter: 5...9 mm Endress+Hauser...
  • Page 11: Operation

    The display of the device can be turned in 90° steps. Depending on the installation position of the device, this makes it easy to operate the device and read the measured values. Endress+Hauser...
  • Page 12 Deltapilot S PROFIBUS PA Parameter Measured value display Identification Function name Value number Header line Main line Unit Information line Symbol – Bargraph Bargraph Editing modes Operating keys Selection options Value that can be edited Current measured value P01-xxxxxxxx-07-xx-xx-xx-011 Endress+Hauser...
  • Page 13 The primary value of the Transducer Block is increasing. Tendency symbol (decreasing) The primary value of the Transducer Block is decreasing. Tendency symbol (constant) The primary value of the Transducer Block has remained constant over the past few minutes. Endress+Hauser...
  • Page 14: Operating Elements

    (zero point-correction) or total reset Operating key for position adjustment (zero point-correction) or total reset DIP switch for hardware address Slot for optional display ® /M-DAT Slot for optional HistoROM DIP-switch for locking/unlocking measured-value-relevant parameters DIP-switch for damping on/off Endress+Hauser...
  • Page 15 S D A 0 address". 1 2 3 4 5 6 7 8 Address P01-xxxxxxxx-19-xx-xx-xx-109 – DIP-switch 1: for locking/unlocking measured-value-relevant parameters τ Factory setting: off (unlocked) – DIP switch 2: damping on/off Factory setting: on (damping on) P01-xxxxxxxx-19-xx-xx-xx-108 Endress+Hauser...
  • Page 16 Note: The terms function group, level and selection level are explained in Section 4.3.1, Page 17. Set address in the bus. See also Page 21, Section 4.4 "Configuring the device address". S D A 0 1 2 3 4 5 6 7 8 Address P01-xxxxxxxx-19-xx-xx-xx-109 Endress+Hauser...
  • Page 17: On-Site Operation Via On-Site Display

    MEASURING MODE ➀ ➁ SETTINGS DISPLAY POSITION ADJUSTMENT BASIC SETUP EXTENDED SETUP POS. ZERO ADJUST ➂ ➃ POS. INPUT VALUE CALIB. OFFSET P01-xxxxxxxx-19-xx-xx-xx-145 Fig. 6: Structure of the operating menu 1. Selection level 2. Selection level Function groups Parameter Endress+Hauser...
  • Page 18 Select English with "+" or "–". P01-xxxxxxxx-19-xx-xx-xx-033 Confirm your choice with "E". A ✓ in front of the menu text indicates the active option. (English is now selected as the menu language.) Jump to the next item with "E". P01-xxxxxxxx-19-xx-xx-xx-034 Endress+Hauser...
  • Page 19 Confirm "0" with "E". The cursor jumps to the next position.  is displayed and is highlighted in black. See next graphic. P01-xxxxxxxx-19-xx-xx-xx-030 Use "E" to save the new value and exit the editing mode.  See next graphic. P01-xxxxxxxx-19-xx-xx-xx-031 Endress+Hauser...
  • Page 20 Use "E" to assign the value (3.9 mbar) to the POS. ZERO ADJUST parameter. The device confirms the calibration and jumps back to the parameter, here POS. ZERO ADJUST (see next graphic). P01-xxxxxxxx-19-xx-xx-xx-037 Switch to the next parameter with "E". P01-xxxxxxxx-19-xx-xx-xx-160 Endress+Hauser...
  • Page 21: Configuring The Device Address

    Set DIP switch 8 (SW/HW) to "Off". Configure the address with DIP switches 1 to 7. You have to wait 10 seconds for a change in address to take effect. The device is restarted. DIP switch Weighting in Position "On" Weighting in Position "Off" Endress+Hauser...
  • Page 22: Locking/Unlocking Operation

    Select INSERT PIN NO. parameter, Menu path: GROUP SELECTION  OPERATING MENU OPERATION  INSERT PIN NO. To lock operation, enter "0" for this parameter. Unlocking operation Select INSERT PIN NO. parameter. To unlock operation, enter "2457" for the parameter. Endress+Hauser...
  • Page 23: Commissioning

    – Position adjustment has to be carried out that has to correct a large measured error as a result of the orientation of the device. Note! By default, the device is set up for the Level measuring mode, "Level Easy Pressure" level selection and "%" as the unit. Endress+Hauser...
  • Page 24: Position Adjustment

    To correct the MEASURED VALUE to 0.0 mbar, you must enter the value 2.2 here. (MEASURED VALUE = MEASURED VALUE – CALIB. OFFSET) – MEASURED VALUE (after entry for calib. offset) = 0.0 mbar Factory setting: Endress+Hauser...
  • Page 25: Level Measurement

    1) – LEVEL SELECTION "Level Easy Pressure" FULL CALIB. and CALIBRATION MODE "Wet" – LEVEL SELECTION = "Level Standard", LEVEL MODE = "Linear" and DAMPING VALUE CALIBRATION MODE = "Wet" P01-xMx7xxxx-19-xx-xx-xx-049 Fig. 8: Quick Setup menu for the Level measuring mode Endress+Hauser...
  • Page 26 OUT value of the Analog Input Block react to a change in the pressure. – LEVEL SELECTION "Level Easy Pressure" and CALIBRATION MODE "Wet" – LEVEL SELECTION "Level Standard", LEVEL MODE "Linear" and CALIBRATION MODE "Wet" (Menu path for CALIBRATION MODE: GROUP SELECTION OPERATING MENU SETTINGS BASIC SETTINGS) Endress+Hauser...
  • Page 27 Press key for at least 3 seconds. See Page 14, Section 4.2.1 "Position of operating elements". If the LED on the electronic insert lights up briefly, the pressure applied has been accepted for position adjustment. If the LED does not light up, the pressure applied was not accepted. Observe the input limits. Endress+Hauser...
  • Page 28: Pressure Measurement

    DAMPING TIME Enter damping time (time constant ). The damping affects the speed at which all subsequent elements, such as the on-site display, measured value and OUT value of the Analog Input Block react to a change in the pressure. Endress+Hauser...
  • Page 29 Press key for at least 3 seconds. See Page 14, Section 4.2.1 "Position of operating elements". If the LED on the electronic insert lights up briefly, the pressure applied has been accepted for position adjustment. If the LED does not light up, the pressure applied was not accepted. Observe the input limits. Endress+Hauser...
  • Page 30 Commissioning Deltapilot S PROFIBUS PA Endress+Hauser...
  • Page 31 Deltapilot S PROFIBUS PA Commissioning Endress+Hauser...
  • Page 32 KA01023P/00/EN/16.14 71270391 CCS/FM+SGML 9.0 71270391...
