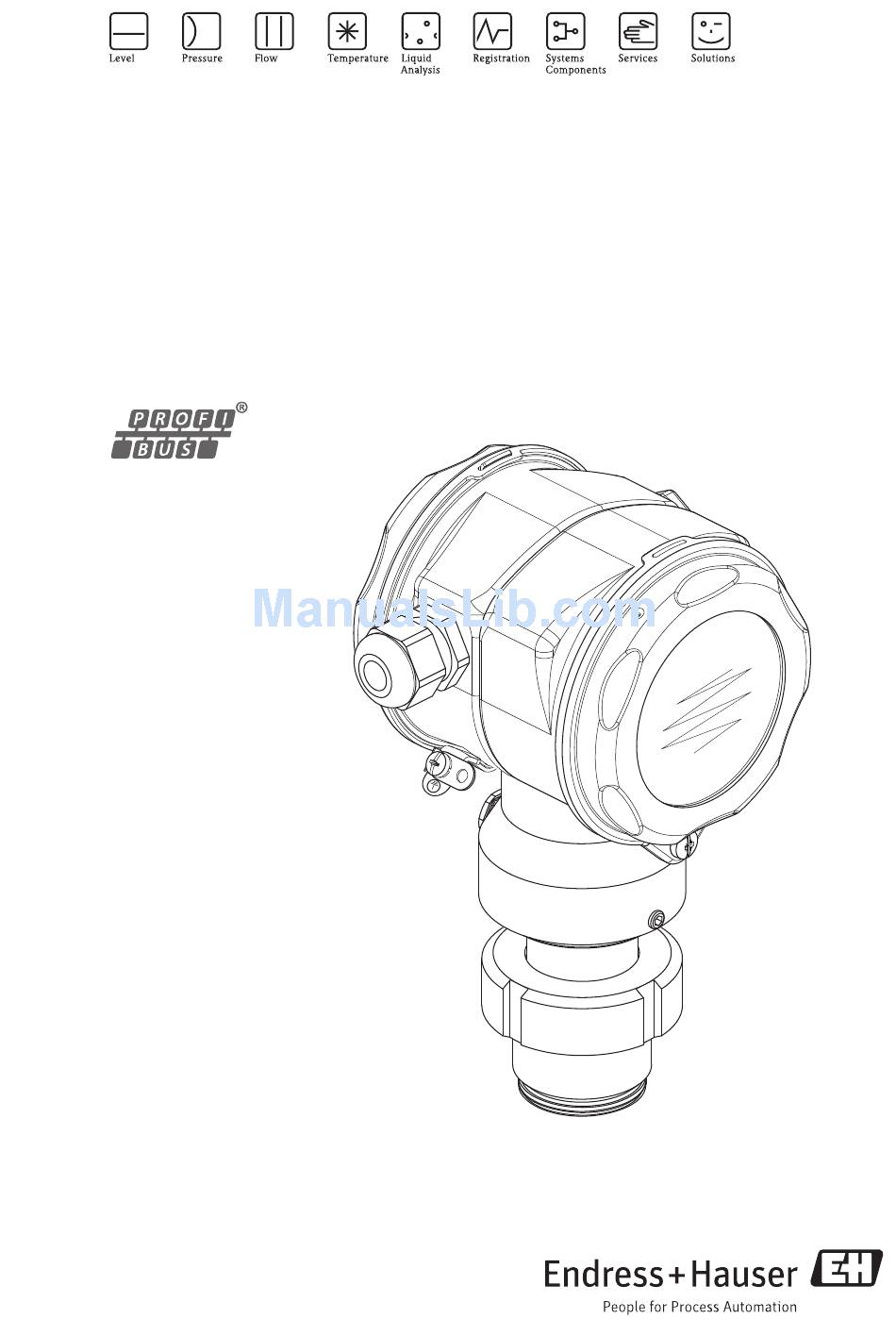

Operating Instructions

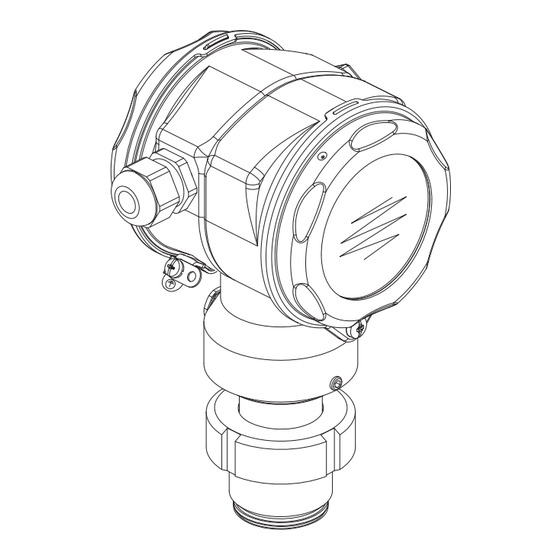

Deltapilot S FMB70
Hydrostatic level measurement
BA00356P/00/EN/17.14
71270397
valid from Software version:
04.01.zz
