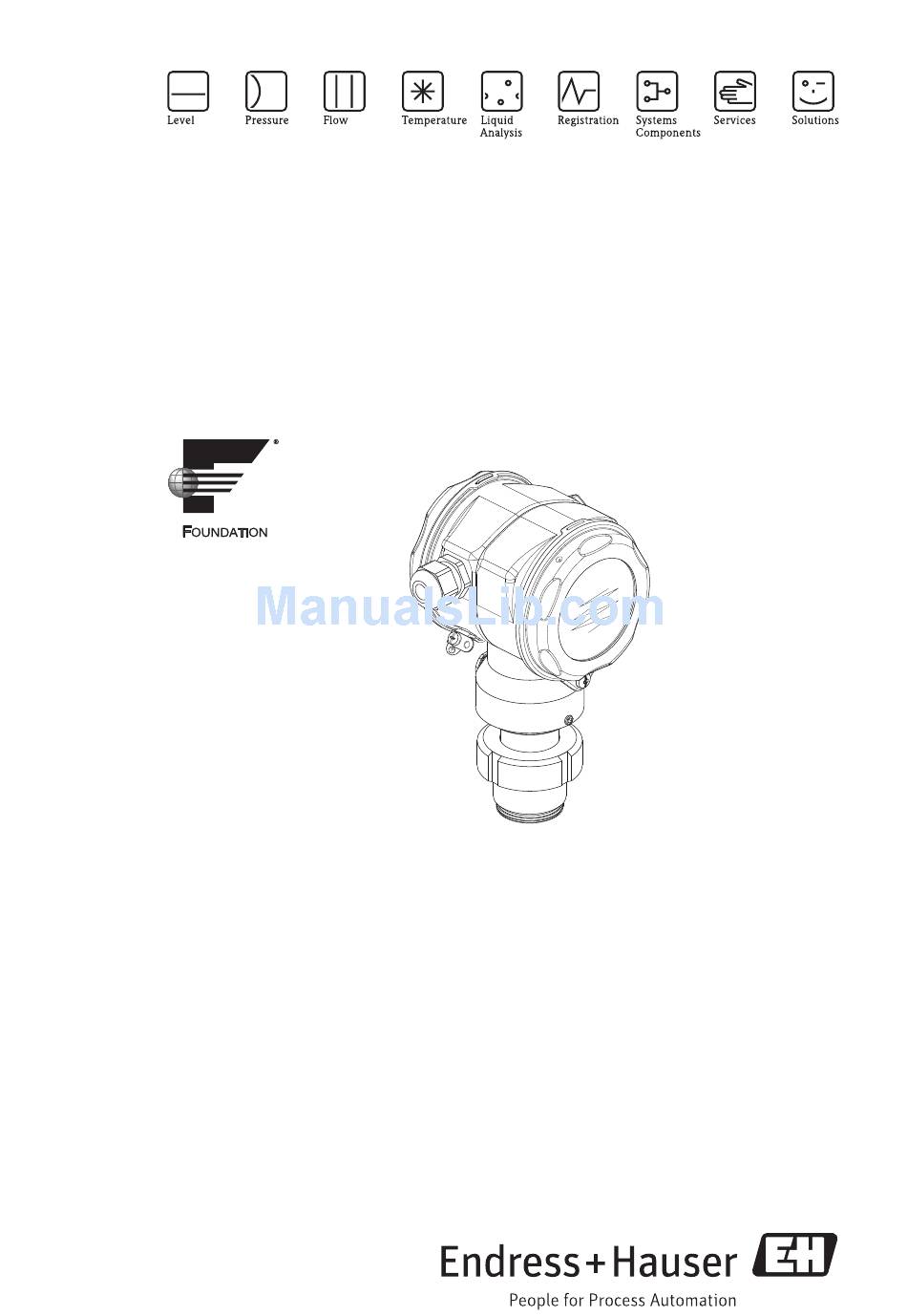

Brief Operating Instructions
Deltapilot S
FMB70
Hydrostatic level measurement
These are Brief Operating Instructions.
For more detailed information, please refer to the Operating Instructions and the
additional documentation on the CD-ROM provided.
These Brief Operating Instructions are not intended to replace the Operating
Instructions provided in the scope of supply.
The complete device documentation consists of:
• these Brief Operating Instructions
• a CD-ROM with the Operating Instructions
KA01026P/00/EN/14.13
71207396
