Brief Operating Instructions

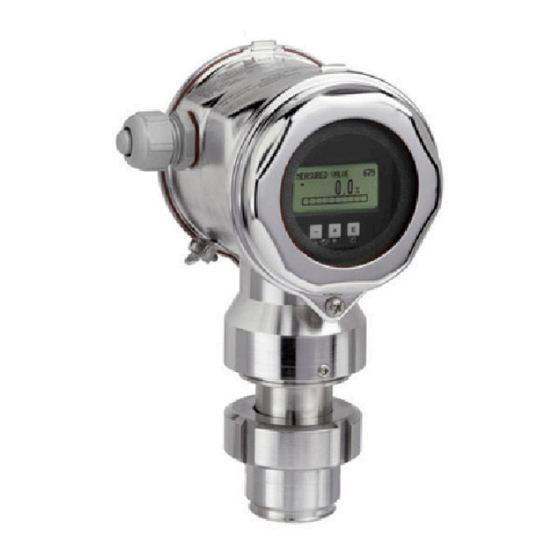

Deltapilot S FMB70
Hydrostatic level measurement
These Brief Operating Instructions are not a substitute for the
Operating Instructions pertaining to the device.
Detailed information about the device can be found in the
Operating Instructions and the additional documentation.
Available for all device versions via
• Internet:
www.endress.com/deviceviewer
• Smartphone/tablet: Endress+Hauser Operations app
Solutions
Services

Advertisement

Table of Contents
loading

Summary of Contents for Endress+Hauser Deltapilot S FMB70

  • Page 1 These Brief Operating Instructions are not a substitute for the Operating Instructions pertaining to the device. Detailed information about the device can be found in the Operating Instructions and the additional documentation. Available for all device versions via • Internet: www.endress.com/deviceviewer • Smartphone/tablet: Endress+Hauser Operations app...
  • Page 2: Associated Documentation

    Associated documentation Deltapilot S FMB70 Associated documentation Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 About this document Document function The Brief Operating Instructions contain all the essential information from incoming acceptance to initial commissioning.
  • Page 3 Deltapilot S FMB70 About this document Symbols 2.2.1 Safety symbols DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. WARNING This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury.
  • Page 4: Registered Trademarks

    The manufacturer is not liable for damage caused by improper or non-intended use. Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability.
  • Page 5: Workplace Safety

    It meets the general safety standards and legal requirements. It also complies with the EC directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. Endress+Hauser...
  • Page 6: Incoming Acceptance And Product Identification

    • Do the data on the nameplate correspond to the order specifications and the delivery note? • Is the documentation available? • If required (see nameplate): are the Safety Instructions (XA) provided? If one of these conditions is not fulfilled, please contact your Endress+Hauser sales office. Storage and transport 4.2.1 Storage conditions Use original packaging.
  • Page 7: Mounting Requirements

    • To ensure optimum readability of the local display, it is possible to rotate the housing by up to 380°. • The local display can be rotated in 90° stages. • Endress+Hauser offers a mounting bracket for installation on pipes or walls. 5.2.1 Installation instructions...
  • Page 8 Mounting Deltapilot S FMB70 A0031804 • Keep the pressure compensation and GORE-TEX® filter (1) free from contamination and water. • Do not clean or touch process membranes with hard or pointed objects. • The device must be installed as follows in order to comply with the cleanability...
  • Page 9 Deltapilot S FMB70 Mounting Level measurement • Always install the device below the lowest measuring point. • Do not install the device at the following positions: • In the filling curtain • In the tank outlet • In the suction area of a pump •...
  • Page 10: Electrical Connection

    Electrical connection Deltapilot S FMB70 5.2.3 Closing the housing covers NOTICE Devices with EPDM cover seal - leaking transmitter! Mineral-, animal- or plant-based lubricants cause the EPDM cover seal to swell and the transmitter to leak as a result. ‣...
  • Page 11 Deltapilot S FMB70 Electrical connection WARNING An incorrect connection compromises electrical safety! ‣ Risk of electric shock and/or explosion! Switch off the supply voltage before connecting the device. ‣ When using the measuring device in hazardous areas, installation must also comply with the applicable national standards and regulations and the Safety Instructions or Installation or Control Drawings.
  • Page 12 Electrical connection Deltapilot S FMB70 A0048612  1 Electrical connection, PROFIBUS PA Housing Internal ground terminal External ground terminal Minimum supply voltage, for version in the non-hazardous area = 9 to 32 V DC Devices with integrated overvoltage protection are labeled "OVP" (overvoltage protection) here.
  • Page 13: Connecting The Measuring Unit

    (20 to 12 AWG) 6.2.4 Cable specification • Endress+Hauser recommends using twisted, shielded two-wire cables (typically cable type • Cable diameter: 5 to 9 mm (0.2 to 0.35 in) For further information on the cable specifications, see Operating Instructions BA00034S "PROFIBUS DP/PA: Guidelines for planning and commissioning", the PNO Guideline 2.092...
  • Page 14: Operation Options

    Operation options Deltapilot S FMB70 Operation options Operation without an operating menu Operation options Explanation Graphic Local operation without The device is operated using the operating keys and device display DIP switches on the electronic insert. Display Zero damp not used on: Ö...
  • Page 15: Function Of The Dip Switches

    Deltapilot S FMB70 Operation options Zero S D A 0 1 2 3 4 5 6 7 8 Address A0020032 DIP switch for locking/unlocking parameters relevant to the measured value DIP switch for switching damping on/off Green LED to indicate value is accepted...
  • Page 16: Hardware Addressing

    Operation options Deltapilot S FMB70 7.1.2 PROFIBUS PA communication protocol Device identification and addressing Please note the following: • An address must be assigned to each PROFIBUS PA device. The control system/master can only recognize the device if the address is set correctly.
  • Page 17 Deltapilot S FMB70 Operation options Software addressing A software address is set as follows: Set DIP switch 8 (SW/HW) to "On" (factory setting). The device is restarted. The device reports its current address. Factory setting: 126. Configure the address via the configuration program.
  • Page 18 Operation options Deltapilot S FMB70 – A0016498 The following table illustrates the symbols that can appear on the local display. Four symbols may appear at the same time. Symbol Meaning Alarm symbol • Symbol flashing: warning, device continues measuring • Symbol permanently lit: error, device does not continue measuring Note: The alarm symbol may overlie the tendency symbol.
  • Page 19 Deltapilot S FMB70 Operation options Operating key(s) Meaning Contrast setting of local display: darker Contrast setting of local display: brighter ESC functions: • Exit the editing mode without saving the modified value • You are in the menu within a function group: the first time you press the keys simultaneously, you go back one parameter in the function group.
  • Page 20 Commissioning Deltapilot S FMB70 Set URV Operation Use the  key to change "1" to "5". 5 0 0 . 0 0 0 mbar Press the  key to confirm "5". The cursor jumps to the next position (highlighted in black).
  • Page 21: Configuring Messages

    Deltapilot S FMB70 Commissioning WARNING The permitted process pressure is exceeded! Risk of injury if parts burst! Warnings are displayed if the pressure is too high ‣ If a pressure that is greater than the maximum permitted pressure is present at the device, messages "E115 sensor overpressure"...
  • Page 22: Position Adjustment

    Commissioning Deltapilot S FMB70 Position adjustment Due to the orientation of the device, there may be a shift in the measured value, i.e. when the vessel is empty, the measured value does not display zero. There are three ways to perform...
  • Page 23 Deltapilot S FMB70 Commissioning position adjustment. (Menu path: (GROUP SELECTION →) OPERATING MENU → SETTINGS → POSITION ADJUST). Parameter name Description POS. ZERO ADJUST, Entry Pos. zero adjustment – the pressure difference between zero (set point) and the measured pressure need not be known Example: •...
  • Page 24 Commissioning Deltapilot S FMB70 Quick Setup menu for the "Pressure" measuring mode Local operation FieldCare Measured value display Measured value display Switch from the measured value display to the GROUP Select the QUICK SETUP menu. SELECTION with . GROUP SELECTION MEASURING MODE Select the MEASURING MODE parameter.
