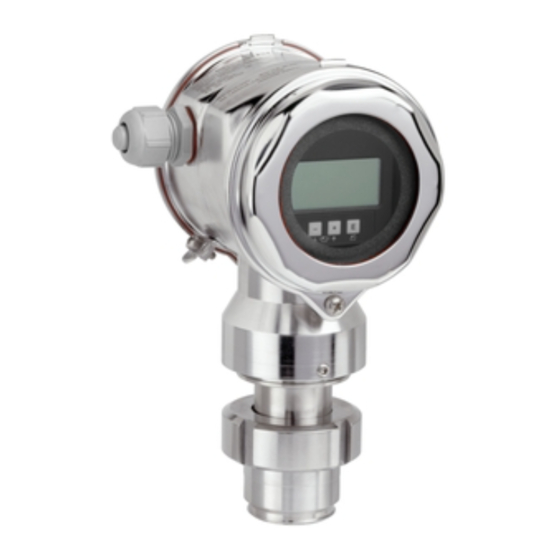

Endress+Hauser Deltapilot S FMB70 Operating Instructions Manual

Hydrostatic level measurement
Hide thumbs Also See for Deltapilot S FMB70:
Table of Contents

Advertisement

Quick Links

Download this manual
Operating Instructions
Deltapilot S FMB70
Hydrostatic level measurement
BA00332P/00/EN/15.13
71204552
valid from Software version:
02.11.zz

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Deltapilot S FMB70

Summary of Contents for Endress+Hauser Deltapilot S FMB70

  • Page 1 Operating Instructions Deltapilot S FMB70 Hydrostatic level measurement BA00332P/00/EN/15.13 71204552 valid from Software version: 02.11.zz...
  • Page 2 Overview documentation Deltapilot S FMB70 with 4...20 mA HART Overview documentation Device Documentation Content Remarks Deltapilot S Technical Information TI00416P Technical data The documentation is available on the Internet. → See: www.endress.com → Download 4...20 mA HART Operating Instructions BA00332P –...

  • Page 3: Table Of Contents

    Deltapilot S FMB70 with 4...20 mA HART Table of contents Table of contents Safety instructions ....4 Confirming messages ..... . . 57 Repair .

  • Page 4: Safety Instructions

    Safety instructions Deltapilot S FMB70 with 4...20 mA HART Safety instructions Designated use The Deltapilot S is a hydrostatic pressure transmitter for measuring level and pressure. The manufacturer accepts no liability for damages resulting from incorrect use or use other than that designated.

  • Page 5: Notes On Safety Conventions And Icons

    Deltapilot S FMB70 with 4...20 mA HART Safety instructions Notes on safety conventions and icons In order to highlight safety-relevant or alternative operating procedures in the manual, the following conventions have been used, each indicated by a corresponding icon in the margin.

  • Page 6: Identification

    Identification Deltapilot S FMB70 with 4...20 mA HART Identification Device designation 2.1.1 Nameplate Note! • The MWP (maximum working pressure) is specified on the nameplate. This value refers to a reference temperature of 20°C (68°F) or 100°F (38 °C) for ANSI flanges.
  • Page 7 Deltapilot S FMB70 with 4...20 mA HART Identification Devices for use in hazardous areas are fitted with an additional nameplate. Dat.: P01-xMD7xxxx-18-xx-xx-xx-002 Fig. 2: Additional nameplate for devices for hazardous areas EC type examination certificate number Type of protection e.g. II 1/2 G Ex ia IIC T4/T6 Electrical data Safety Instructions number e.g.
  • Page 8 Identification Deltapilot S FMB70 with 4...20 mA HART Hygenic stainless steel housing (T17) Order Code: Ser.-No.: Span Mat. Dat.: Bei Sauerstoffeinsatz/for oxygen service: Tmax Pmax P01-XMX7Xxxx-18-xx-xx-xx-001 Fig. 4: Nameplate Device name Address of manufacturer Order code See the specifications on the order confirmation for the meanings of the individual letters and digits.

  • Page 9: Scope Of Delivery

    The device complies with the applicable standards and regulations as listed in the EC declaration of conformity and thus complies with the statutory requirements of the EC Directives. Endress+Hauser confirms the successful testing of the device by affixing to it the CE mark.

  • Page 10: Installation

    → ä 15, Section 3.3.5 "Rotating the housing". • The on-site display can be rotated in 90° stages. • Endress+Hauser offers a mounting bracket for installing on pipes or walls. → ä 13, Section 3.3.3 "Wall and pipe-mounting (optional)". Endress+Hauser...
  • Page 11 Deltapilot S FMB70 with 4...20 mA HART Installation 3.3.1 Installation instructions Note! • If a heated Deltapilot S is cooled during the cleaning (e.g. by cold water), a vacuum develops for a short time, whereby water can penetrate the sensor through the pressure compensation (1). If this is the case, mount the sensor with the pressure compensation (1) pointing downwards.
  • Page 12 Installation Deltapilot S FMB70 with 4...20 mA HART – in the suction area of a pump – or at a point in the tank that can be affected by pressure pulses from the agitator • The calibration and functional test can be carried out more easily if you mount the device downstream of a shutoff device.
  • Page 13 Deltapilot S FMB70 with 4...20 mA HART Installation 3.3.3 Wall and pipe-mounting (optional) Endress+Hauser offers a mounting bracket for installing on pipes or walls. mm (in) P01-xMx5xxxx-06-xx-xx-xx-001 Please note the following when mounting: • In the case of pipe mounting, the nuts on the bracket must be tightened uniformly with a torque of at least 5 Nm (3.69 lbs ft).
  • Page 14 Installation Deltapilot S FMB70 with 4...20 mA HART 3.3.4 Assembling and mounting the "separate housing" version r ³ 120 mm P01-FMB70xxx-11-xx-xx-xx-003 Fig. 7: "Separate housing" version In the "separate housing" version, the sensor is supplied with process connection and cable fitted.
  • Page 15 Deltapilot S FMB70 with 4...20 mA HART Installation 3.3.5 Rotating the housing The housing can be rotated up to 380° by loosening the Allen screw. max. 380° P01-FMB70xxx-17-xx-xx-xx-000 Fig. 8: Aligning the housing – For aluminium housing (T14/T15): Loosen setscrew with a 2 mm (0.08 in) Allen key.

  • Page 16: Post-Installation Check

    Installation Deltapilot S FMB70 with 4...20 mA HART 3.3.8 Closing the housing cover Note! When closing the housing cover, please ensure that the thread of the cover and housing are free from dirt, e.g. sand.If you feel any resistance when closing the cover, check the thread on both again to ensure that they are free from dirt.

  • Page 17: Wiring

    Deltapilot S FMB70 with 4...20 mA HART Wiring Wiring Connecting the device Warning! If the operating voltage is > 35 VDC: Dangerous contact voltage at terminals. Risk of electric shock! In a wet environment, do not open the cover if voltage is present.
  • Page 18 Wiring Deltapilot S FMB70 with 4...20 mA HART 4.1.1 Connecting devices with an M12 connector PIN assignment for M12 connector Meaning Signal + – Not assigned Signal – Earth A0011175 4.1.2 Connecting devices with Harting plug Han7D + – –...

  • Page 19: Connecting The Measuring Unit

    Deltapilot S FMB70 with 4...20 mA HART Wiring Connecting the measuring unit 4.2.1 Supply voltage Note! • All explosion protection data are given in separate documentation which is available upon request. The Ex documentation is supplied as standard with all devices approved for use in explosion hazardous areas.
  • Page 20 Connecting Commubox FXA195 The Commubox FXA195 connects intrinsically safe transmitters with the HART protocol to a computer's USB port. This allows remote operation of the transmitter using Endress+Hauser's FieldCare operating program. Power is supplied to the Commubox through the USB port. The Commubox is also suitable for connection to intrinsically safe circuits.

  • Page 21: Potential Matching

    FieldCare Connecting Commubox FXA291 The Commubox FXA291 connects Endress+Hauser field instruments with CDI interface (= Endress+Hauser Common Data Interface) to the USB interface of a personal computer or a notebook. For details refer to TI00405C/07/en. Note! For the following Endress+Hauser instruments you need the "ToF Adapter FXA291" as an additional accessory: •...

  • Page 22: Operation

    Operation Deltapilot S FMB70 with 4...20 mA HART Operation Feature 20 "Output; operation" in the order code provides you with information on the operating options available to you. Versions in the order code Operation 4 to 20 mA HART; external operation, LCD Via on-site display and 3 key on the exterior of the device 4 to 20 mA HART;...

  • Page 23: Operating Elements

    Deltapilot S FMB70 with 4...20 mA HART Operation The following table illustrates the symbols that can appear on the on-site display. Four symbols can occur at one time. Symbol Meaning Alarm symbol – Symbol flashing: warning, device continues measuring. – Symbol permanently lit: error, device does not continue measuring.
  • Page 24 Operation Deltapilot S FMB70 with 4...20 mA HART 5.2.2 Function of the operating elements – on-site display not connected Press and hold the key or the key combination for at least 3 seconds to execute the corresponding function. Press the key combination for at least 6 seconds for a reset.

  • Page 25: On-Site Operation - On-Site Display Not Connected

    Deltapilot S FMB70 with 4...20 mA HART Operation On-site operation – on-site display not connected Note! /M-DAT module → ä 30, Section 5.5 "HistoROM®/M- ® To operate the device with a HistoROM DAT (optional)". 5.3.1 Level measuring mode If no on-site display is connected, the following functions are possible by means of the three keys on the electronic insert or on the exterior of the device: •...
  • Page 26 Operation Deltapilot S FMB70 with 4...20 mA HART Carry out position adjustment. Setting lower pressure value. Setting upper pressure value. Pressure is present at device. Desired pressure for lower pressure Desired pressure for upper pressure value (EMPTY PRESSURE ) is...
  • Page 27 Deltapilot S FMB70 with 4...20 mA HART Operation 5.3.2 Pressure measuring mode If no on-site display is connected, the following functions are possible by means of the three keys on the electronic insert or on the exterior of the device: •...

  • Page 28: On-Site Operation - On-Site Display Connected

    Operation Deltapilot S FMB70 with 4...20 mA HART On-site operation – on-site display connected If the on-site display is connected, the three operating keys are used to navigate through the operating menu, → ä 24, Section 5.2.3 "Function of the operating elements – on-site display connected".
  • Page 29 Deltapilot S FMB70 with 4...20 mA HART Operation 5.4.2 Selecting an option Example: select "English" as the language of the menu. On-site display Operation German is selected as the language. A ✓in front of the menu text indicates the active option.

  • Page 30: Historom®/M-Dat (Optional)

    Operation Deltapilot S FMB70 with 4...20 mA HART On-site display Operation Use "E" to save the new value and exit the editing mode. →See next graphic. P01-xxxxxxxx-19-xx-xx-xx-031 The new value for the damping is now 30.0 s. – Jump to the next parameter with "E".
  • Page 31 Deltapilot S FMB70 with 4...20 mA HART Operation Note! ® • The HistoROM /M-DAT module may be retrofitted at any time (Order No.: 52027785). ® • The HistoROM data and the data in the device are analysed once a HistoROM /M-DAT is attached to the electronic insert and power is reestablished to the device.
  • Page 32 Operation Deltapilot S FMB70 with 4...20 mA HART ® Copying configuration data from a HistoROM /M-DAT to a device: Note! The operation must be unlocked. Disconnect device from supply voltage. ® Attach the HistoROM /M-DAT module to the electronic insert. Configuration data from ®...
  • Page 33 Deltapilot S FMB70 with 4...20 mA HART Operation ® Copying configuration data from a HistoROM /M-DAT to a device: Note! The operation must be unlocked. Disconnect device from supply voltage. ® Attach the HistoROM /M-DAT module to the electronic insert. Configuration data from ®...

  • Page 34: Operation Via Sfx100

    FieldCare is an Endress+Hauser asset management tool based on FDT technology. With FieldCare, you can configure all Endress+Hauser devices as well as devices from other manufacturers that support the FDT standard. Hardware and software requirements you can find on the internet: www.endress.com →...

  • Page 35: Locking/Unlocking Operation

    Deltapilot S FMB70 with 4...20 mA HART Operation Locking/unlocking operation Once you have entered all the parameters, you can lock your entries against unauthorised and undesired access. You have the following possibilities for locking/unlocking the operation: • Via a DIP-switch on the electronic insert, locally on the display.

  • Page 36: Factory Setting (Reset)

    Operation Deltapilot S FMB70 with 4...20 mA HART 5.8.2 Locking/unlocking operation via on-site display or remote operation Description Locking operation 1. Select INSERT PIN NO. parameter, Menu path: OPERATING MENU → OPERATION → INSERT PIN NO. 2. To lock operation, enter a number for this parameter between 0 to 9999 that is ≠100.
  • Page 37 Deltapilot S FMB70 with 4...20 mA HART Operation Reset code Description and effect 7864 Total reset – Affects the following parameters: – Function group POSITION ADJUSTMENT – Function group BASIC SETUP – Function group EXTENDED SETUP – Function group LINEARISATION (an existing linearisation table is erased) –...

  • Page 38: Commissioning

    Commissioning Deltapilot S FMB70 with 4...20 mA HART Commissioning Warning! • If a pressure smaller than the minimum permitted pressure is present at the device, the messages "E120 Sensor low pressure" and "E727 Sensor pressure error - overrange" are output in succession.

  • Page 39: Position Adjustment

    Deltapilot S FMB70 with 4...20 mA HART Commissioning Position adjustment Due to the orientation of the device, there may be a shift in the measured value, i.e. when the container is empty or partly filled, the measured value parameter does not display zero. There are three options to choose from when performing position adjustment.

  • Page 40: Level Measurement

    Commissioning Deltapilot S FMB70 with 4...20 mA HART Level measurement 6.4.1 Information on level measurement Note! • The Pressure and Level operating modes each have a quick setup menu which guides you through the most important basic functions. See → ä 42 for the "Level" quick setup menu.
  • Page 41 Deltapilot S FMB70 with 4...20 mA HART Commissioning 6.4.2 Overview of level measurement Measuring task LEVEL Measured Description Comment Measured value SELECTION/ variable options display LEVEL MODE The measured variable is LEVEL SELECTION: Via OUTPUT UNIT – Calibration with reference –...
  • Page 42 Commissioning Deltapilot S FMB70 with 4...20 mA HART 6.4.3 Quick Setup menu for Level measuring mode Note! • Some parameters are only displayed if other parameters are appropriately configured. For example, the EMPTY CALIB. parameter is only displayed in the following cases: –...
  • Page 43 Deltapilot S FMB70 with 4...20 mA HART Commissioning On-site operation Digital communication POS. ZERO ADJUST POS. ZERO ADJUST Due to orientation of the device, there may be a shift in Due to orientation of the device, there may be a shift in the measured value.

  • Page 44: Pressure Measurement

    Commissioning Deltapilot S FMB70 with 4...20 mA HART Pressure measurement 6.5.1 Information on pressure measurement Note! • There is a Quick Setup menu for each of the measuring modes Pressure and Level which guides you through the most important basic functions. With the setting in the MEASURING MODE parameter, you specify which Quick Setup menu should be displayed.
  • Page 45 Deltapilot S FMB70 with 4...20 mA HART Commissioning On-site operation Digital communication SET LRV SET LRV Set the measuring range (enter 4 mA value). Set the measuring range (enter 4 mA value). Specify a pressure value for the lower current value Specify a pressure value for the lower current value (4 mA value).

  • Page 46: Maintenance

    Maintenance Deltapilot S FMB70 with 4...20 mA HART Maintenance ® Keep the pressure compensation and GORE-TEX filter (1) free from contaminations. P01-FMB70xxx-17-xx-xx-xx-003 Exterior cleaning Please note the following points when cleaning the device: • The cleaning agents used should not attack the surface and the seals.

  • Page 47: Trouble-Shooting

    • If the device detects a defect in the on-site display during initialization, special error messages are generated. → For the error messages, → ä 54, Section 8.1.1 "On-site display error messages". • For support and further information, please contact Endress+Hauser Service. • → See also Section 8.4 ff.
  • Page 48 Trouble-shooting Deltapilot S FMB70 with 4...20 mA HART Code Error type/ Corresponds Message/description Cause Measure Prio NA 64 NE 107 rity 115 (E115) Error Out of B>Sensor overpressure – Overpressure present. – Reduce pressure until message specification disappears. factory – Sensor defect.
  • Page 49 Deltapilot S FMB70 with 4...20 mA HART Trouble-shooting Code Error type/ Corresponds Message/description Cause Measure Prio NA 64 NE 107 rity 613 (W613) Warning Funktion I>Simulation is active – Simulation is switched on, i.e. the – Switch off simulation. check (C) device is not measuring at present.
  • Page 50 Trouble-shooting Deltapilot S FMB70 with 4...20 mA HART Code Error type/ Corresponds Message/description Cause Measure Prio NA 64 NE 107 rity 707 (A707) Alarm Funktion B>X-VAL. of lin. table out of – At least one X-VALUE in the – Carry out calibration again. (→...
  • Page 51 Deltapilot S FMB70 with 4...20 mA HART Trouble-shooting Code Error type/ Corresponds Message/description Cause Measure Prio NA 64 NE 107 rity 719 (A719) Alarm Funktion B>Y-VAL of lin. table out of – At least on Y-VALUE in the – Carry out calibration again. (→...
  • Page 52 Trouble-shooting Deltapilot S FMB70 with 4...20 mA HART Code Error type/ Corresponds Message/description Cause Measure Prio NA 64 NE 107 rity 729 (A729) Alarm Failure (F) B>RAM error – Fault in the main electronics. – Briefly disconnect device from the power supply.
  • Page 53 Deltapilot S FMB70 with 4...20 mA HART Trouble-shooting Code Error type/ Corresponds Message/description Cause Measure Prio NA 64 NE 107 rity 740 (E740) Error Maintenance C>Calculation overflow, bad – Level measuring mode: the – Check configuration and carry out request (M)
  • Page 54 Trouble-shooting Deltapilot S FMB70 with 4...20 mA HART 8.1.1 On-site display error messages If the device detects a defect in the on-site display during initialization, the following error messages can be displayed: Message Measure Initialization, VU Electr. Defect A110 Exchange on-site display.

  • Page 55: Response Of Outputs To Errors

    Deltapilot S FMB70 with 4...20 mA HART Trouble-shooting Response of outputs to errors The device differentiates between the error types Alarm, Warning and Error. → See the following table and → ä 47, Section 8.1 "Messages". Output A (Alarm) W (Warning)
  • Page 56 Trouble-shooting Deltapilot S FMB70 with 4...20 mA HART 8.2.1 Configuring current output for an alarm You can configure the current output for the event of an alarm by means of the OUTPUT FAIL MODE, ALT. CURR. OUTPUT and SET MAX. ALARM parameters. These parameters are displayed in the OUTPUT group (menu path: (GROUP SELECTION →) OPERATING MENU →...

  • Page 57: Confirming Messages

    (see Chap. 8.6 "Spare Parts" on → ä 58). Note! • For certified devices, please consult Chapter "Repair of Ex-certified devices". • For more information on service and spare parts contact the Endress+Hauser Service. → See www.endress.com/worldwide. Repair of Ex-certified devices...

  • Page 58: Spare Parts

    Trouble-shooting Deltapilot S FMB70 with 4...20 mA HART Spare Parts An overview of the spare parts for your device is available in the internet at www.endress.com. To obtain information on the spare parts, proceed as follows: Go to "www.endress.com" and select your country.

  • Page 59: Return

    The measuring device must be returned if repairs or a factory calibration are required, or if the wrong measuring device has been ordered or delivered. According to legal regulations, Endress+Hauser, as a ISO-certified company, is required to follow certain procedures when handling returned products that are in contact with process fluids.

  • Page 60: Technical Data

    Technical data Deltapilot S FMB70 with 4...20 mA HART Technical data For technical data, please refer to the Technical Information TI00416P for Deltapilot S. → ä 2, "Overview documentation". Appendix 10.1 Operating menu for on-site display, ToF Tool, FieldCare and HART handheld terminal Note! •...
  • Page 61 Deltapilot S FMB70 with 4...20 mA HART Appendix Measured value GROUP SELECTION LANGUAGE LEVEL SELECTION QUICK SETUP OPERATING MENU MEASURING MODE MEASURING MODE SETTINGS POSITION ADJUSTMENT MEASURING MODE Pressure Level POS. ZERO ADJUST LEVEL SELECTION POS. ZERO ADJUST POS. INPUT VALUE SET LRV POS.
  • Page 62 Appendix Deltapilot S FMB70 with 4...20 mA HART BASIC SETUP MEASURING MODE Pressure Level PRESS. ENG. UNIT LEVEL SELECTION CUSTOMER UNIT P Level Easy Pressure Level Easy Height Level Standard CUST. UNIT FACT. P PRESS. ENG. UNIT PRESS. ENG. UNIT...
  • Page 63 Deltapilot S FMB70 with 4...20 mA HART Appendix Continuation BASIC SETUP "Level", Height Volume Mass see also the previous page LEVEL SELECTION = HEIGHT UNIT UNIT VOLUME MASS UNIT Level Standard CUTOMER UNIT H CUSTOMER UNIT V CUSTOMER UNIT M PRESS.
  • Page 64 Appendix Deltapilot S FMB70 with 4...20 mA HART EXTENDED SETUP LINEARISATION LINEARISATION Level measuring Level measuring mode only mode only Display via on-site Display via digital communication display only Pressure Level TEMP. ENG UNIT TEMP. ENG UNIT TANK CONTENT MIN...
  • Page 65 Deltapilot S FMB70 with 4...20 mA HART Appendix SAFETY CONFIRM. DISPLAY OUTPUT OUTPUT CURRENT SAFETY LOCK MENU DESCRIPTOR SAFETY PASSWORD MAIN DATA FORMAT CURR. CHARACT. OUTPUT FAIL MODE DIGIT SETS ALTERNATE DATA ALT. CURR. OUTPUT CURRENT OUTPUT LANGUAGE ACK. ALARM MODE DISPLAY CONTRAST SET MAX.
  • Page 66 Appendix Deltapilot S FMB70 with 4...20 mA HART TRANSMITTER INFO PROCESS INFO HART DATA TRANSMITTER DATA PROCESS CONNECTION SENSOR DATA PROCESS VALUE PEAK HOLD INDICATOR Level Pressure BUS ADDRESS DEVICE SERIAL No Pmax PROC. CONN. SENSOR SER. NO. MEASURED VALUE MEASURED VALUE COUNTER:P >...
  • Page 67 Deltapilot S FMB70 with 4...20 mA HART Appendix OPERATION DIAGNOSTICS SERVICE SIMULATION MESSAGES USER LIMITS SYSTEM 2 ENTER RESET CODE SIMULATION MODE ALARM STATUS Pmin ALARM WINDOW CURR. TRIM 4mA OPERATING HOURS LAST DIAG. CODE Pmax ALARM WINDOW CURR. TRIM 20mA INSERT PIN NO ACK.
  • Page 68 Appendix Deltapilot S FMB70 with 4...20 mA HART Endress+Hauser...
  • Page 69 Deltapilot S FMB70 with 4...20 mA HART Appendix Endress+Hauser...

  • Page 70: Index

    Deltapilot S FMB70 with 4...20 mA HART Index Index Numerics Pressure measurement ......44 Pressure measurement, on-site operation .
  • Page 71 Deltapilot S FMB70 with 4...20 mA HART Index Endress+Hauser...
  • Page 72 www.endress.com/worldwide BA00332P/00/EN/15.13 71204552 CCS/FM+SGML 9 71204552...
