2.2.

Disassembly Instructions

Power Cord (1108), Telephone Line Cable (1109), LAN Cable, Recording
2.2.1.
Paper Tray Assembly (1107), Paper Cassette
(1)
(2)
(5)
Edition 1.0
(3)
(4)

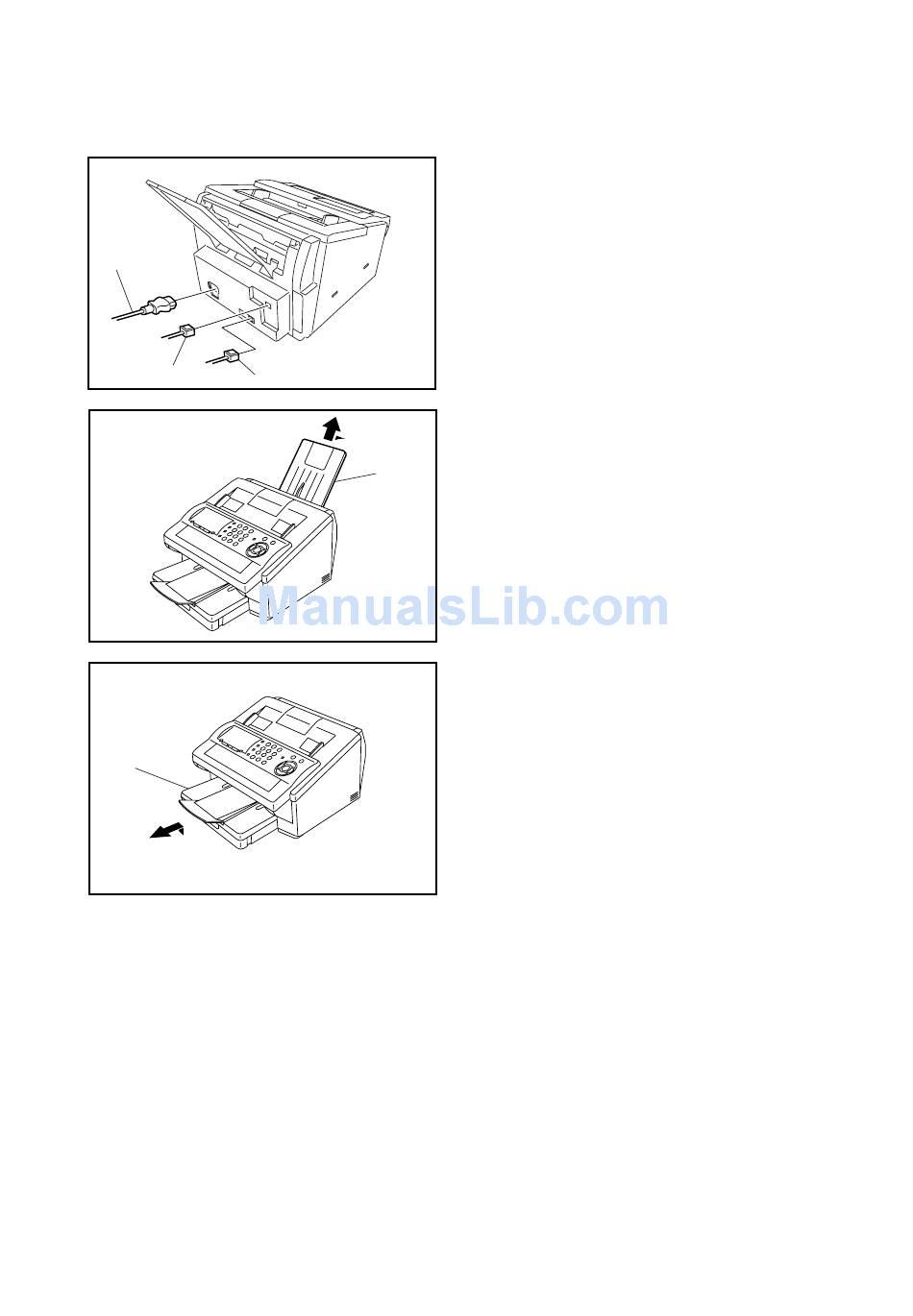

(1) Disconnect the Power Cord (1108).
(2) Disconnect the Telephone Line Cable (1109).
(3) Disconnect the LAN Cable.
(4) Remove the Recording Paper Tray Assembly
(1107).
(5) Remove the Paper Cassette.
