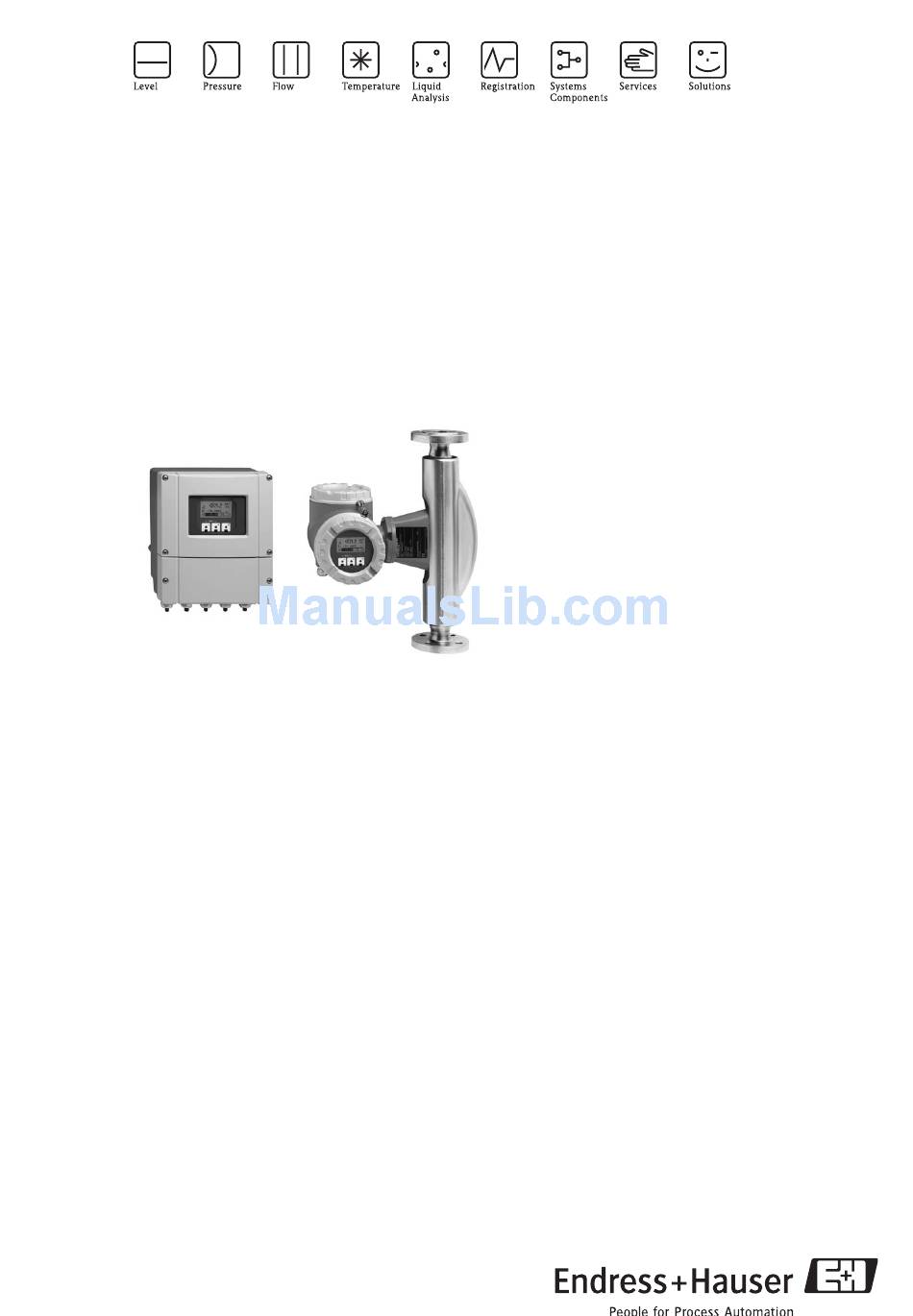

Endress+Hauser Promass 84F Technical Information

Technical Information

Proline Promass 84F
Coriolis Mass Flow Measuring System
The universal and multivariable flowmeter for liquids and gases
for custody transfer
Applications
The Coriolis measuring principle operates independently
of the physical fluid properties, such as viscosity and
density.
• Extremely accurate, verified measurement of liquids
(other than water) and for gases
• Fluid temperatures up to +350 °C (+660 °F)
• Process pressures up to 100 bar (1450 psi)
• Mass flow measurement
up to 2200 t/h (80840 lb/min)
Approvals for custody transfer:
• PTB, METAS, BEV, MID, NTEP, MC
Approvals for hazardous area:
• ATEX, FM, CSA, TIIS, IECEx, NEPSI
Approvals in the food industry/hygiene sector:
• 3A, FDA, EHEDG
Connection to the common process control systems:
• HART, MODBUS
Relevant safety aspects:
• Secondary containment up to 40 bar (580 psi),
Pressure Equipment Directive, AD 2000
• Purge connections or rupture disk (optional)
TI103D/06/en/02.10
71109108
Your benefits
The Promass measuring devices make it possible to
simultaneously record several process variables (mass/
density/temperature) for various process conditions
during measuring operation.
The Proline transmitter concept comprises:
• Modular device and operating concept resulting in a
higher degree of efficiency
• Diagnostic ability and data back-up for increased
process quality
The Promass sensors, tried and tested in over 100000
applications, offer:
• Best performance due to PremiumCal
• Multivariable flow measurement in compact design
• Insensitivity to vibrations thanks to balanced two-tube
measuring system
• Immune from external piping forces due to robust
design
• Easy installation without taking inlet and outlet runs
into consideration
