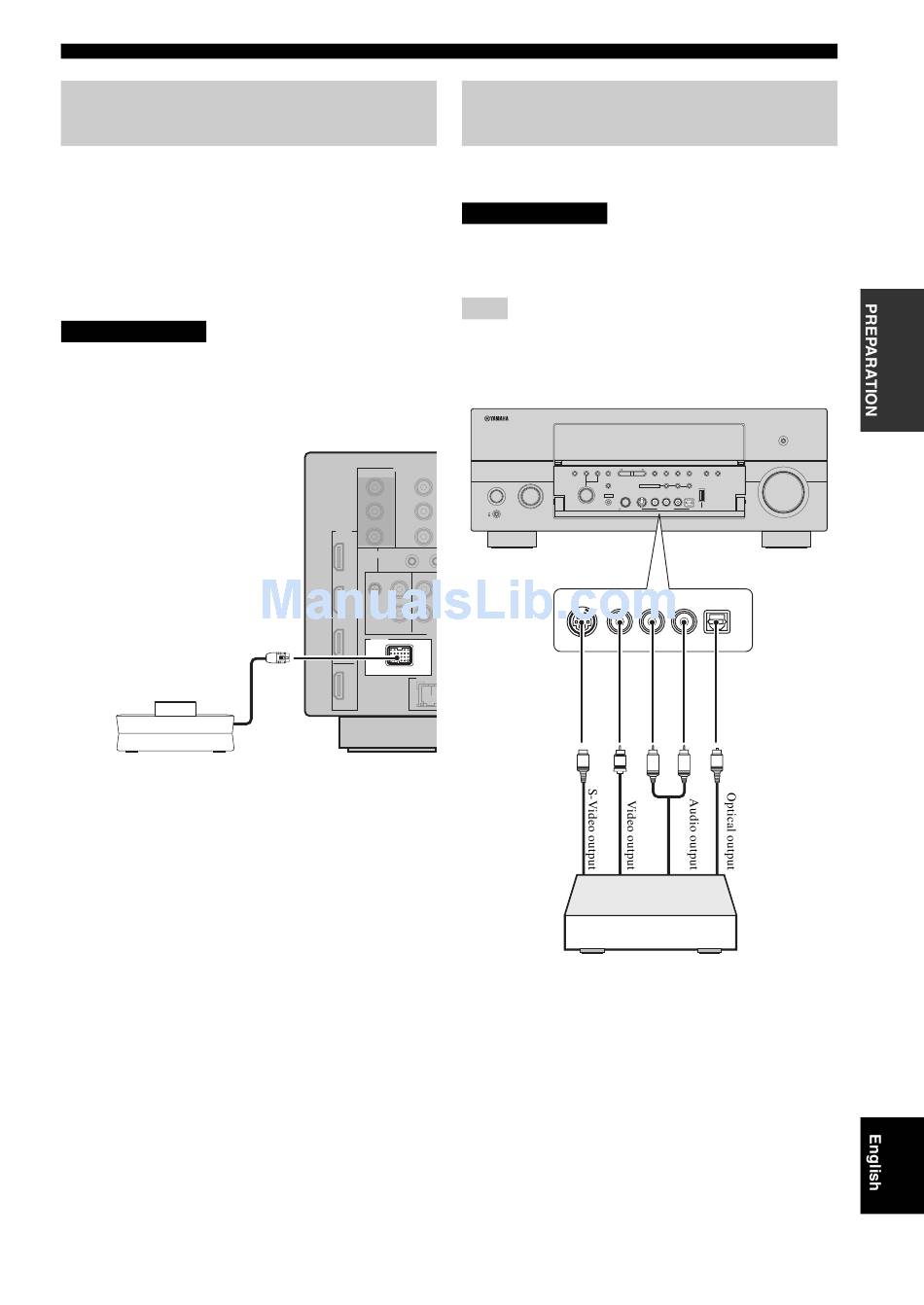

Connecting A Yamaha Ipod Universal Dock; Using The Video Aux Jacks On The Front Panel - Yamaha RX-V2700 Owner's Manual

Connecting a YAMAHA iPod
universal dock
This unit is equipped with the DOCK terminal on the rear
panel that allows you to connect a YAMAHA iPod
universal dock (such as the YDS-10, sold separately)
where you can station your iPod and control playback of
your iPod using the supplied remote control. Connect a
YAMAHA iPod universal dock (such as the YDS-10, sold
separately) to the DOCK terminal on the rear panel of this
unit using its dedicated cable.
CAUTION
Do not connect this unit to the AC power supply
until all connections between components are
complete.
YAMAHA iPod universal dock
(such as the YDS-10,
sold separately)
Using the VIDEO AUX jacks on the
front panel
Use the VIDEO AUX jacks on the front panel to connect a
game console or a video camera to this unit.
CAUTION
Be sure to turn off the volume of this unit and
other components before making connections.
Note
The audio signals input at the DOCK terminal on the rear panel
take priority over the ones input at the VIDEO AUX jacks.
