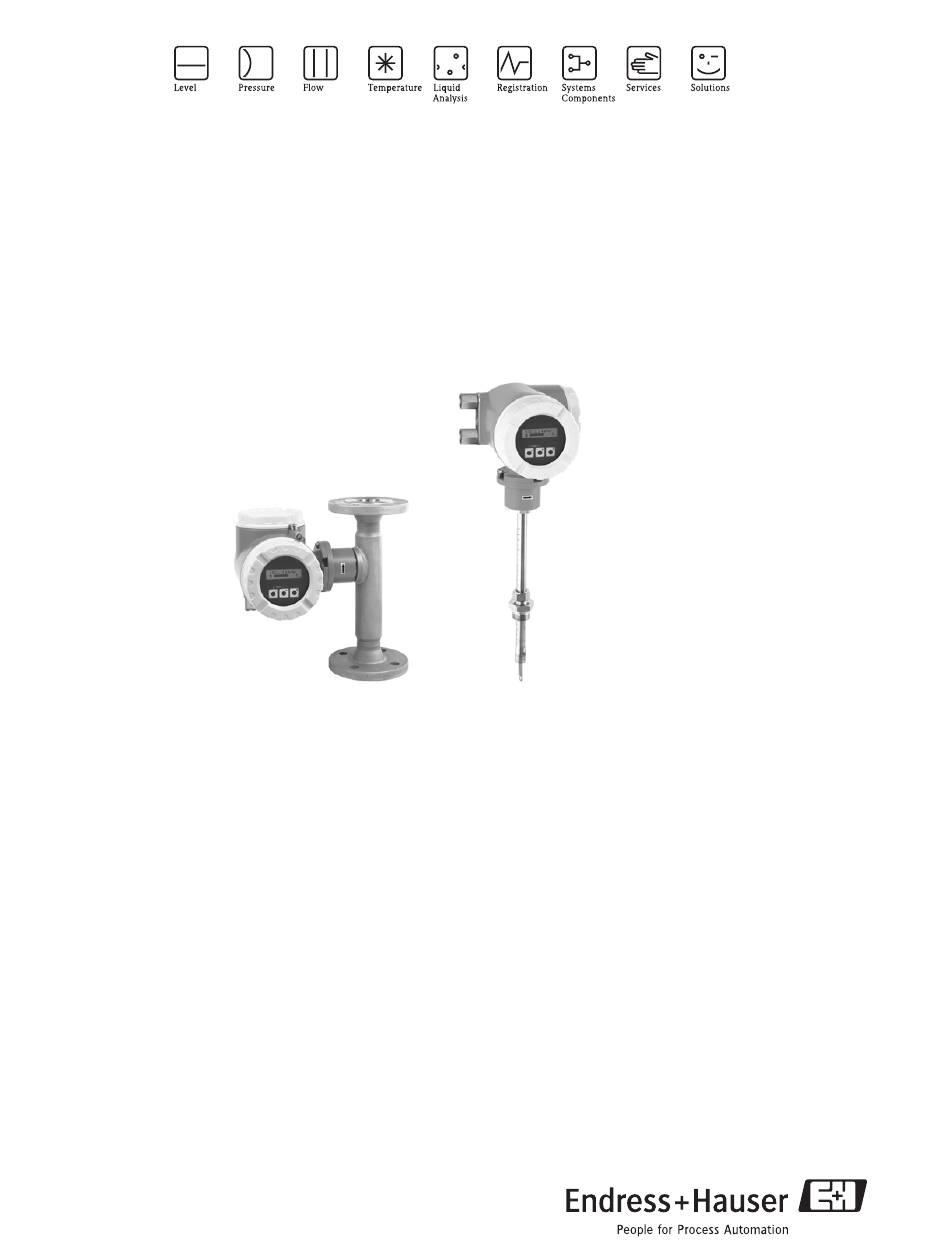

Technical Information
Proline t-mass 65F, 65I
Thermal mass flow measuring system
Direct mass flow measurement of gases
Application
For measuring the mass flowrate of a wide range of gas
types e.g.
• Compressed air
• Natural gas flow to boilers / dryers
• Carbon Dioxide flow in breweries
• Biogas and aeration air in waste water plants
• Gas production (e. g. Ar, N
, CO
2
• Leakage detection
Approvals for hazardous area:
• ATEX, FM, CSA
Connection to all common process control systems:
®
®
• HART
, Profibus
DP, MODBUS
TI069D/24/ae
Your benefits
Direct measurement of gas mass flow. Provides tempera-
ture as an output.
The Proline transmitter concept comprises:
• Modular device and operating concept resulting in a
higher degree of efficiency
• Quick setup operating menus for ease of commission-
, He, O
)
ing
2
2
• On board software freely allows the selection of up to
20 pure gases and creation of mixed gases with a
maximum of 8 components (e. g. Biogas)
The t-mass sensors offer:
• Negligible pressure drop or loss
®
RS485
• Wide turndown of up to 100:1
• Insertion version can be programmed for circular pipe
or rectangular ducting installation
• Each device individually calibrated and delivered with
a traceable certificate
• Can be calibrated with flow conditioner on request.
• Optional cold tap device for insertion allowing ease of
removal/replacement for low pressure and non-toxic
gas applications.
