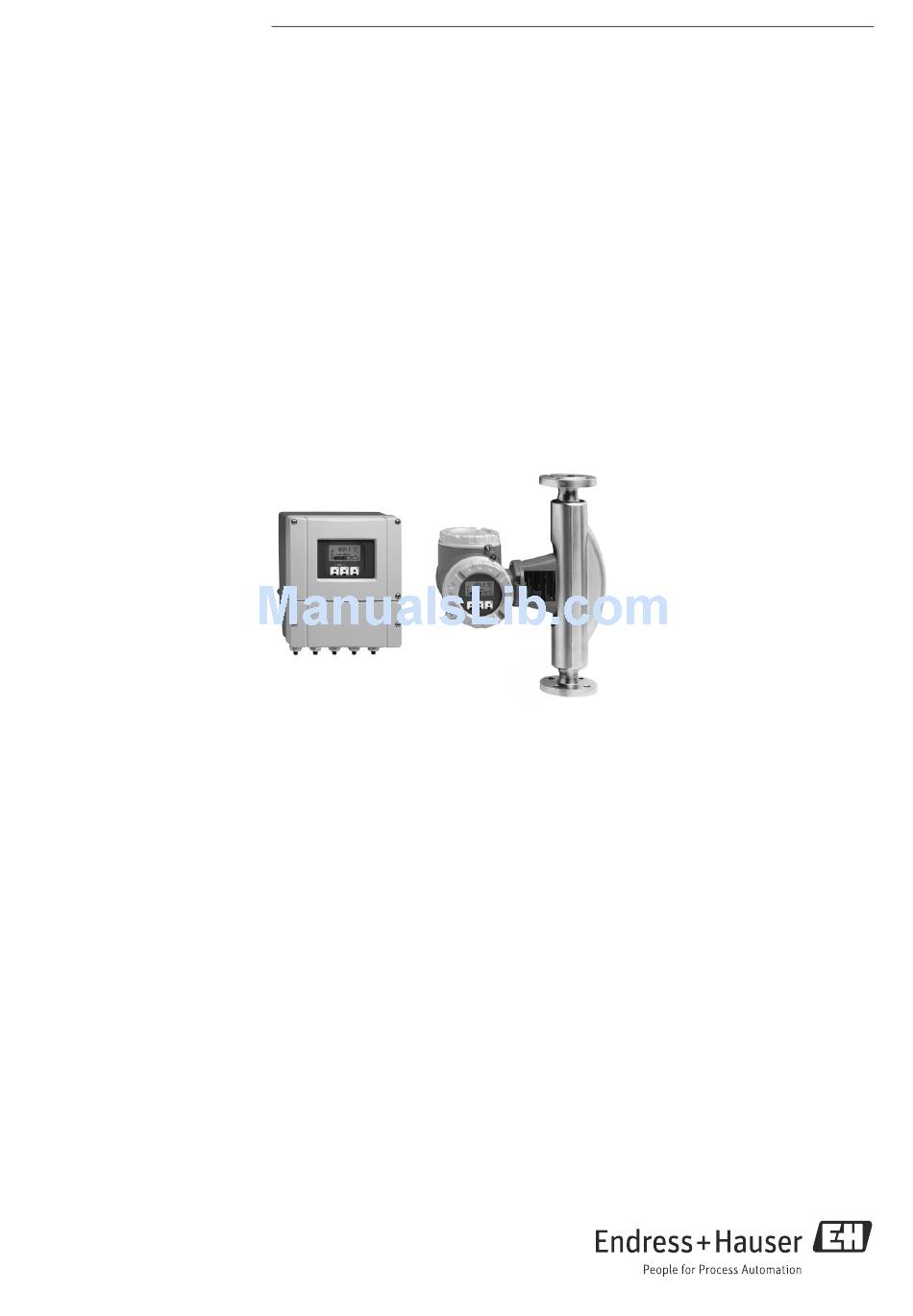

TI00103D/06/EN/13.14
71231035
Premium accuracy, robustness and transmitter for custody transfer
Application
• Measuring principle operates independently of physical
fluid properties such as viscosity or density
• Highest measurement performance for liquids and gases
under varying, demanding process conditions
Device properties
• Mass flow: measured error ±0,05% (PremiumCal)
• Rated secondary containment up to 40 bar (580 psi)
• Nominal diameter: DN 8 to 250 (³⁄₈ to 10")
• 4-line backlit display with touch control
• Device in compact or remote version
• Phase-shifted pulse, HART, Modbus RS485
Products

Technical Information

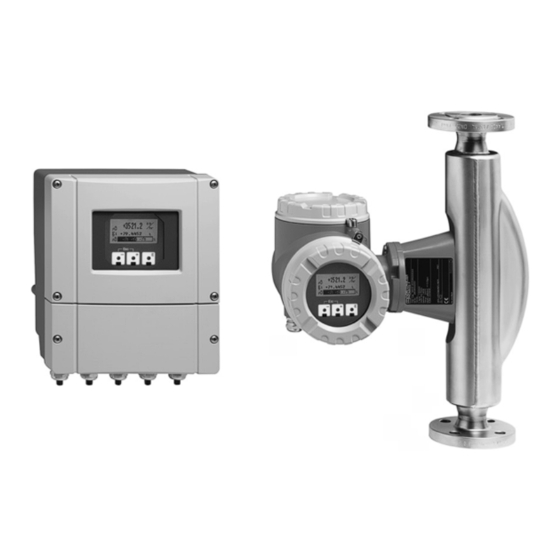

Proline Promass 84F
Coriolis flowmeter
Solutions
Your benefits
• Highest process safety – immune to fluctuating and harsh
environments
• Fewer process measuring points – multivariable
measurement (flow, density, temp)
• Space-saving installation – no in/outlet run needs
• Quality – designed for custody transfer; featuring worldwide
recognized metrological approvals
• Flexible data transfer options – numerous communication
types
• Automatic recovery of data for servicing
Services
