Four Intelligent PDUs With Three-Phase UPS (NA/JPN and INTL)

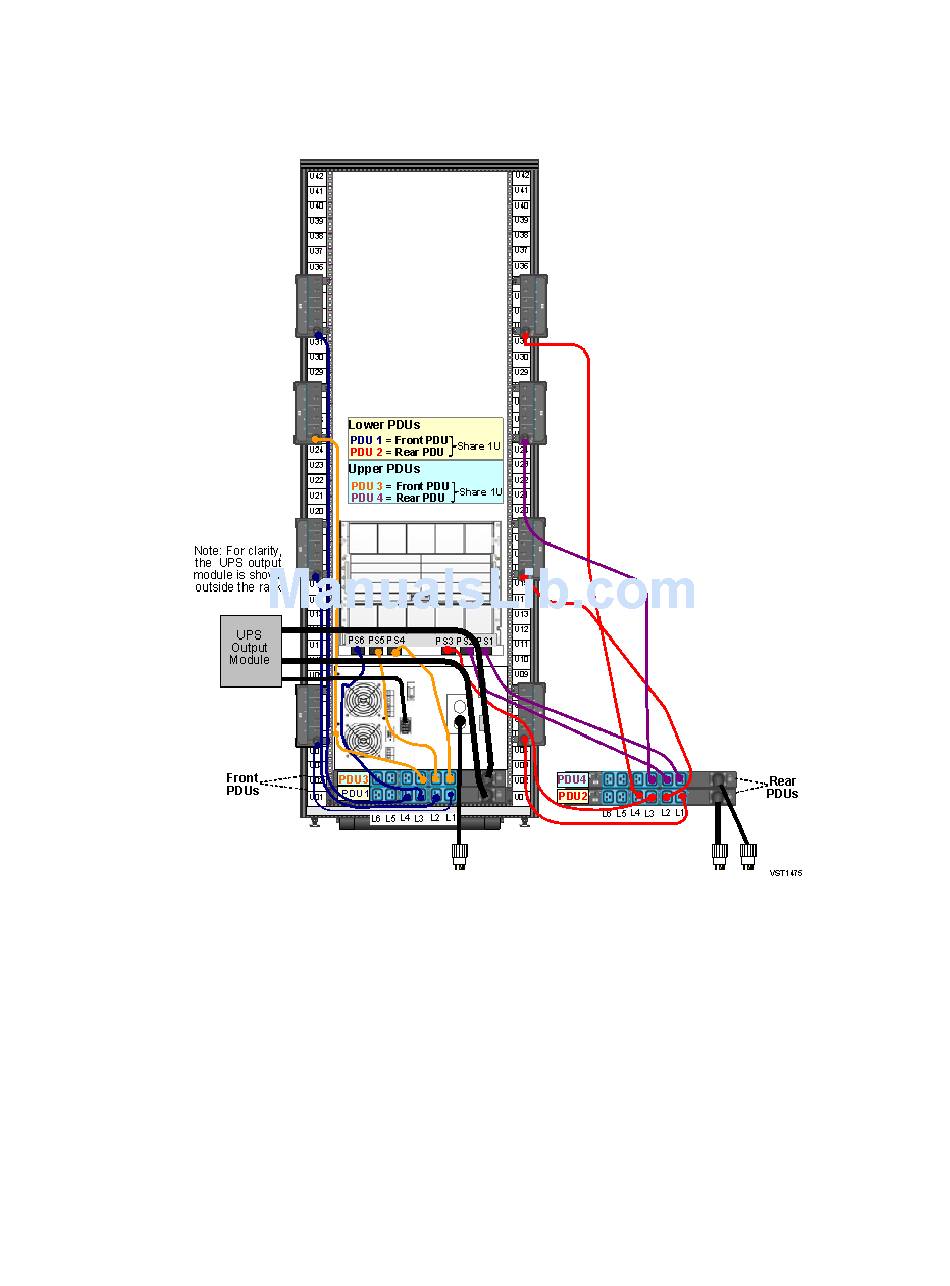

This illustration shows the power configuration for four iPDUs and a three-phase UPS in a rack.
For detailed power specifications and connector types, see
Figure 4 Four iPDUs With Three-Phase UPS — (NA/JPN and INTL)
28 NS7 System Installation Specifications
"Power Specifications" (page 45).
