Tickets With Black Mark - Intermec easycoder f2 Installation & Operation Manual

Appendix 2 Media Specifi cations
Paper, cont'd.

Tickets with Black Mark

94

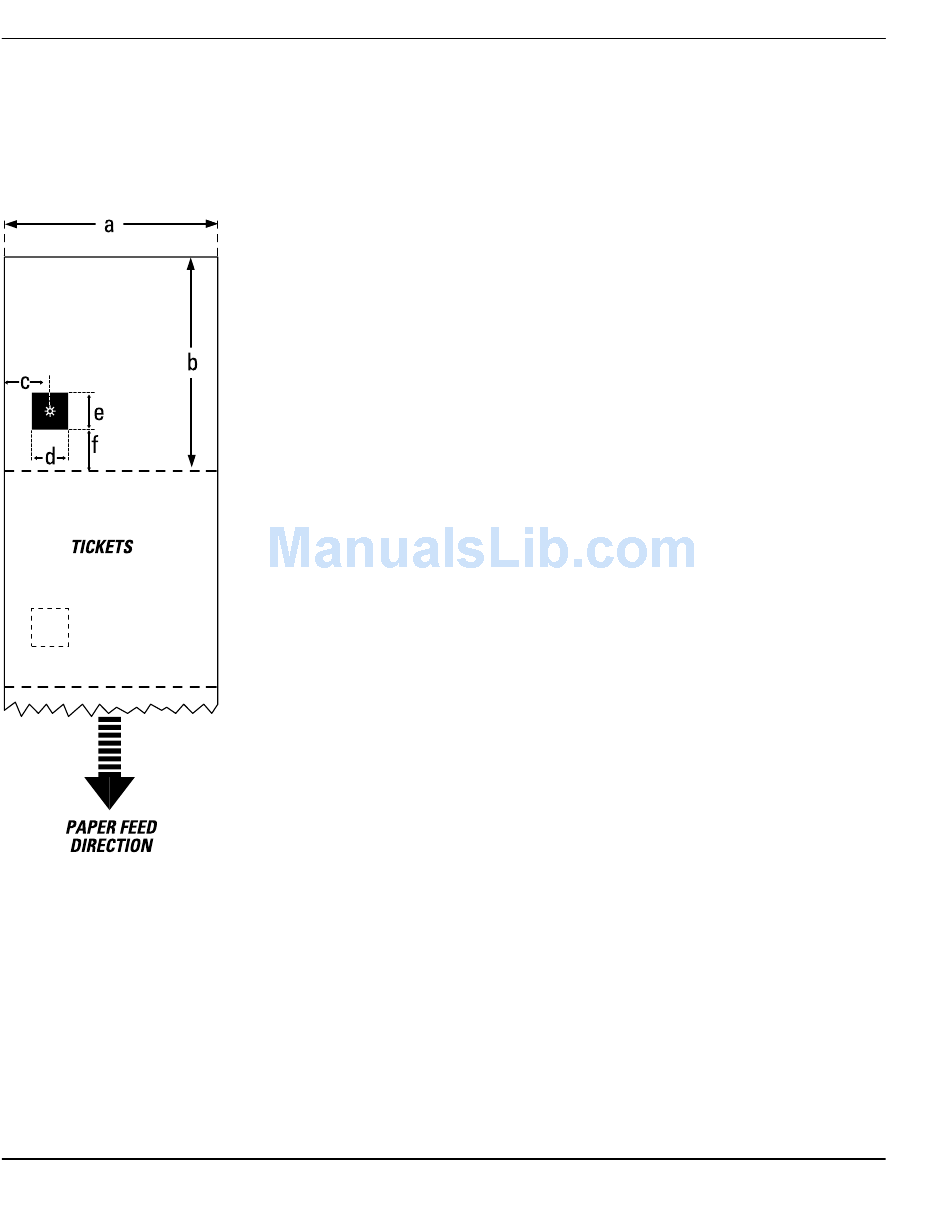

⇐ a ⇒ Web Width:
Maximum:
Minimum (standard):
Minimum (Quick-Load):
⇐ b ⇒ Copy Length:
Minimum:
Maximum:
⇐ c ⇒ LSS Detection Position:
Five fi xed positions (distance from inner edge of paper):
3 mm (.118")
8 mm (.315")
12 mm (.472")
16 mm (.639")
20 mm (.787")
⇐ d ⇒ Black Mark Width:
The detectable width of the black mark should preferably be at least
5.0 mm (0.2") on either side of the LSS detection point.
⇐ e ⇒ Black Mark Length:
Maximum:
Common:
Minimum:
⇐ f ⇒ Black Mark Y-Position:
It is recommended to place the black mark as close to the front
edge of the ticket as possible and use a negative Stop Adjust
value to control the paper feed, so the tickets can be properly
torn or cut off.
Media Type Setup:
• Ticket (w mark)
Important! Preprint that may interfere with the detection of the
black mark should be avoided on the back of the paper. However,
the LBLCOND statement allows the sensor to be temporarily
disabled during a specifi ed amount of paper feed in order to avoid
unintentional detection, see Intermec Fingerprint manuals.
The black mark should be non-refl ective carbon black on a whitish
background.
Do not allow any perforations to break the edge of the web, as this
may cause the web to split, resulting in a paper jam.
Intermec EasyCoder F2 – Installation & Operation Ed. 2
60.0 mm (2.36")
25.0 mm (1.00")
40.0 mm (1.57")
20.0 mm (0.8")
depends on DRAM size
21.3 mm (0.83")
12.5 mm (0.5")
5.0 mm (0.2")
