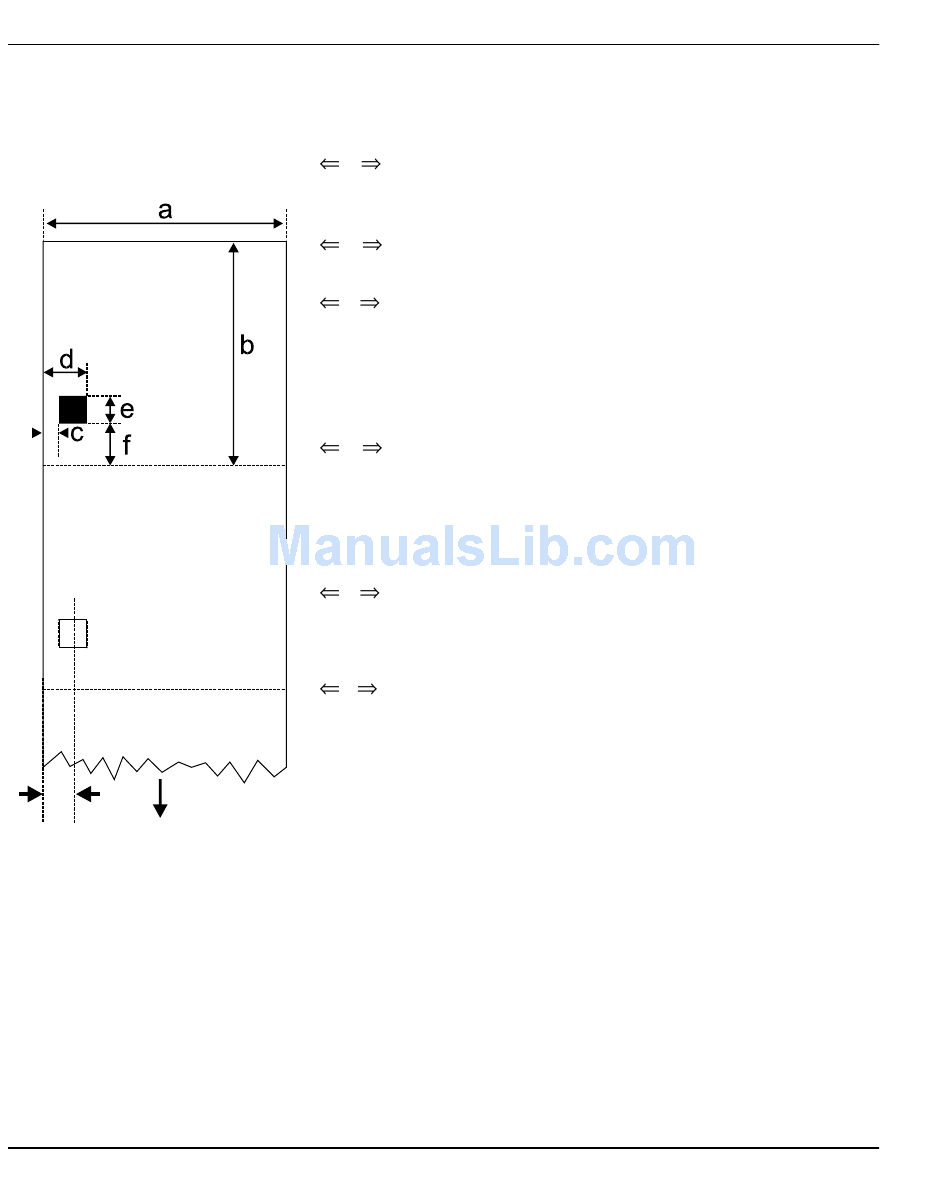

Tickets with Black Mark

Tickets with
Black Marks
Label Stop
Sensor
position
Feed
12 mm
(0.47 inches) Direction
50
a Media Width:
Maximum:
Minimum:
b Copy Length:
Minimum:
c Black Mark Offset:
The distance between the inner edge of the media and the inner
edge of the black mark must be:
Maximum:
Minimum:
d Black Mark End:
The distance between the inner edge of the media and the outer
edge of the black mark must be:
Maximum:
Minimum:
e Black Mark Height:
Common:
Minimum:
f Black Mark Y-Position:
The black mark should be as close to the front edge of the ticket as
possible. Use a negative stopadjust value to control the media feed,
so that the tickets can be properly torn or cut off.
The black mark should be non-refl ective carbon black on a whitish
background.
Media type setup:
• Ticket (w mark)
Do not allow any perforations to break the edge of the media, as this
may cause the media to split and jam the printer.
