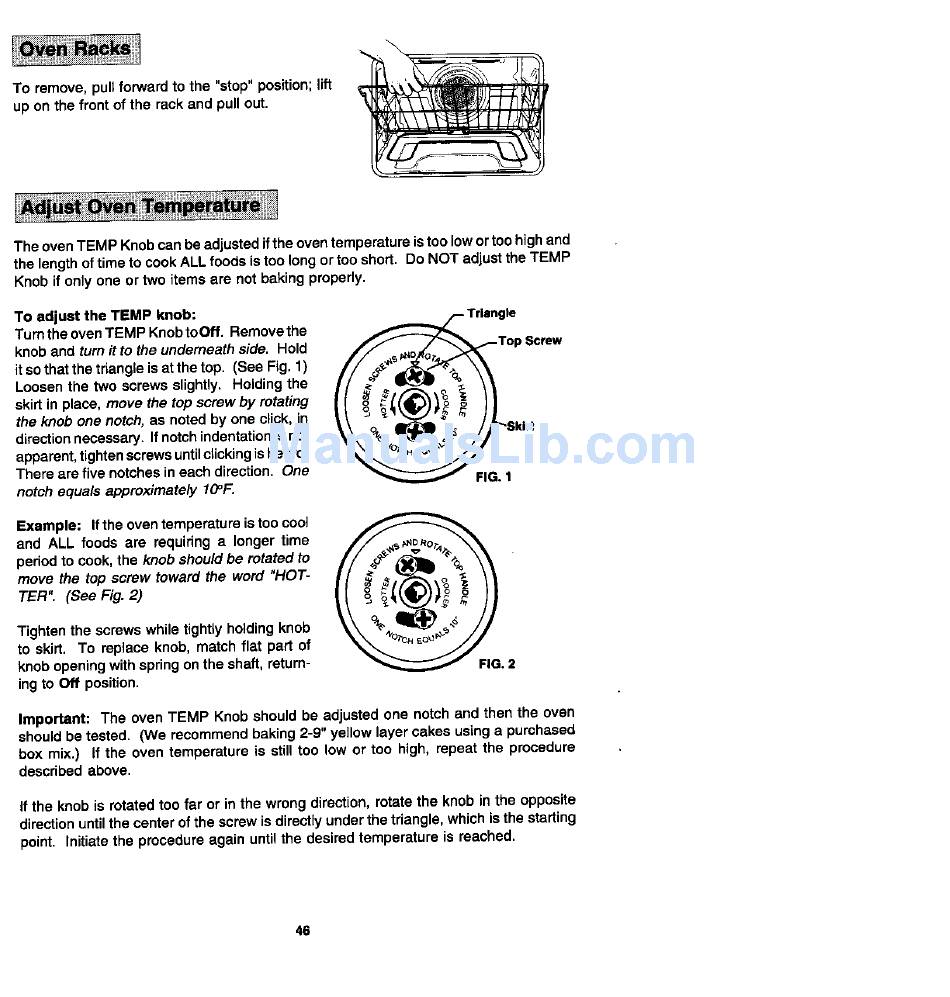

Oven Racks; Adjust Oven Temperature; To Adjust The Temp Knob - Jenn-Air SVD8310S Use And Care Manual

To remove, puli forward to the "stop" position; liff _.,__
uponthefrontoftherackandpullout.
_ _i __
The oven TEMP Knob can be adjusted if the oven temperature is too low or too high and
the length of time to cook ALL foods is too long or too short. Do NOT adjust the TEMP
Knob if only one or two items are not baking properly.
To adjust the TEMP knob: /-Triangle
Turn the oven TEMP Knob toOff, Remove the
knob and turo itto the undemeath side. Ro,d _o_ _ ,__ T°p scr"
it so that the triangle is at the top. (See Fig. 1)
Loosen the two screws slightly. Holding the
skirt in place, move the top screw by rotating
the knob one notch, as noted by one click, in
directionnecessary, lfnotchindentationisnot __Sklrl
apparent, tighten screws untilclicking is heard.
There are five notches in each direction. One _ FIG. t
notch equals approximately IO°F.
Example: If the oven temperature is too cool '_,. ,_.._,;_(_ _, q'_ o /
and ALL foods are requiring a longer time
period to cook, the knob should be rotated to _d--//_e,_--_.
movethetopscrewtowardtheword"HOT-TER,. (See Fig. 2) 1( _o_ _
Tighten the screws while tightly holding knob _\ o_ 6.
to skirt. To replace knob, match flat part of _._ _,c,_o_.
knob opening with spring on the shaft, return- _ FIG. 2
Jngto Off position.
Important: The oven TEMP Knob should be adjusted one notch and then the oven
should be tested. (We recommend baking 2-9" yellow layer cakes using a purchased
box mix.) If the oven temperature is still too low or too high, repeat the procedure
described above.
If the knob is rotated too far or in the wrong direction, rotate the knob in the opposite
direction until the center of the screw is directly under the triangle, which is the starting
point. Initiate the procedure again until the desired temperature is reached.
46
