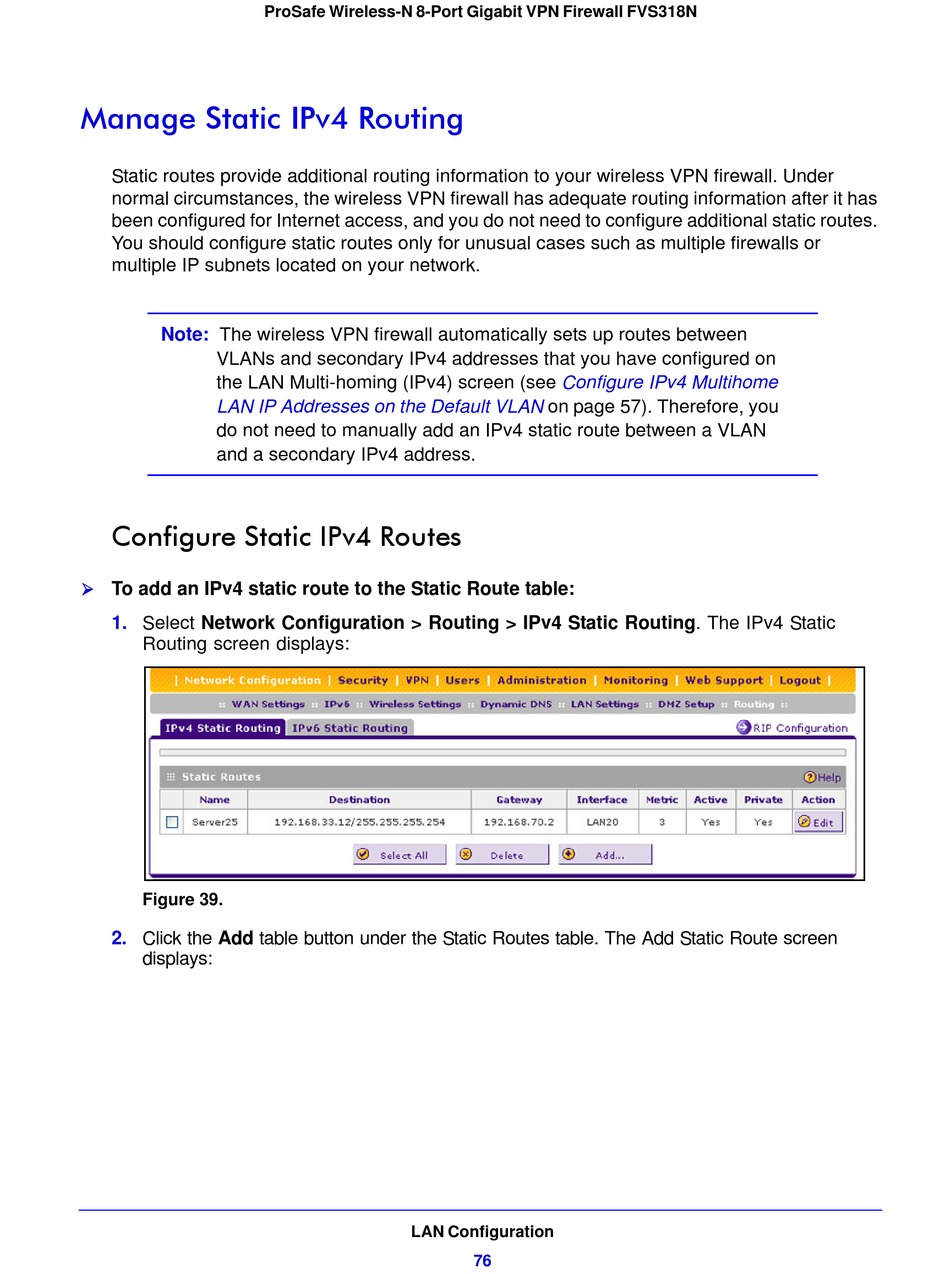

Manage Static IPv4 Routing

Static routes provide additional routing information to your wireless VPN firewall. Under
normal circumstances, the wireless VPN firewall has adequate routing information after it has
been configured for Internet access, and you do not need to configure additional static routes.
You should configure static routes only for unusual cases such as multiple firewalls or
multiple IP subnets located on your network.
Note: The wireless VPN firewall automatically sets up routes between
VLANs and secondary IPv4 addresses that you have configured on
the LAN Multi-homing (IPv4) screen (see
LAN IP Addresses on the Default VLAN
do not need to manually add an IPv4 static route between a VLAN
and a secondary IPv4 address.

Configure Static IPv4 Routes


To add an IPv4 static route to the Static Route table:
1. Select Network Configuration > Routing > IPv4 Static Routing. The IPv4 Static
Routing screen displays:
Figure 39.
2. Click the Add table button under the Static Routes table. The Add Static Route screen
displays:
ProSafe Wireless-N 8-Port Gigabit VPN Firewall FVS318N
LAN Configuration
Configure IPv4 Multihome
on page 57). Therefore, you
76
