more IP addresses and/or service ports into different specified services. In other words, the
NAT function can be achieved by using port mapping methods.

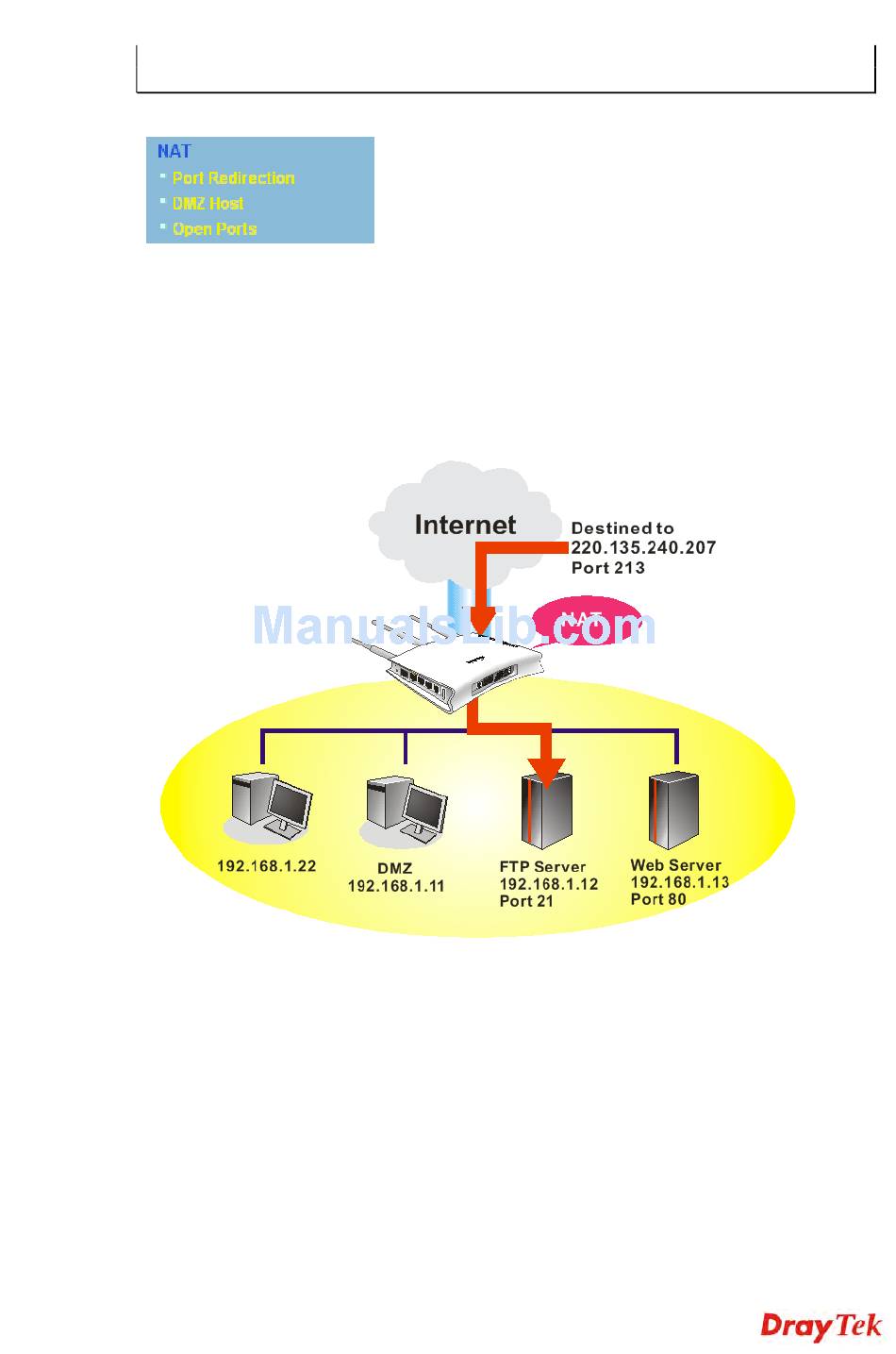

Below shows the menu items for NAT.
3 . 3 . 1 P o r t R e d i r e c t i o n
3 . 3 . 1 P o r t R e d i r e c t i o n
Port Redirection is usually set up for server related service inside the local network (LAN),
such as web servers, FTP servers, E-mail servers etc. Most of the case, you need a public IP
address for each server and this public IP address/domain name are recognized by all users.
Since the server is actually located inside the LAN, the network well protected by NAT of the
router, and identified by its private IP address/port, the goal of Port Redirection function is to
forward all access request with public IP address from external users to the mapping private IP
address/port of the server.
The port redirection can only apply to incoming traffic.
To use this function, please go to NAT page and choose Port Redirection web page. The
Port Redirection Table provides 20 port-mapping entries for the internal hosts.
Vigor2110 Series User's Guide 31
