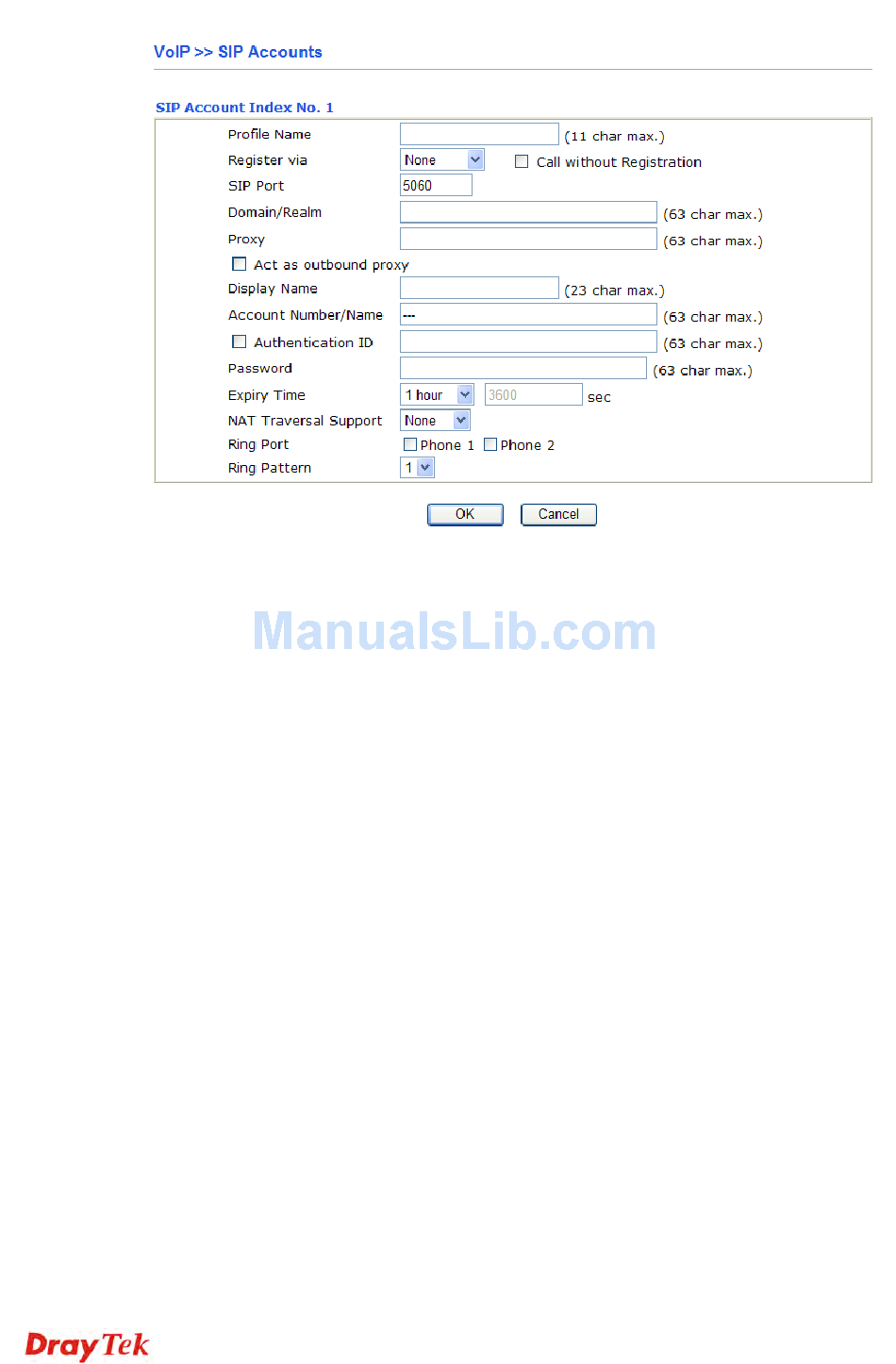

Profile Name
Register via
SIP Port
Domain/Realm
Proxy
Act as Outbound Proxy
Display Name
Account Number/Name
Authentication ID
Password
Assign a name for this profile for identifying. You can type
similar name with the domain. For example, if the domain name
is draytel.org, then you might set draytel-1 in this field.
If you want to make VoIP call without register personal
information, please choose None and check the box to achieve
the goal. Some SIP server allows user to use VoIP function
without registering. For such server, please check the box of
Call without Registration. Choosing Auto is recommended.
The system will select a proper way for your VoIP call.
Set the port number for sending/receiving SIP message for
building a session. The default value is 5060. Your peer must
set the same value in his/her Registrar.
Set the domain name or IP address of the SIP Registrar server.
Set domain name or IP address of SIP proxy server. By the time
you can type :port number after the domain name to specify
that port as the destination of data transmission (e.g.,
nat.draytel.org:5065)
Check this box to make the proxy acting as outbound proxy.
The caller-ID that you want to be displayed on your friend's
screen.
Enter your account name of SIP Address, e.g. every text before
@.
Check the box to invoke this function and enter the name or
number used for SIP Authorization with SIP Registrar. If this
setting value is the same as Account Name, it is not necessary
for you to check the box and set any value in this field.
The password provided to you when you registered with a SIP
service.
