For Vigor2110; For Vigor2110N - Draytek Vigor 2110 Series User Manual

1 . 2 . 2 F o r V i g o r 2
1 . 2 . 2 F o r V i g o r 2
1 1 0 n
1 1 0 n

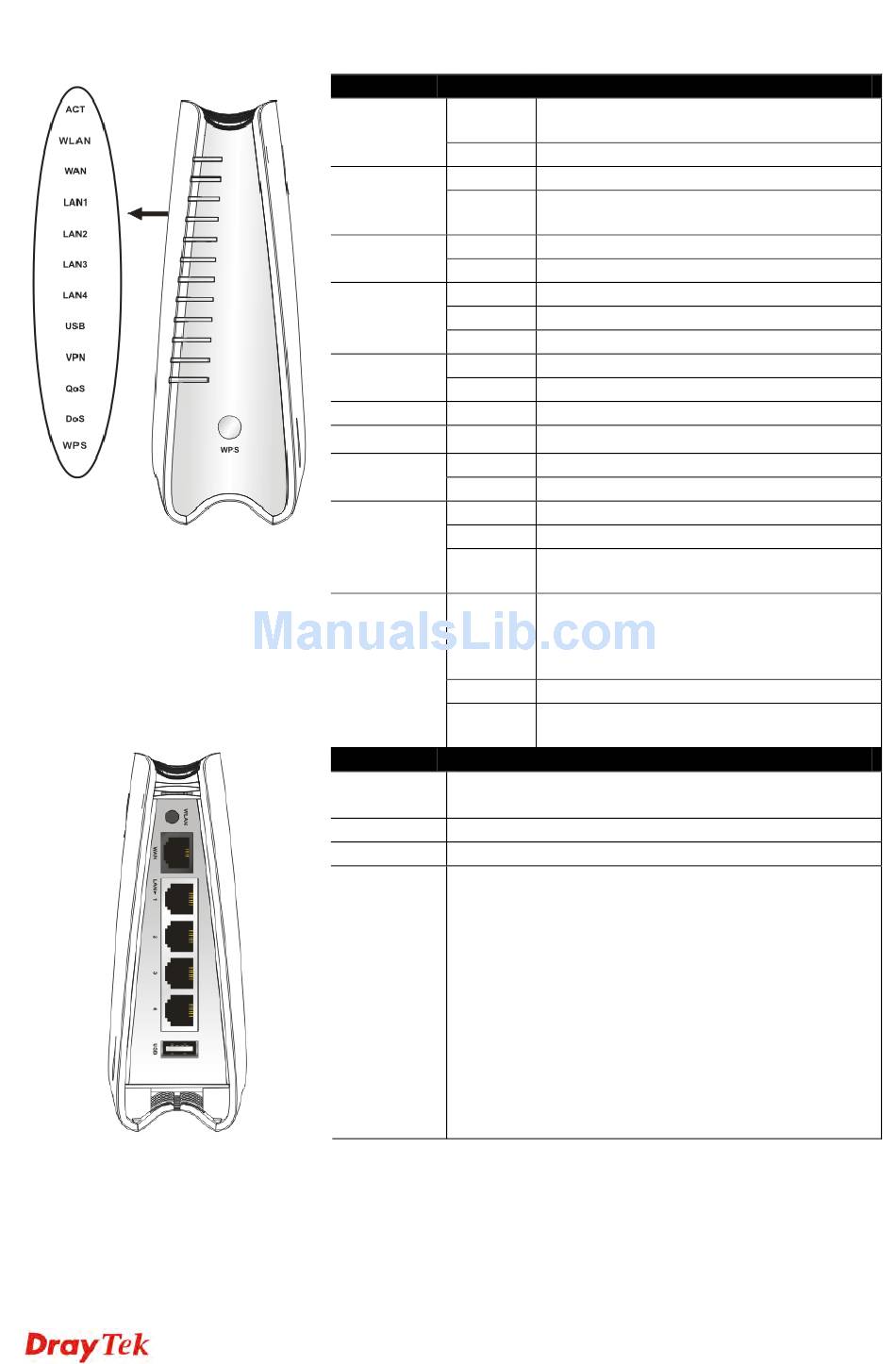

LED
ACT
(Activity)
WLAN
WAN
LAN 1/2/3/4
USB
VPN
QoS
DoS
WPS
WPS Button
Interface
WLAN
WAN
LAN (1-4)
USB
Status Explanation
Blinking The router is powered on and running
normally.
Off The router is powered off.
On Wireless access point is ready.
Blinking It will blink while wireless traffic goes
through.
On The WAN port is connected.
Blinking It will blink while transmitting data.
On The port is connected.
Off The port is disconnected.
Blinking The data is transmitting.
On A USB device is connected and active.
Blinking The data is transmitting.
On The VPN tunnel is active.
On The QoS function is active.
On The DoS/DDoS function is active.
Blinking It will blink while detecting an attack.
On The WPS is on.
Off The WPS is off.
Blinking Waiting for wireless client sending requests
for connection about two minutes.
On Press this button for 2 seconds to wait for
client device making network connection
through WPS. When the LED lights up, the
WPS will be on.
Off The WPS is off.
Blinking Waiting for wireless client sending requests
for connection about two minutes.
Description
Press the button once to enable (WLAN LED on) or
disable (WLAN LED off) wireless connection.
Connector for accessing the Internet.
Connecters for local networked devices.
Connecter for USB storage (Pen Driver Mobile/HD) or
printer.
4 Vigor2110 Series User's Guide
