4
.
2
.
3
V
L
A
N
4
.
2
.
3
V
L
A
N

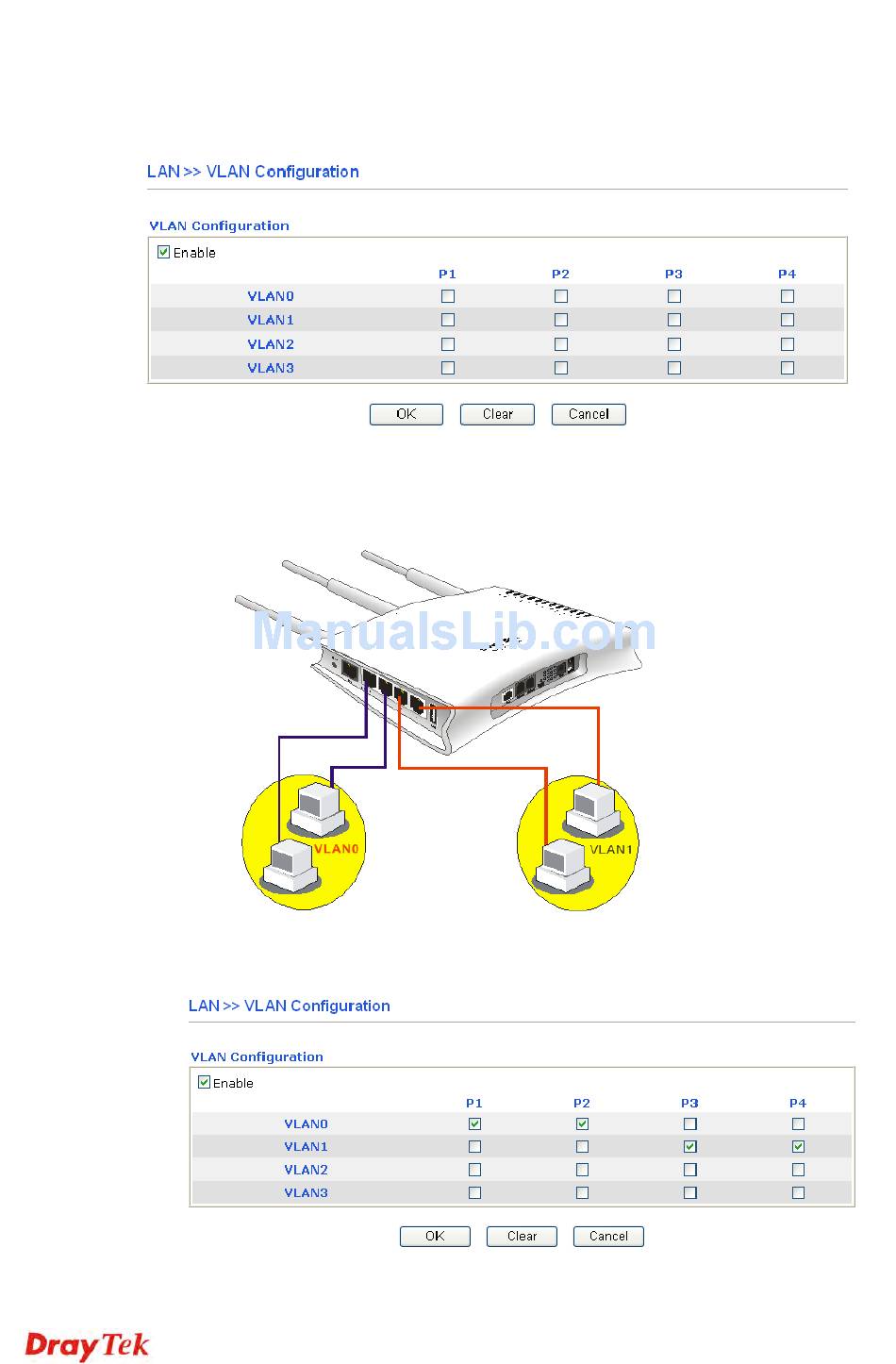

Virtual LAN function provides you a very convenient way to manage hosts by grouping them
based on the physical port. Go to LAN page and select VLAN. The following page will
appear. Click Enable to invoke VLAN function.
To add or remove a VLAN, please refer to the following example.
1.
If, VLAN 0 is consisted of hosts linked to P1 and P2 and VLAN 1 is consisted of hosts
linked to P3 and P4.
2.
After checking the box to enable VLAN function, you will check the table according to
the needs as shown below.
To remove VLAN, uncheck the needed box and click OK to save the results.
82
Vigor2110 Series User's Guide
