5-15 CHASSIS

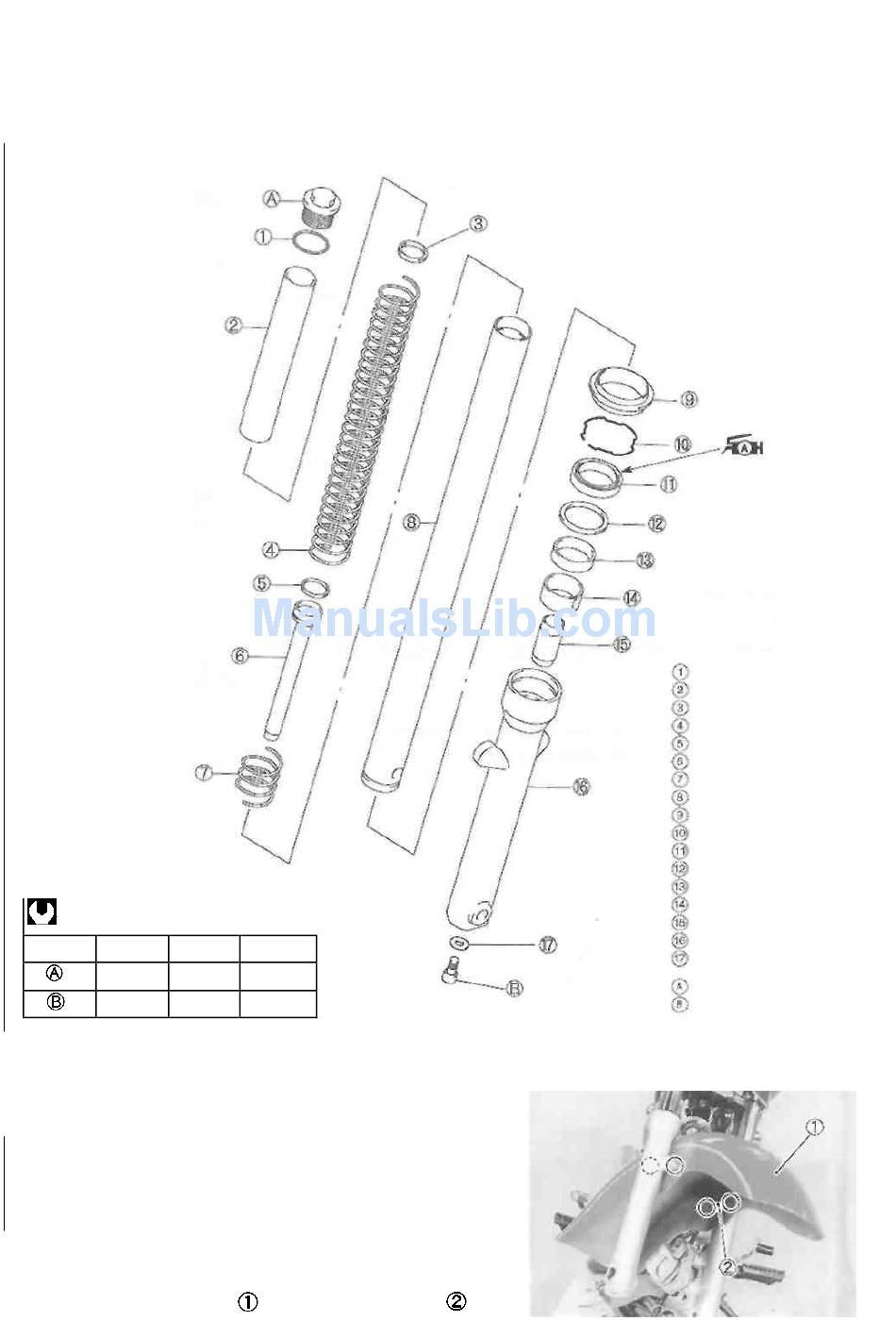

FRONT FORK

CONSTRUCTION

ITEM N-m
23
20

REMOVAL AND DISASSEMBLY

• Remove the front wheel. (See p. 5-3.)
• Remove the brake caliper. (See p. 5-9. )
A CAUTION
Secure the brake caliper to the frame with a string etc.,
taking care not to bend the brake hose.
• Remove the speedometer cable guide from the left fork
leg.
• Remove the front fender and brake hose guide
kg-m Ib-ft
2.3 16.5
2.0 14.5
O-ring
Spacer
Washer
Front fork spring
Damper rod ring
Damper rod
Rebound spring
Inner tube
Dust seal
Oil seal stopper ring
Oil seal
Washer
Slide metal
Guide bushing
Oil lock piece
Outer tube
Gasket
Front fork cap bolt
Damper rod bolt
