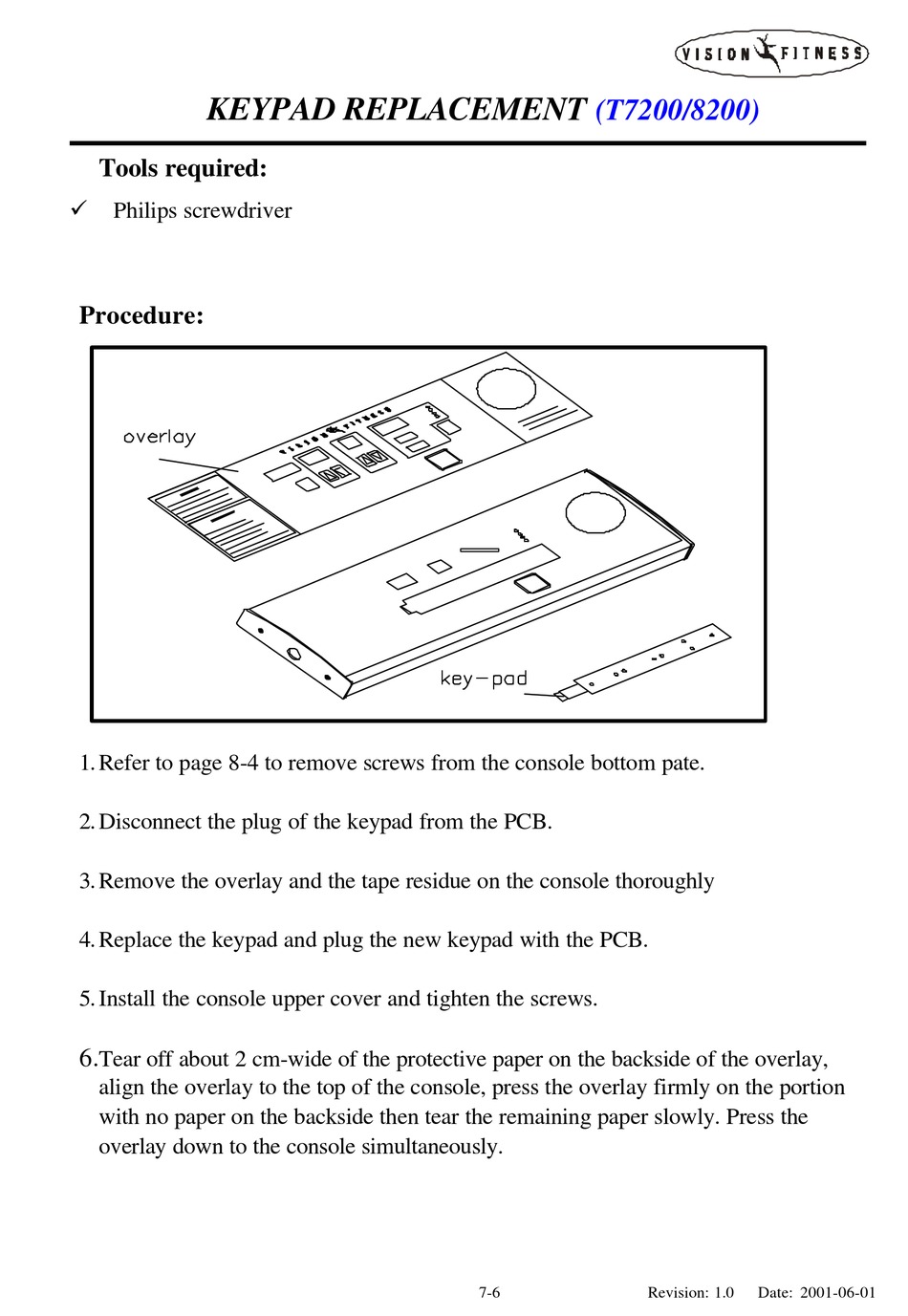

KEYPAD REPLACEMENT
Tools required:
ü
Philips screwdriver
Procedure:
1. Refer to page 8-4 to remove screws from the console bottom pate.
2. Disconnect the plug of the keypad from the PCB.
3. Remove the overlay and the tape residue on the console thoroughly
4. Replace the keypad and plug the new keypad with the PCB.
5. Install the console upper cover and tighten the screws.
6.
Tear off about 2 cm-wide of the protective paper on the backside of the overlay,
align the overlay to the top of the console, press the overlay firmly on the portion
with no paper on the backside then tear the remaining paper slowly. Press the
overlay down to the console simultaneously.
(T7200/8200)
7-6 Revision: 1.0 Date: 2001-06-01
