4. DISASSEMBLY AND ASSEMBLY PROCEDURE
OF MAIN PARTS

4.1 Outdoor Unit

R(Y)24PEV1K; R(Y)30PEV1K; R(Y)36PEV1K; R(Y)42PEV1K; R(Y)48TPEV1K
Disassembly and Assembly of external casing
Remark : Make sure that the power supply is cut off before disassemble of the external casing.
Step
1.Disassembly of the
top cover
2. Disassembly of
rear grill
3. Disassembly of front
grill
4. Disassembly of panel
(external casing)
5. Disassembly of right
(back) panel
MAINTENANCE

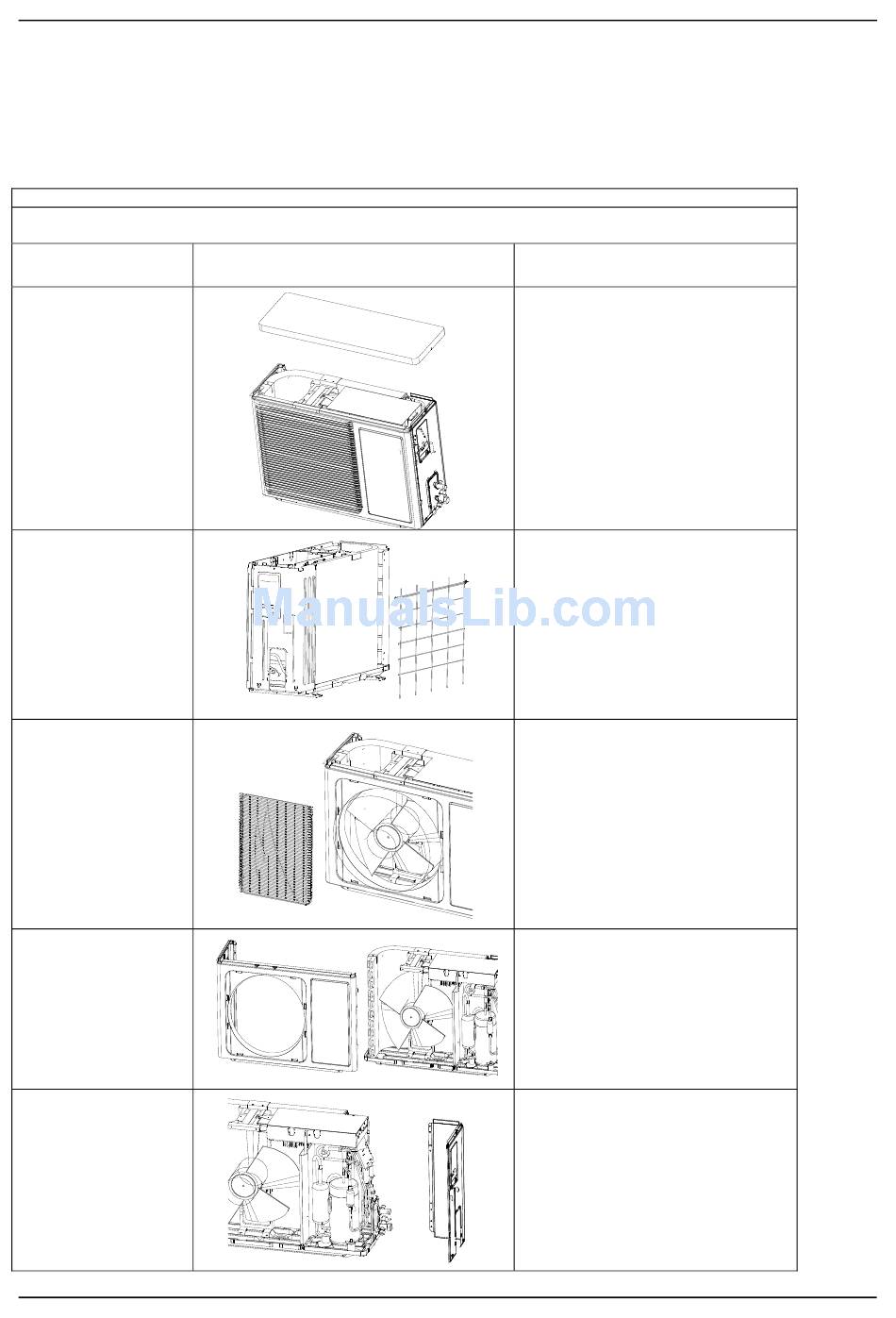

Illustration
Handling Instruction
●Unscrew retaining srcews on top
cover
●Remove it from the unit.
● Loose retaining screw on the rear
grill with screwdriver.
●Remove rear grill from the unit.
●Disassemble the screws of the front
grill with screwdriver
● Disassemble and remove the front
grill from the panel (external casing).
●Disassemble the retaining screws on
the panel (external casing);
●Remove the panel (external casing)
from the unit.
●Some models (R(Y)30PEV1K;
R(Y)36PEV1K; R(Y)42PEV1K;
R(Y)48TPEV1K)require disassembling
the front panel outside the external
casing first before removing it.
●Disassemble the screws on the right
(back) panel with screwdriver.
●Remove the right (back) panel from
the unit.
