CMA Dishmachines GL-C Quick Setup Manual

GL-C/220V
GW-100/110V
Carousel
Glasswasher
Quick Setup
Instructions
WARNING: Electrical and plumbing
connections need to be made by a
licensed service person and comply
with all Federal, State and Local
Health, Electrical, Plumbing and
Safety codes.

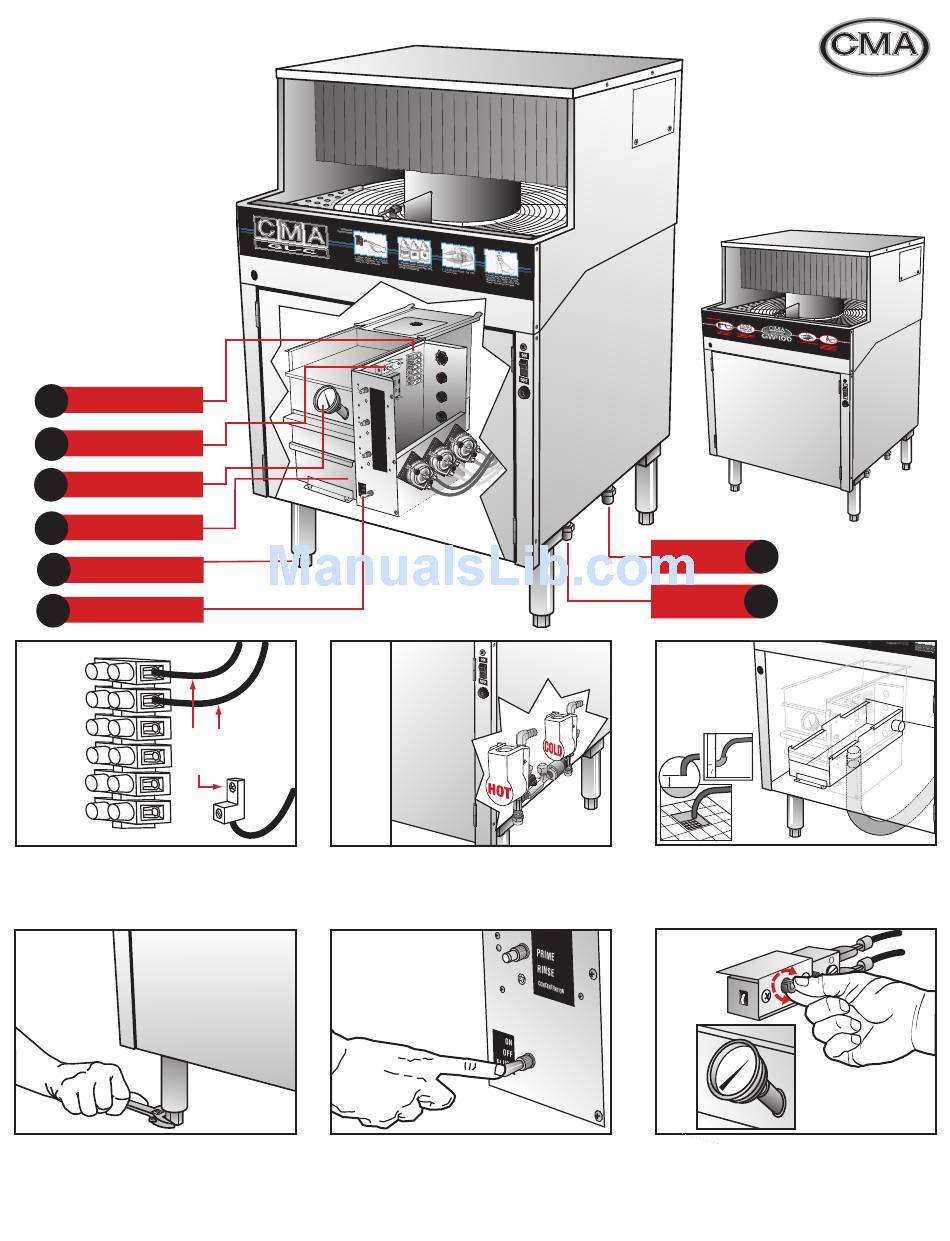

1
POWER BLOCK
6
HEATER THERMOSTAT
6
THERMOMETER
3
DRAIN CONNECTION
4
LEVELING LEGS
5
POWER SWITCH
STEP
1
L1
GROUND
Connect L1 and L2 (N) leads to the power block
and one ground.
STEP
4
Level dishmachine by adjusting leveling legs.
Dishmachine must be level front and back to
ensure proper performance.
PR IM E
DE TE RG
EN T
CON CEN
TRA TIO
N
PR IM E
SA NI TI
ZE R
CON CEN
TRA TIO
N
PR IME
RIN SE
CON CEN
TRA TION
STEP
2
L2 (N)
Connect water lines (hot 140F/160F) and (cold
75F) to water solenoid valves.
STEP
5
Flip power "on-off/flush" switch to "ON" position.
Wash tank will automatically fill.
GL-C FRONT VIEW
800-854-6417
GW-100 FRONT VIEW
COLD WATER
2
INLET
HOT WATER 2
INLET
STEP
3
WALL
DRAIN
1"AIR GAP
FLOOR
DRAIN
Connect the drain hose to the FLOOR DRAIN. If
floor drain is not available connect to the wall. Floor
drain must have a (1 inch) air gap between the drain
hose and the floor drain.
STEP
6
140
Adjust heater thermostat to 140F.
