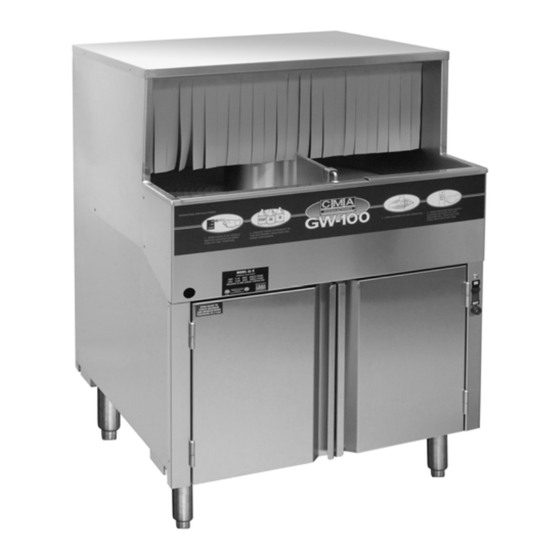

MODEL GW-100
PARTS MANUAL
REV.1.00
C M A D I S H M A C H I N E S
1 2 7 0 0 K N O T T A V E N U E
GARDEN GROVE, CALIFORNIA 92841
8 0 0 - 8 5 4 - 6 4 1 7
F A X 7 1 4 - 8 9 5 - 2 1 4 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GW-100 and is the answer not in the manual?

Questions and answers

Related Manuals for CMA Dishmachines GW-100

Summary of Contents for CMA Dishmachines GW-100

  • Page 1 Owner’s Manual Keep with machine for reference MODEL GW-100 PARTS MANUAL REV.1.00 C M A D I S H M A C H I N E S 1 2 7 0 0 K N O T T A V E N U E...

  • Page 2: Table Of Contents

    6.2.7. Sanitizer Plumbing Component Hardware ... 10 6.2.8. Vacuum Breaker and Hardware ... 11 6.2.9. GW-100 Wash Pump Assembly... 12 6.2.10 Conveyor Drive Assembly... 13 6.2.11 GW-100 Waste Collector Assy... 14 MODEL GW-100 Parts MANUAL Rev Rev.1.00 01/17/08 ABLE OF ONTENTS GW-100 ODEL ...

  • Page 3: Parts Manual

    All the parts included in this kit are unique to the GW-100 glasswasher (except those with *). MODEL GW-100 Parts MANUAL Rev Rev.1.00 01/17/08...

  • Page 4: Model Gw-100 Parts Manual Rev Rev.1.00 01/17/08

    GW-100 Face Trim 00812.47 Magnetic Door Catch 16302.65 GW-100 Front Pillar (Left Hand) 16306.00 GW-100 Left Door *Not shown. MODEL GW-100 Parts MANUAL Rev Rev.1.00 01/17/08 Parts Manual ITEM REQ’D 16306.50 GW-100 Right Door 00940.50 Screw, 10-32 x 3/8” 00941.00 10-32 X 5/8 Panhead Screw 00421.45...

  • Page 5: Model Gw-100 Parts Manual Rev Rev.1.00 01/17/08

    16505.00 Curtain Support 13703.47 GL-C Curtain 16505.10 Curtain Clamp 00927.00 Nut, 8-32 00911.50 Screw, 8-32 x 3/8” MODEL GW-100 Parts MANUAL Rev Rev.1.00 01/17/08 ITEM DESCRIPTION REQ’D 16451.00 Conveyor Hub 2” taller 14750.00 Conveyor Turntable 16350.50 GW-100 Tray- Left 16350.00 GW-100 Tray- Right 14750.10...

  • Page 6: Conveyor Shut-Off Rod Assembly

    6.2.3. Conveyor Shut-Off Rod Assembly MODEL GW-100 Parts MANUAL Rev Rev.1.00 01/17/08 00940.50 Truss Head Screw 10-32 x 3/8” 16320.00 GW-100 Shut-off Rod 16521.00 Activator 00935.00 Socket Set Screw, 1/4-20 x 1/4” 16514.30 Nut Plate 00472.47 Conveyor Shut Off Switch 00438.00...

  • Page 7: Control Box Assembly

    Ice Cube Relay 120V, 20A 00631.00 Ice Cube Relay 120V,12A 00821.21 Circuit Board Connector 00821.00 GL-C Transformer 00815.00 GL-C Peri Pump Complete MODEL GW-100 Parts MANUAL Rev Rev.1.00 01/17/08 ITEM DESCRIPTION REQ’D 00818.00 GL-C Peri Pump Cover 16515.00 GL-C Peri Pump Panel 00816.00 GL-C Peri Pump Gear Motor 03470.47...

  • Page 8: Soap Tank Assembly

    1/2 Cu Ref Tubing (Per Foot) 16541.00 Detergent tank 16544.00 Detergent Tank Screen 16543.00 Detergent Tank Rear Cover 16542.00 Detergent Tank Lid MODEL GW-100 Parts MANUAL Rev Rev.1.00 01/17/08 ITEM DESCRIPTION DESCRIPTION REQ’D 13463.00 Liquid Level Switch 16545.50 Overflow Drain Tube 00120.00...

  • Page 9: Water Inlet Plumbing

    3/8" Solenoid Valve Coil 40010.00 GL-C 3/8” MPT Tee 40017.00 GL-C 1/2 x 3/8” FPT Reducer 00715.47 GL-C 3/8" Check Valve MODEL GW-100 Parts MANUAL Rev Rev.1.00 01/17/08 Parts Manual ITEM REQ’D 41014.49 GL-C 3/8" Ball Valve 40012.10 GL-C 1/2 Barb x 3/8” MIP Elbow 03101.47...

  • Page 10: Sanitizer Plumbing Component Hardware

    Chemical Tubing Blue 00425.54 Chemical Tubing White 16526.00 Gauge Bracket 00924.00 Lock Washer, 1/4 00912.00 Nut, 1/4-20 MODEL GW-100 Parts MANUAL Rev Rev.1.00 01/17/08 Parts Manual ITEM REQ’D 03106.45 1/2" I.D. Braided Hose 03106.47 3/8" I.D. Braided Hose 00434.49 1/2 x 1/2 x 3/8" Tee 03101.47...

  • Page 11: Vacuum Breaker And Hardware

    6-32 x 1/4” SS Panhead Screw 00739.50 Vacuum Breaker Cap 03624.25 1/2” Vacuum Breaker Bonnet 03623.00 1/2” Vacuum Breaker Repair Kit MODEL GW-100 Parts MANUAL Rev Rev.1.00 01/17/08 ITEM DESCRIPTION REQ’D 40014.00 1/2" MPT x 1/2" Hose Barb 03101.47 7/16" Clamp 03106.45...

  • Page 12: Gw-100 Wash Pump Assembly

    Hose Clamp #16 03108.60 Transfer Hose 1" Reinforced 00914.10 1/4-20 X 5/8 Hexhead Bolt 00924.50 1/4" SS Washer x 3/4" OD MODEL GW-100 Parts MANUAL Rev Rev.1.00 01/17/08 ITEM DESCRIPTION REQ’D 16370.75 GW-100 Wash Motor Base 00911.50 8-32 X 3/8 Pan Head Screw 00201.49...

  • Page 13: Conveyor Drive Assembly

    DESCRIPTION REQ’D 14751.00 Drive Ge 00104.83 VA Drain Motor Shaft Gasket 16570.50 Drive Motor Housing 00811.47 Extension Spring MODEL GW-100 Parts MANUAL Rev Rev.1.00 01/17/08 ITEM DESCRIPTION REQ’D 00438.00 Snap Bu shing Universal 8 00940.50 Screw, 10-32 x 3/8” 00810.49 Drive Motor 16570.60...

  • Page 14: Gw-100 Waste Collector Assy

    .2.11 GW-100 Waste Collector Assy. ITEM REQ’D MODEL GW-100 Parts MANUAL Rev Rev.1.00 01/17/08 DESCRIPTION 16562.00 GL-C Waste Collector Screen 16560.00 GL-C Waste Collector Tray 06231.56 GW-100 Label 03106.51 Clear Vinyl Tubing 1/2” ID x 3/4”OD 00899.01 Cleaning Drill not shown 00899.02...
