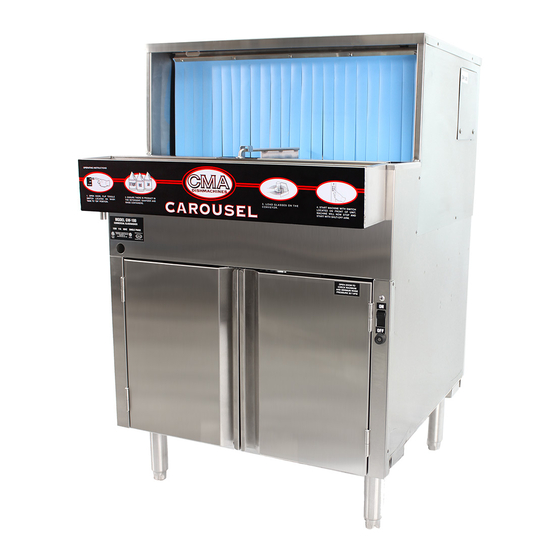

CMA Dishmachines GW-100 Owner's Manual

Cma gw-100: owners manual
Hide thumbs Also See for GW-100:
Table of Contents

Advertisement

Quick Links

Owner's Manual
Keep with machine for reference
MODEL GW-100
INSTALLATION & OPERATION
REV.1.00
C M A D I S H M A C H I N E S
1 2 7 0 0 K N O T T A V E N U E
GARDEN GROVE, CALIFORNIA 92841
8 0 0 - 8 5 4 - 6 4 1 7
F A X 7 1 4 - 8 9 5 - 2 1 4 1
www.cmadishmachines.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GW-100 and is the answer not in the manual?

Questions and answers

Related Manuals for CMA Dishmachines GW-100

Summary of Contents for CMA Dishmachines GW-100

  • Page 1 Owner’s Manual Keep with machine for reference MODEL GW-100 INSTALLATION & OPERATION REV.1.00 C M A D I S H M A C H I N E S 1 2 7 0 0 K N O T T A V E N U E...

  • Page 2: Table Of Contents

    PERATION NSTRUCTIONS 4.2.1. Proper Chemical Dosage ... 5 4.3. LEANING NSTRUCTIONS 4.3.1. Highly Recommended Daily Cleaning Instructions... 6 4.3.2. Weekly Cleaning Instructions ... 6 5. TROUBLESHOOTING...7 ELECTRICAL DIAGRAM ...9 ABLE OF ONTENTS GW-100 ODEL ... 5 ... 5 ... 6...

  • Page 3: Model Gw-100

    Place it in position in soap tank. E. Check that the screen in the detergent tank is in position. F. Check that the drain screen is in position. 4. Important: Read all instructions completely. MODEL GW-100 SERVICE & PARTS MANUAL Rev. 1.00 01/17/08 Receiving Page...

  • Page 4: Specifications

    HEIGHT MAX CLEARANCE FOR GLASSES ELECTRICAL TANK HEATER (Not Booster Heater) WASH PUMP MOTOR SHIPPING WEIGHT GW-100 (Approximate) MODEL GW-100 SERVICE & PARTS MANUAL Rev. 1.00 01/17/08 Specifications 3 GAL. 11.35 L. 12 GAL. 45.42 L. 168 GAL. 636 L.

  • Page 5: Installation

    1. Connect a 1-1/2” PVC drain line to the bottom of the scrap tank. (note: machine is gravity drain) *Electrical and plumbing connections must be made by a qualified person who will comply with all available Federal, State, and Local Health, Electrical, Plumbing and Safety codes. MODEL GW-100 SERVICE & PARTS MANUAL Rev. 1.00 01/17/08 Operation Page...

  • Page 6: Filling Of The Wash Tank

    • The quantity of product can be controlled at the sani circuit board set screw. Note: Use chlorine test papers to verify and monitor the 50ppm chlorine level MODEL GW-100 SERVICE & PARTS MANUAL Rev. 1.00 01/17/08 Operation Page...

  • Page 7: Cleaning Instructions

    4.3. Cleaning Instructions 4.3.1. Highly Recommended Daily Cleaning Instructions Remove optional GW-100 drain tray & waste collector from the front of your glasswasher and clean thoroughly. Turn power switch off behind front service door. Remove all trays, screens and curtains. Wash, rinse them thoroughly and allow to dry.

  • Page 8: Troubleshooting

    Pump motor or circuit board defective Soap tank continues to fill Leaking solenoid valve with water with power off diaphragm. MODEL GW-100 SERVICE & PARTS MANUAL Rev. 1.00 01/17/08 Parts Manual SOLUTION Replace Turn thermostat up Replace Remove and replace Must provide 140°F...
  • Page 9 Spray arms not locked in place conveyor entrance Spray arms plugged Splash curtain not in position Machine in operation without any glasses on conveyor MODEL GW-100 SERVICE & PARTS MANUAL Rev. 1.00 01/17/08 SOLUTION Replace Clean Clean Clear obstruction, clean machine...

  • Page 10: Model Gw-

    P R I M E R P R I M E R D E T E R G E N T S A N I R I N S E Page MODEL GW-100 SERVICE & PARTS MANUAL Rev. 1.00 01/17/08...
