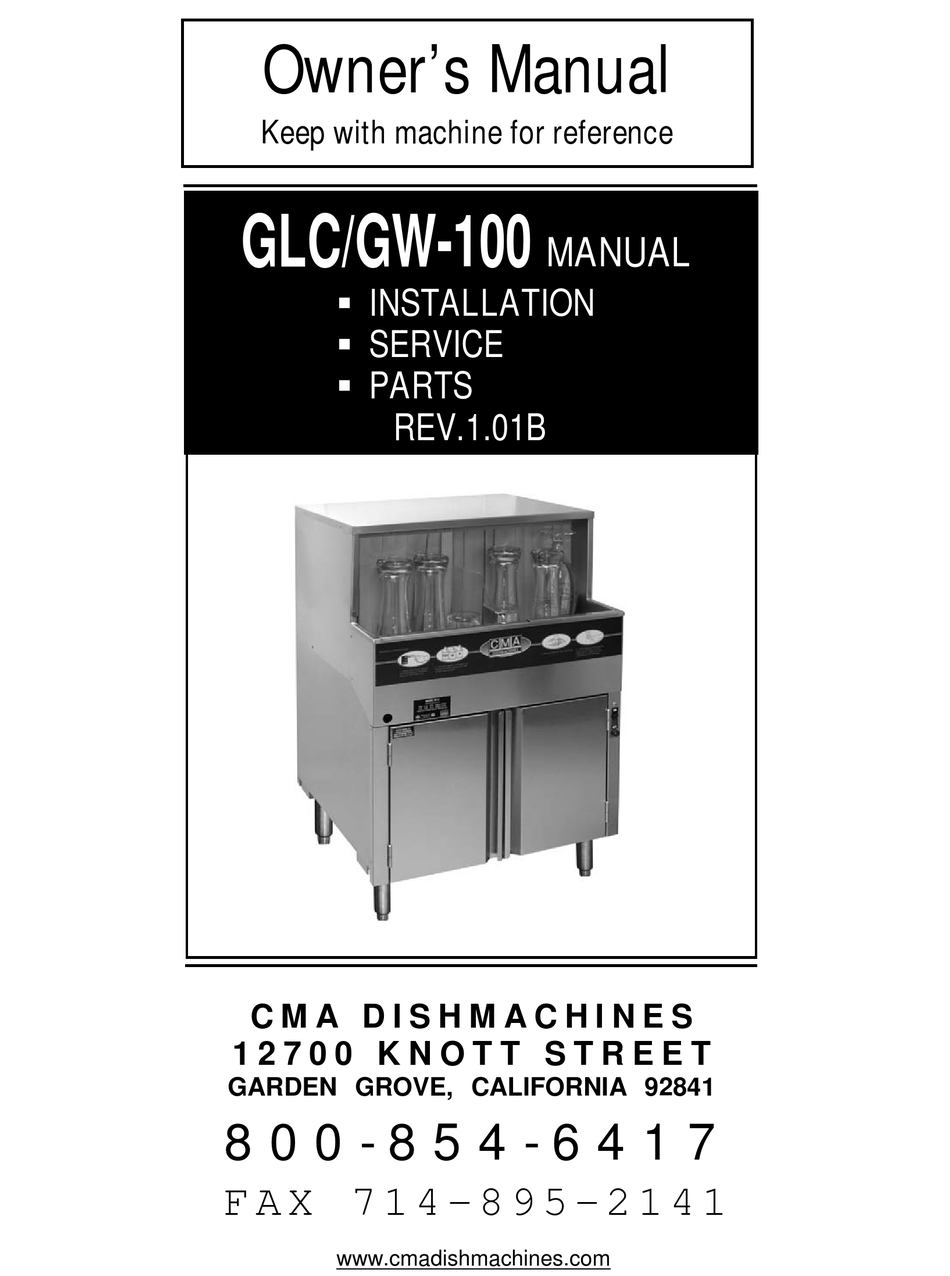

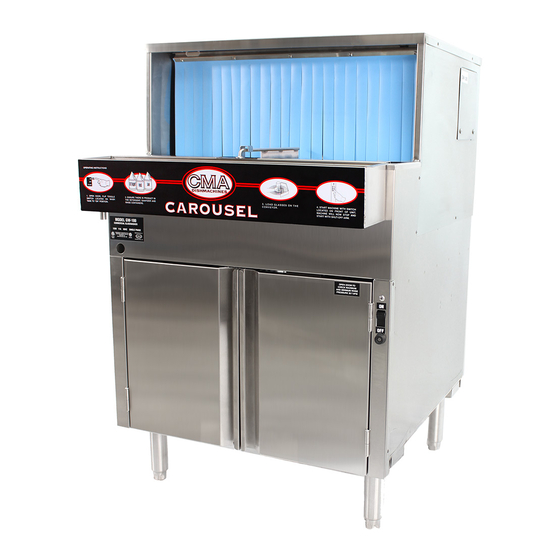

- Page 1 Owner’s Manual Keep with machine for reference GLC/GW-100 MANUAL INSTALLATION SERVICE PARTS REV.1.01B C M A D I S H M A C H I N E S 1 2 7 0 0 K N O T T S T R E E T...
-
Page 2: Table Of Contents
6.2.1. Main Assembly ..........................12 6.2.2. Conveyor Wheel / Curtain ......................13 6.2.3. Conveyor Shut-Off Rod Assembly ....................14 6.2.4. GLC Control Box Assembly P/N 18612.49 ..................15 6.2.5. GW-100 Control Box Assembly P/N 18611.47 ................16 6.2.5. Soap Tank Assembly ........................17 6.2.6. Water Inlet Plumbing ........................18 6.2.7. - Page 3 7. GLC ELECTRICAL DIAGRAM ..............24 8. GW-100 ELECTRICAL DIAGRAM .............. 25...
-
Page 4: Model Glc/Gw-100
3. Check for the following component parts: A. Check that the rinse screen is secure in the rinse drain. B. Check the position of the GLC curtains. C. Check that the conveyor is level and the drive gear is engaged in the conveyor’s outer rim grooves. -
Page 5: Specifications
Specifications 2. Specifications 2.1. WATER CONSUMPTION HOT WATER INITIAL FILL 3 GAL. 11.35 L. HOT WATER PER HOUR (max) 12 GAL. 45.42 L. COLD WATER PER HOUR 168 GAL. 636 L. OPERATING CAPACITY (2-1/2”) GLASSES PER HOUR 1000 WATER REQUIREMENTS COLD WATER INLET 1/2”... -
Page 6: Gw-100
Specifications 2.2. GW-100 WATER CONSUMPTION HOT WATER INITIAL FILL 3 GAL. 11.35 L. HOT WATER PER HOUR (max) 12 GAL. 45.42 L. COLD WATER PER HOUR 168 GAL. 636 L. OPERATING CAPACITY (2-1/2”) GLASSES PER HOUR 1000 WATER REQUIREMENTS COLD WATER INLET 1/2”... -
Page 7: Installation
Electrical GLC - a 20 Amp, 208-240 Volt, 60 Hz dedicated circuit should be used to supply electrical power to the GL-C machine (see specification sheet page 3). The power connection with the leads L-1, L-2 and Ground must be such that there is sufficient length of flexible conduit to permit the machine to be moved for cleaning. -
Page 8: Operation
Operation 4. Operation 4.1. Filling of the Wash Tank • With overflow drain tube in place in the detergent tank proceed to following. • Turn power on-off/flush switch to the “ON” position. The water solenoid will activate and fill soap tank until the proper level is reached, also activating heating element. -
Page 9: Cleaning Instructions
4.3. Cleaning Instructions 4.3.1. Highly Recommended Daily Cleaning Instructions Remove optional GLC drain tray & waste collector from the front of your glasswasher and clean thoroughly. Turn power switch off behind front service door. Remove all trays, screens and curtains. Wash, rinse them thoroughly and allow to dry. -
Page 10: Troubleshooting
Replace pump motor or circuit defective board Soap tank continues to fill Leaking solenoid valve Inspect and clean seat with water with power off diaphragm. Replace diaphragm kit Install new valve Page MODEL GLC/GW-100 SERVICE & PARTS MANUAL Rev. 1.01 B... - Page 11 Clear and clean with cleaning drill, scraper, and brush Splash curtain not in position Install or adjust Machine in operation without any Operate machine with a full load of glasses on conveyor glasses Page MODEL GLC/GW-100 SERVICE & PARTS MANUAL Rev. 1.01 B...
-
Page 12: Parts Manual
All the parts included in this kit are unique to the GL-C glasswasher (except those with *). Page MODEL GLC/GW-100 SERVICE & PARTS MANUAL Rev. 1.01B... -
Page 13: Gw-100 Initial Parts Kit P/N 1100.49
All the parts included in this kit are unique to the GW-100 glasswasher (except those with *). Page MODEL GLC/GW-100 SERVICE & PARTS MANUAL Rev. 1.01 B... -
Page 14: Exploded View Drawings
16302.65 Front Pillar (Left Hand) 00860.01 Moisture Pad 10 x 23 * 16306.00 Left Door 00860.02 Moisture Pad 3 x 23 * *Not shown. 00860.03 Moisture Pad 10 x 12 * Page MODEL GLC/GW-100 SERVICE & PARTS MANUAL Rev. 1.01B... -
Page 15: Conveyor Wheel / Curtain
Conveyor Hub 2” taller 13703.47 Curtain 14750.00 Conveyor Turntable 16505.10 Curtain Clamp 16350.50 Tray- Left 00927.00 Nut, 8-32 16350.00 Tray- Right 00911.50 Screw, 8-32 x 3/8” 14750.10 Turntable Glide Block Page MODEL GLC/GW-100 SERVICE & PARTS MANUAL Rev. 1.01 B... -
Page 16: Conveyor Shut-Off Rod Assembly
Conveyor Shut Off Switch 00438.00 Snap Bushing Universal 875-11 04806.00 #10 Brass Washer 01001.00 Pan Head Screw 6-32 x 1" 16514.00 Conveyor Shut Off Switch Brack. 03814.10 10-32 Lock Star Washer Page MODEL GLC/GW-100 SERVICE & PARTS MANUAL Rev. 1.01 B... -
Page 17: Glc Control Box Assembly P/N 18612.49
Ice Cube Relay 220V,12A 00820.06 Circuit Board Stand off 00820.20 Circuit Board Connector 00820.07 Circuit Board Stand -off Cap Not shown 820.10 Circuit Board Spacer Large, and 821.11 Circuit Board Spacer Small Page MODEL GLC/GW-100 SERVICE & PARTS MANUAL Rev. 1.01 B... -
Page 18: Gw-100 Control Box Assembly P/N 18611.47
Circuit Board Spacer Large * 00821.21 Circuit Board Connector 00820.20 Circuit Board Connector * 00821.10 Transformer 120 V 00821.11 Circuit Board Spacer Small * 00815.00 Peri Pump Complete *Not shown Page MODEL GLC/GW-100 SERVICE & PARTS MANUAL Rev. 1.01 B... -
Page 19: Soap Tank Assembly
S/S Liquid Level Switch * *12A used in the machines built prior to March 2010.Both 12 and 12A must be pointed down (normally closed position) in order to function properly. Page MODEL GLC/GW-100 SERVICE & PARTS MANUAL Rev. 1.01 B... -
Page 20: Water Inlet Plumbing
Braided Hose 1/2" 41015.60 3/8" Solenoid Valve Coil 40019.00 Nipple Brass 3/8 x 2 1/2 40010.00 3/8” MPT Tee 40012.47 Adapter 3/8"FPT X 3/8" MIP 40017.00 1/2 x 3/8” FPT Reducer Page MODEL GLC/GW-100 SERVICE & PARTS MANUAL Rev. 1.01 B... -
Page 21: Sanitizer Plumbing Component Hardware
00425.54 Chemical Tubing White 41014.47 1/4”MxF Mini Ball Valve 16526.00 Gauge Bracket 13605.00 0-30 PSI Pressure Gauge 00924.00 Lock Washer, 1/4 40015.00 3/8 x 1/4" Reducer Bushing 00912.00 Nut, 1/4-20 Page MODEL GLC/GW-100 SERVICE & PARTS MANUAL Rev. 1.01 B... -
Page 22: Vacuum Breaker And Hardware
03106.45 1/2" I.D. Braided Hose 03624.25 1/2” Vacuum Breaker Bonnet 16410.00 Vacuum Breaker Support 2” taller 03623.00 1/2” Vacuum Breaker Repair Kit 40013.00 1/2 Barb x 1/2 MPT 90deg Ell Page MODEL GLC/GW-100 SERVICE & PARTS MANUAL Rev. 1.01 B... -
Page 23: Wash Pump Assembly
Seal Kit 13503.73 Pump O-Ring 03101.00 Hose Clamp # 16 1" 13503.74 Back Plate 03108.66 Transfer Hose 1” – 35” 13503.75 Motor 03108.65 Transfer Hose 1” – 3-1/2” 13503.76 Capacitor Page MODEL GLC/GW-100 SERVICE & PARTS MANUAL Rev. 1.01 B... -
Page 24: Conveyor Drive Assembly
VA Drain Motor Shaft Gasket 00810.47 Drive Motor 220V 16570.50 Drive Motor Housing 00810.49 Drive Motor 115V 00811.47 Extension Spring 16570.60 Drive Motor Housing Cover 00438.00 Snap Bushing Universal 875-11 Page MODEL GLC/GW-100 SERVICE & PARTS MANUAL Rev. 1.01 B... -
Page 25: Waste Collector Assy. P/N 16565.00
DESCRIPTION REQ’D 16562.00 Waste Collector Screen 16560.00 Waste Collector Tray 06231.47 Label 03106.51 Clear Vinyl Tubing 1/2” ID x 3/4”OD 00899.01 Cleaning Drill not shown 00899.02 Cleaning Brush not shown Page MODEL GLC/GW-100 SERVICE & PARTS MANUAL Rev. 1.01 B... - Page 26 Parts Manual 7. GLC Electrical Diagram Page MODEL GLC/GW-100 SERVICE & PARTS MANUAL Rev. 1.01 B...
- Page 27 Parts Manual 8. GW-100 Electrical Diagram Page MODEL GLC/GW-100 SERVICE & PARTS MANUAL Rev. 1.01 B...
