DM-TXRX-100-STR
The Crestron®
DM-TXRX-100-STR
H.264 streaming transmitter or receiver for use with a DigitalMedia™
system or other application.
In the Box
1

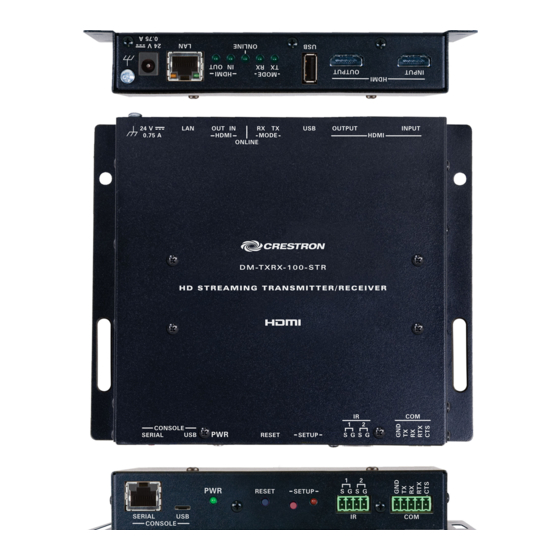

DM-TXRX-100-STR, HD Streaming Transmitter/Receiver
Additional Items
1
Connector, 4-Pin (2003576)
1
Connector, 5-Pin (2003577)
1
Power Pack, 24 VDC 0.75 A, 100-240 VAC (2045865)
Install the Device
The DM-TXRX-100-STR can be mounted onto a flat surface or onto a
rack rail.
provides a compact, high-definition
Mounting onto a Flat Surface
Using four mounting screws (not included), mount the device onto a flat
surface such as a wall or the underside of a table.
Mounting onto a Wall
Quick Start
1
Advertisement
Table of Contents
Related Manuals for Crestron DM-TXRX-100-STR
Summary of Contents for Crestron DM-TXRX-100-STR
- Page 1 In the Box DM-TXRX-100-STR, HD Streaming Transmitter/Receiver Additional Items Connector, 4-Pin (2003576) Connector, 5-Pin (2003577) Power Pack, 24 VDC 0.75 A, 100-240 VAC (2045865) Install the Device The DM-TXRX-100-STR can be mounted onto a flat surface or onto a rack rail.
- Page 2 Quick Start DM-TXRX-100-STR Mounting onto a Rack Rail Using two mounting screws (not included), mount the left or right Connect the Device mounting flange of the device onto the front or rear rail of a rack. Connect the device as required for the application.
- Page 3 The manual provides information about proper configuration of the network to support the DM-TXRX-100-STR. Configure the DM-TXRX-100-STR using the web interface. To access the web interface, open a web browser and then go to the IP address of the device.
- Page 4 Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.
