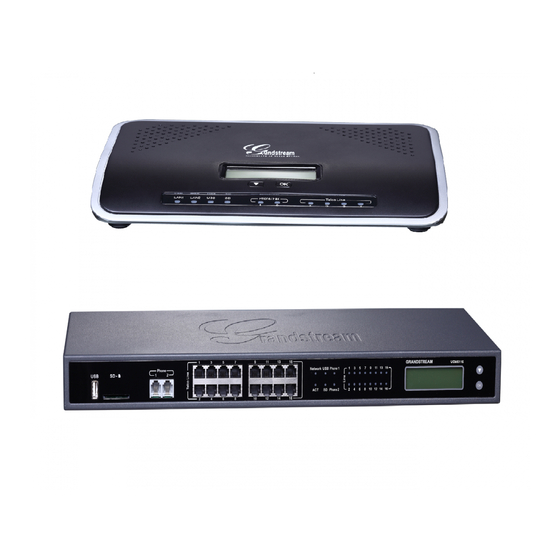

Grandstream Networks UCM6100 Series Configuring
Ucm6100 series with gxw410x
Hide thumbs
Also See for UCM6100 Series:
- User manual (418 pages) ,
- Manual manual (24 pages) ,
- Configuration (19 pages)
Subscribe to Our Youtube Channel
Related Manuals for Grandstream Networks UCM6100 Series
Summary of Contents for Grandstream Networks UCM6100 Series
- Page 1 Grandstream Networks, Inc. Configuring UCM6100 Series with GXW410X Grandstream Networks, Inc. www.grandstream.com...
-
Page 2: Table Of Contents
Reproduction or transmittal of the entire or any part, in any form or by any means, electronic or print, for any purpose without the express written permission of Grandstream Networks, Inc. is not permitted. Firmware Version 1.4.1.4 Configuring UCM6100 Series with GXW410X... -
Page 3: Overview
Please be aware of the security concerns when using this option. • When using the IVR in UCM6100 series, please be aware that if "Dial Trunk" option is turned on in IVR settings, the call into the IVR will be able to dial outbound call using UCM6100's trunk. The IVR's permission level will be used when making outbound calls in this case. -
Page 4: Connect Ucm6100 To Gxw410X Using Peer Sip Trunk
UCM6100. Also, you can assign the "Key Pressing Event" to different destinations. Figure 1: Method 2 - Create IVR 7200 on the UCM6100 Firmware Version 1.4.1.4 Configuring UCM6100 Series with GXW410X Page 3 of 18... -
Page 5: Create Peer Sip Trunk On Ucm6100
On the UCM6100 web GUI, go to PBX->Basic/Call Routes->Outbound Routes to create a new outbound rule. This would allow the extension on the UCM6100 to reach numbers in PSTN network via the peer SIP trunk we just configured. Firmware Version 1.4.1.4 Configuring UCM6100 Series with GXW410X Page 4 of 18... -
Page 6: Configure Inbound Rule On Ucm6100
On the UCM6100 web GUI, go to PBX->Basic/Call Routes->Inbound Routes to create a new inbound rule. In this example, we create the DID as 20000, which will be used in the GXW410X call forward setting. Firmware Version 1.4.1.4 Configuring UCM6100 Series with GXW410X Page 5 of 18... -
Page 7: Configure Fxo Port On Gxw410X
2. On the GXW410X web GUI, go to the Accounts page and insert the IP address of the UCM that you are peering with. In this example, the UCM6100 IP address is 192.168.40.207. Figure 5: Method 2 – Configure FXO Port on GXW410X: Registration Firmware Version 1.4.1.4 Configuring UCM6100 Series with GXW410X Page 6 of 18... -
Page 8: Figure 6: Method 2 - Configure Fxo Port On The Gxw410X: Dtmf Method
The default "Current Disconnect Threshold" is 100ms, but if you start experiencing dropped calls then you should raise this value by 100ms intervals. • If the PSTN disconnects using the tones method, then turn on "Enable PSTN Disconnect Tone Firmware Version 1.4.1.4 Configuring UCM6100 Series with GXW410X Page 7 of 18... -
Page 9: Configure Unconditional Call Forward On Gxw410X
"Unconditional Call Forward to VOIP" to the DID number 20000. This is the same number configured in UCM6100 inbound route dial pattern. In this example, we will use the SIP server for profile 1 (p1). Firmware Version 1.4.1.4 Configuring UCM6100 Series with GXW410X Page 8 of 18... -
Page 10: How To Dial
IVR of the UCM6100. The IVR on UCM6100 would allow the user to further enter extension number or key pressing digit to reach the desired destination. The inbound call will go through the inbound route set up on the UCM6100. Firmware Version 1.4.1.4 Configuring UCM6100 Series with GXW410X Page 9 of 18...
