Connect the LAN ports of all computers and the P-660 to a HUB using a straight
Ethernet cable.
2. TCP/IP configuration
Since the P-660 is set to DHCP server as default, so you need only to configure the
workstations as the DHCP clients in the networking settings. In this case, the IP
address of the computer is assigned by the P-660. The P-660 can also provide the

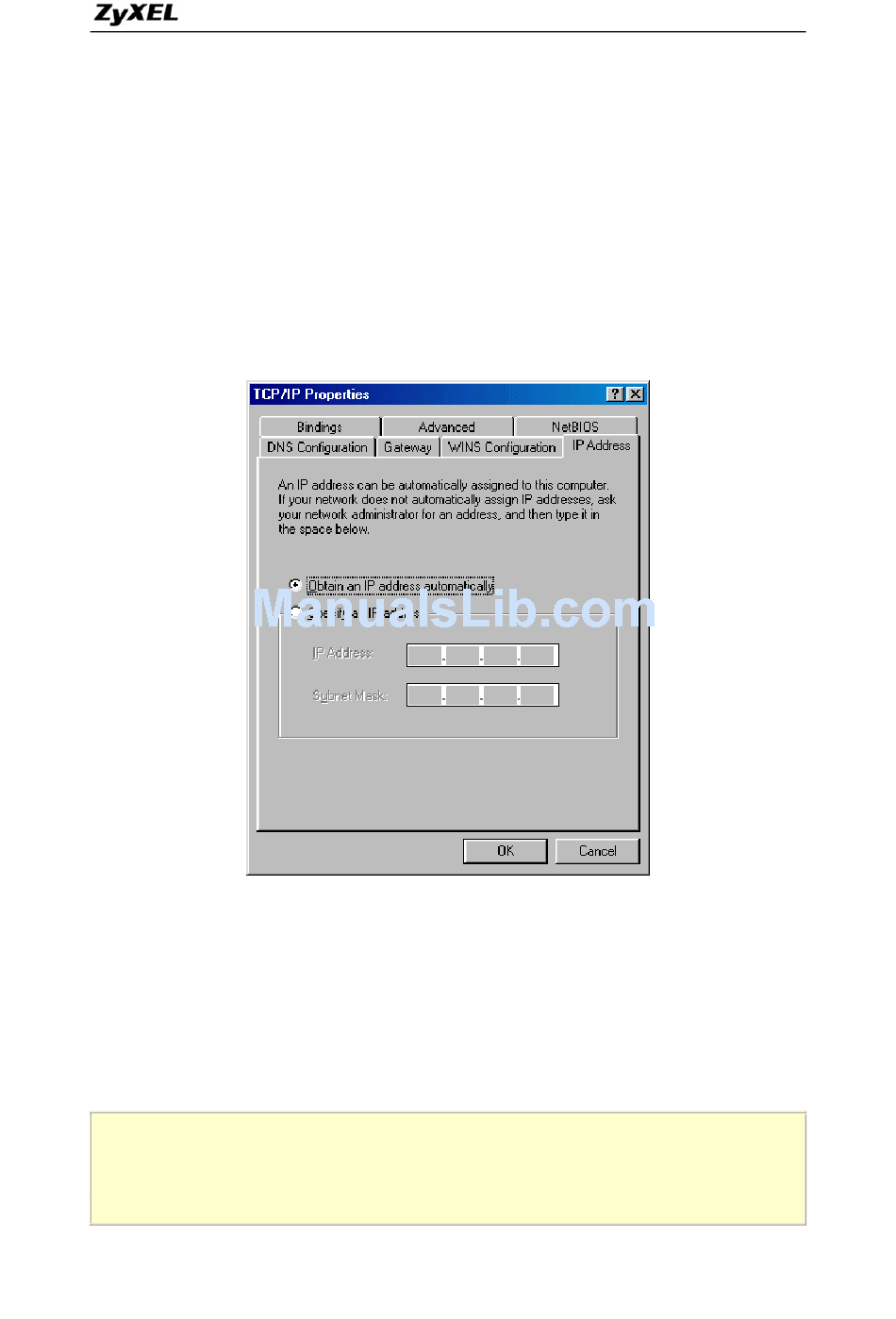

DNS to the clients via DHCP if it is available. For this setup in Windows, we check
the option 'Obtain an IP address automatically' in its TCP/IP setup. Please see the
example shown below.
S et up your P-660
The following procedure shows you how
routing traffic. We will use SMT menu to guide you th
can use console or Telnet for finishing these co
1. Configure P-660 as router mode in Menu 1
All contents copyright © 2005 ZyXEL Communications Corporation.
to configure your P-660 as Router mode for
nfigurations.
General Setup.
Menu 1– General Setup
System Name= P-660
Location=
P-660 series Support Notes
rough the related menu. You
