Configuring the 3C882 ISDN Modem for a PC 3-6
5 Click Finish.
The on-line registration dialog box appears. Enter your
information and then click Register Now.
After your information is received, the Configuration dialog
box appears, as shown in Figure 3-8.

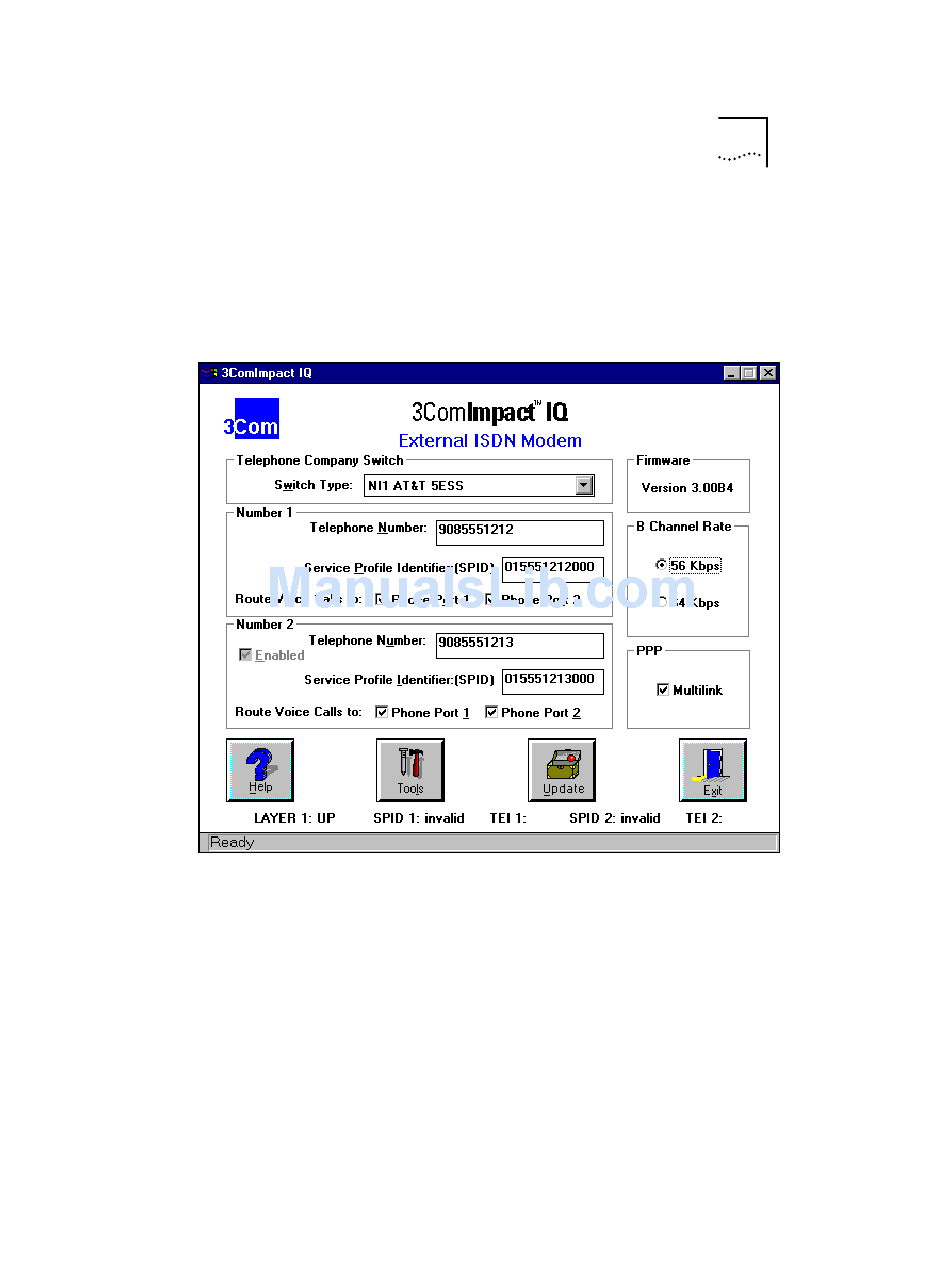

Figure 3-8 Configuration Dialog Box for PC
A message bar at the bottom of the dialog box provides status
information about the 3C882 ISDN modem.
The Configuration dialog box buttons do the following.
Help. Click the Help button to access help for the
Configuration dialog box. There is also comprehensive
on-line help accessible from the 3ComImpact IQ ISDN
modem program group box.
