Configuring the 3C882 ISDN Modem for a Macintosh Computer
One Telephone Number per Analog Device. If you have
two telephone numbers and two analog devices, you may
want one telephone number associated exclusively with just
an analog telephone and the other telephone number
associated with just a fax machine. In this example, shown in
Figure 4-15, calls to 908 555 1212 will only be routed to the
telephone.
N U
IS D
2
-2 3
R S
2
1
T
S E
R E
D C
9 V
X
M A
• 5 A
908 555 1212 908 555 1213

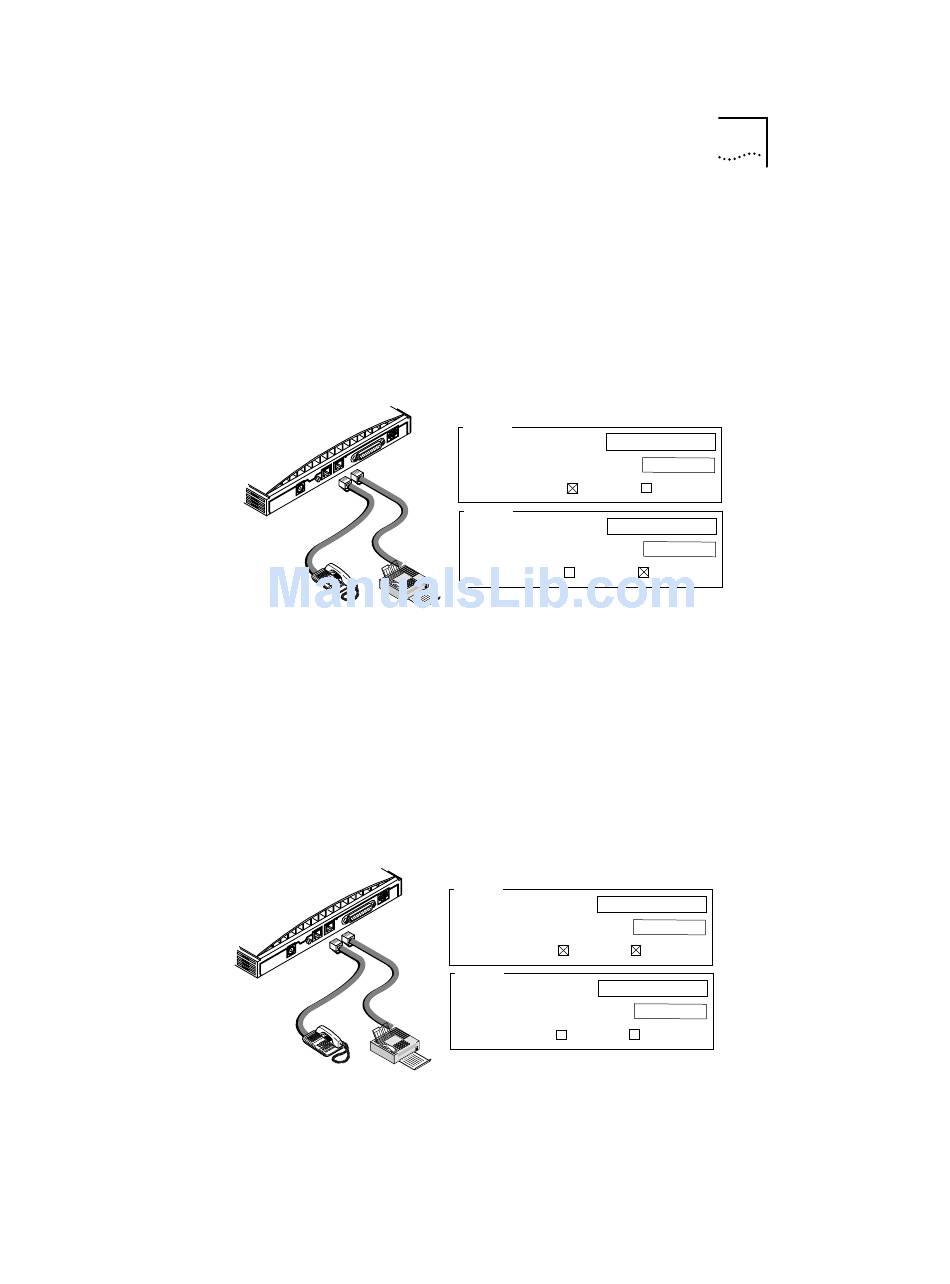

Figure 4-15 Configuration for One Telephone Number per Device
One Telephone Number and Two Analog Devices. If you
have only one telephone number for your ISDN line and two
analog devices, check the Phone Port 1 and Phone Port 2
boxes, as shown in Figure 4-16. Calls to that telephone
number will ring both devices allowing you to answer a call
using either one.
N U
IS D
2
-2 3
R S
2
1
T
S E
R E
D C
9 V
X
M A
• 5 A
908 555 1212 908 555 1212
Figure 4-16 Configuration for One Telephone Number & Two Devices
