Installing Analog Equipment

You can connect an analog touch-tone telephone,
answering machine, fax machine, or external analog modem
to the 3C882 ISDN modem.
You will need an RJ-11 to RJ-11 cable for each analog phone
port connection.
To install an analog device:
1 Insert one RJ-11 connector to a phone port labeled with a
telephone icon on the back of the ISDN modem as shown
in Figure 2-6.
9 V
M A
. 5 A

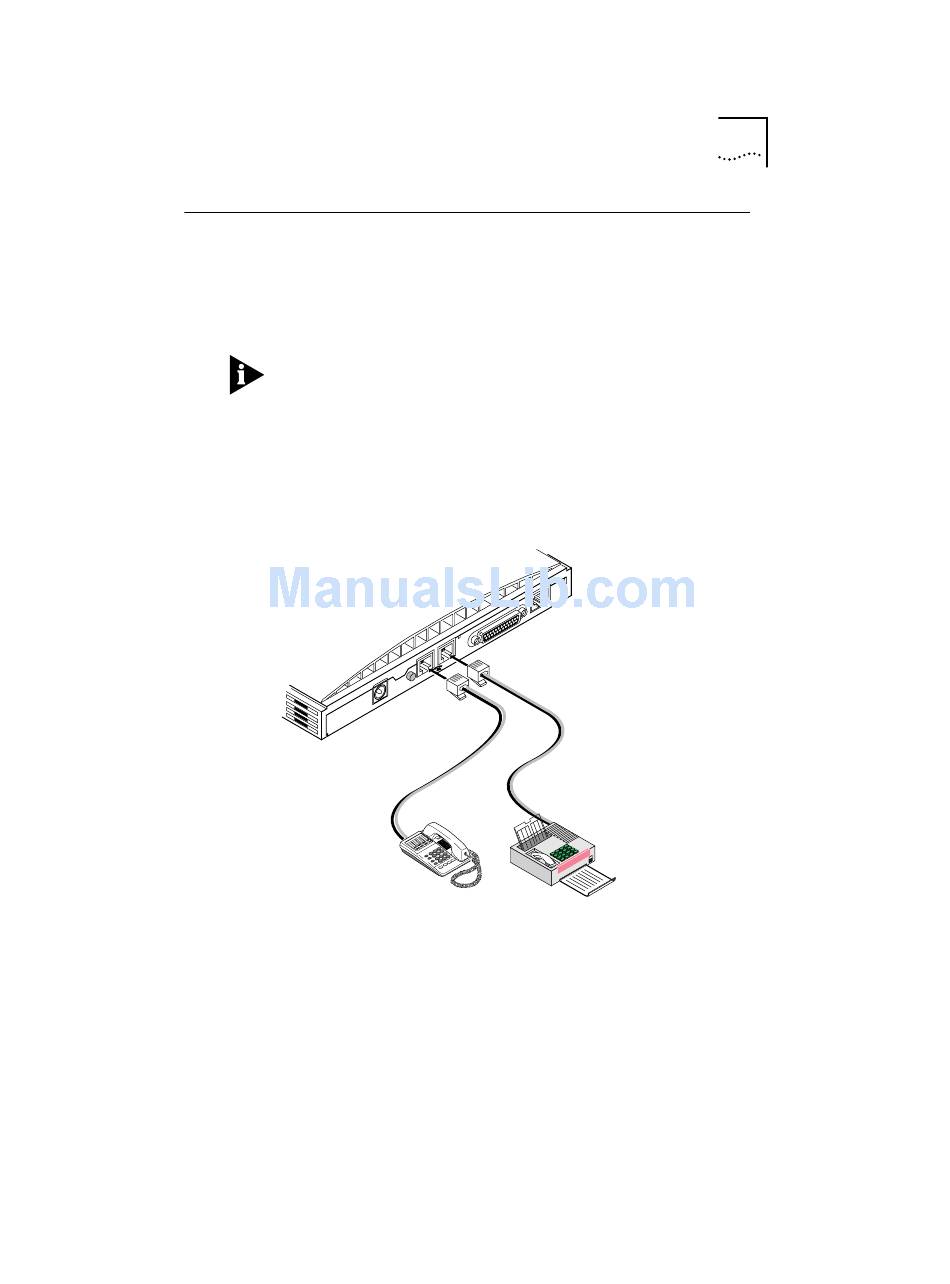

Figure 2-6 Analog Equipment Connection
2 Insert the other RJ-11 end into the appropriate RJ-11 port
on the analog device.
3 If you have another analog device to install, repeat steps 1
and 2.
Installing Analog Equipment
N U
I S D
2
- 2 3
R S
2
1
T
S E
R E
D C
X
2-6
